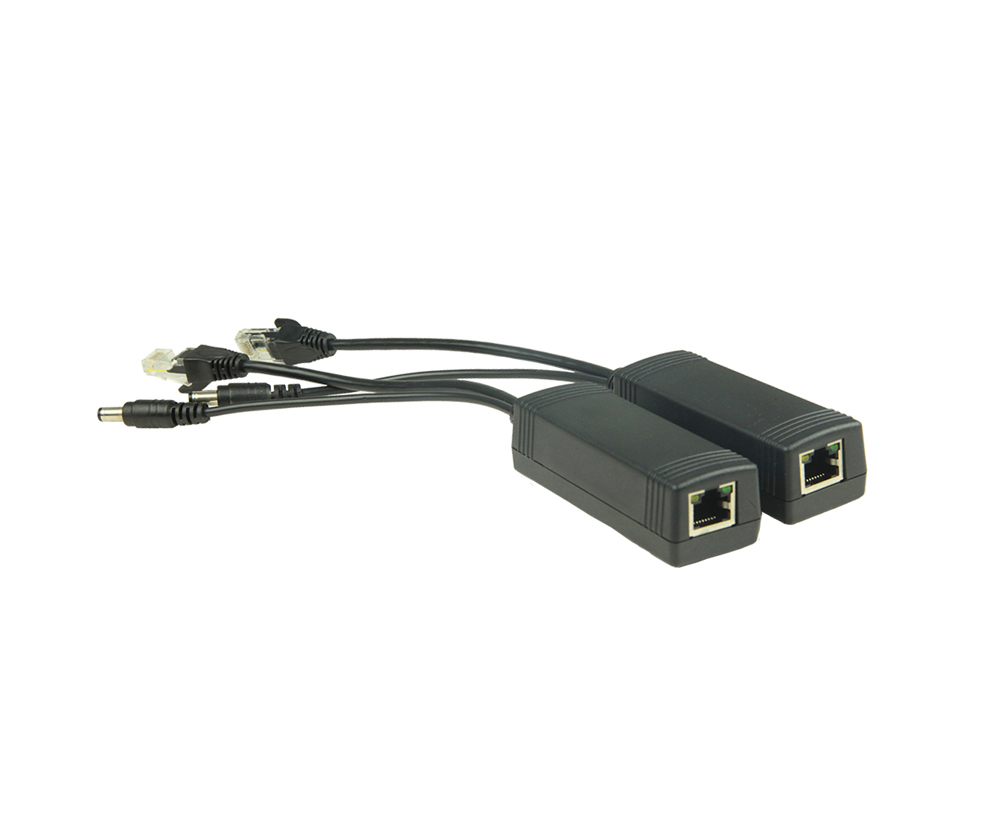

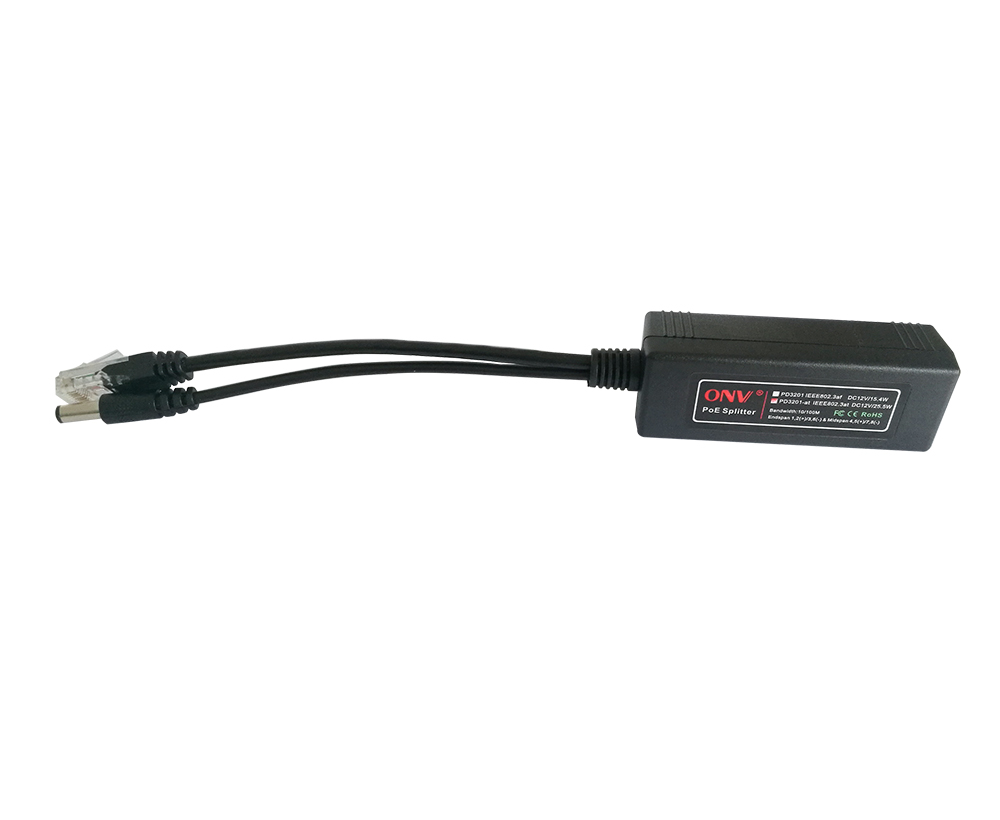

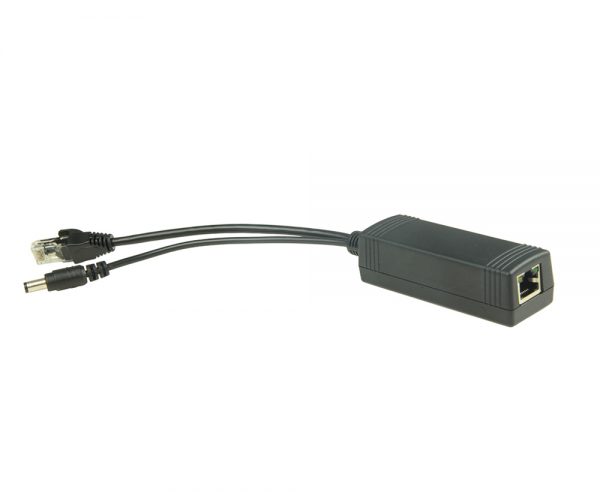

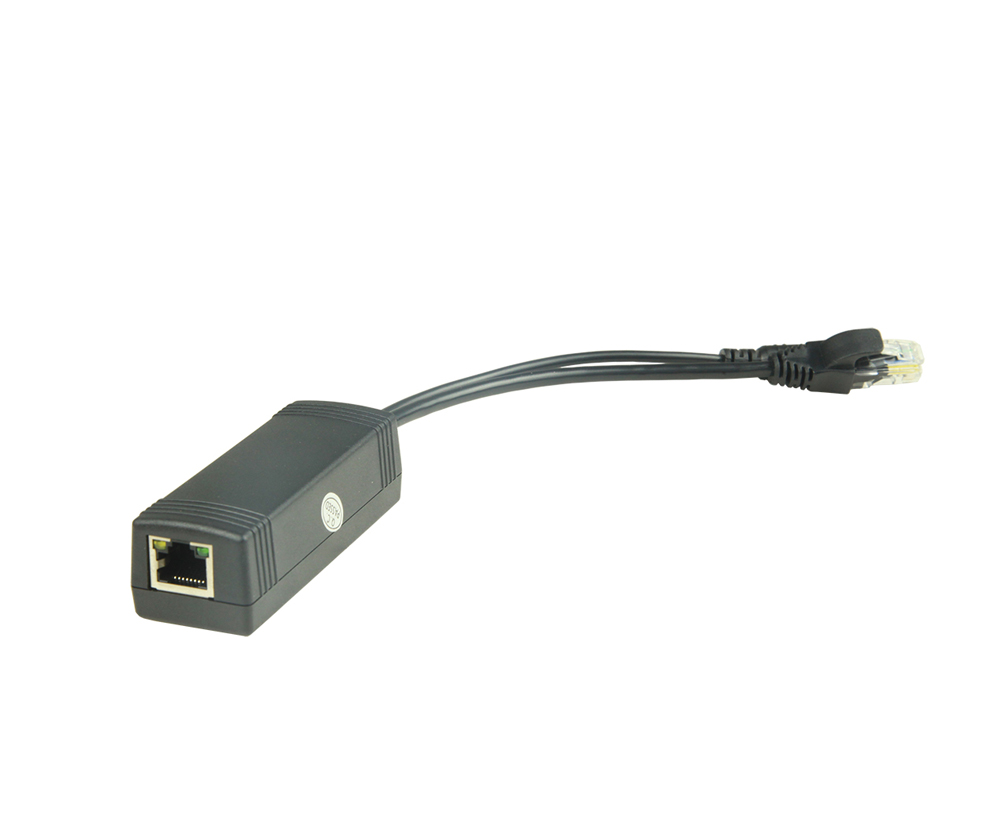

10/100M PoE splitter cable

OVERVIEW

ONV-PD5202, a cost-effective and high reliable remote PoE PD device based on standard IEEE802.3af/at, could split the power and data transmitted through cable. It could provide power and data to device without PoE function when connecting with a PoE Switch or PSE Injector. The output voltage is 12V, and equipped with PoE power supply device, it could flexibly expand the scale of Security Surveillance & Wireless Network without the limitation of power line layout.

With transformer isolated design for circuit input stage and output stage of the ONV-PD5202 power, it strengthens anti-jamming capability and protection for circuit. Also it effectively reduces PoE Switch Abnormal Power Supply Matters caused by common ground problem.Meeting the standard of IEEE802.3af/at. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 13W, low ripple, more than 82% high efficiency, Port Isolation Protection: 1500V and Protection for short circuit, over-current & over-temperature. With 1 to 2 design, it could be working with device that support external PoE, and it also simplifies effectively the project wiring and maintenance.

FEATURE

1x 10/100M RJ45 port+ 1*10/100M male output port+1*(5.5*2.1mm) DC output port

Support IEEE 802.3af/at Ethernet power standard

10/100M data transmission

Output voltage:12V(Default)

Circuit protection to protect the connected device

Top-quality design, stable and reliable

ORDERING INFORMATION

PACKING LIST
