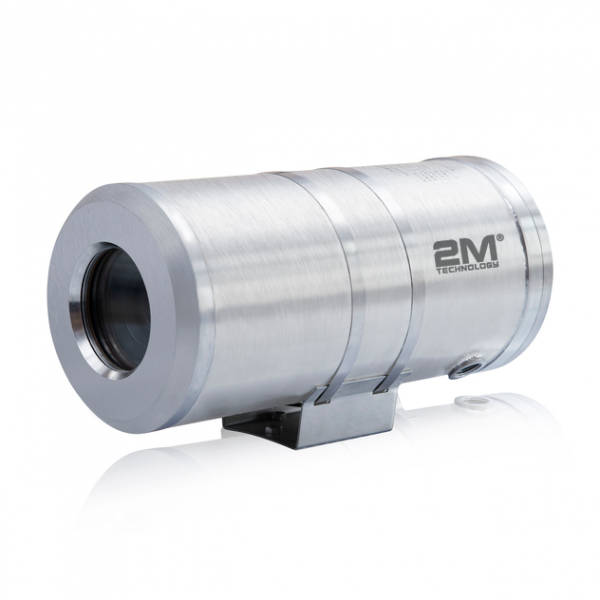

Camera 2MEAC16-IP4KZ 8MP IP Motorized Infrared Bullet Camera with Air Cooling Explosion Proof Camera Housing – 316L Stainless Steel

CERTIFICATES

Certificate Mark

ExdIIC T5 GB/DIP A20 TA, T5

MECHANICAL

Housing

Stainless steel 316L (also available in 304)

IP

IP68

Cable Thread Hole

2pcs G3/4 or NPT3/4

ELECTRICAL

Voltage

AC85V~AC265V or DC24V or AC24V

Power

15W

AMBIENT

Ambient Temperature

Air cooling -25°C – 50°C, [-13°F – 122°F]

Air Pressure

80Kpa to 106Kpa

Relative Humidity

≤95% (no condensation)

GENERAL

Size

374 x 163 x 185 (mm) 14.8″ x 6.4″ x 7.3″ (in)

Housing Inner Size

260 x 80 x 80 (mm) 10.2″ x 3.1″ x 3.1″ (in)

Weight

9.1kg (20.1 lbs)

Mounted

wall, pole

Wall Bracket

2MEWB04 (304); 2MEWB16 (316L)

CAMERA

Image Sensor

1/2″, 8.0 megapixel, progressive scan, CMOS

Lens

2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

DORI

Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63

25.2

12.6

6.3

12

270

108

54

27

Angle of View (H)

114.8° ~ 47.3°

Angle of View (V)

75.3° ~ 20.4°

Angle of View (O)

141.2° ~ 55.8°

Adjustment angle

Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Color: 0.003Lux (F1.5, AGC ON) 0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 50m (164ft) IR range

Defog

Digital Defog

WDR

120dB
