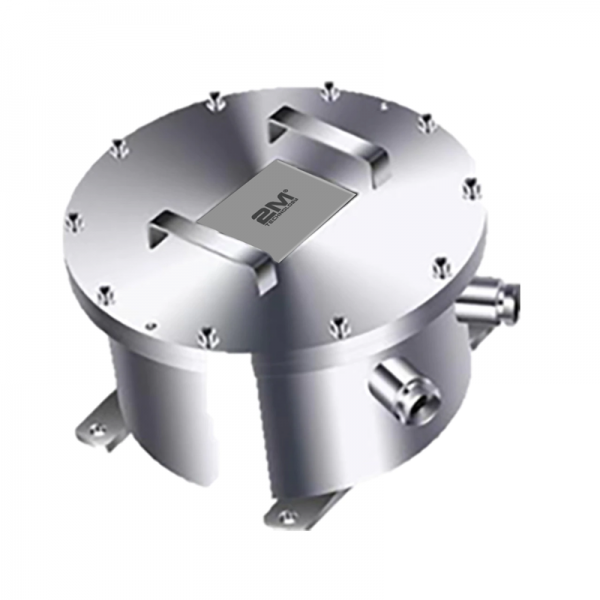

Camera 2MEB16 ATEX, IECEX Certified Explosion Proof Junction Box – 316L Stainless Steel
- 316L Stainless Steel
- Fit Zone Gas zone 1, 2 (IIA, IIB, IIC, T1-T6); dust zone 21, 22
- Inner Usable Size 230 x 230 x 120mm / 9 x 9 x 4.7″ (in) (L x W x H)
- Net Weight 13.2kg / 29.1lbs
| MECHANICAL | |
| Housing | Stainless steel 304 or 316L |
| IP | IP68 |
| Cable Thread hole | 4pcs M25 x 1.5, M27 x h1.25 |
| ELECTRICAL | |
| Voltage | AC100-240V (50/60Hz) |
| Power | 24V 3A |
| Surge Protect | 75W |
| Type | Signal mode fiber, SC |
| Network Transmit Mode | 10/100M support MDI/MDIX |
| Transmit Distance | 20KM / 12.4mi |
| Power | 3W |
| Data Channel | IEEE802.3x, collision base backpressure |
| Rated Voltage | 24VAC |
| Max Continues Working Voltage | 40VAC |
| Protect Level | 60V |
| Rated Load Current | 3A |
| Normal Discharge Current | 5KA |
| Max Discharge Current | 10KA |
| Protect Level for Video Signal | 8V |
| Rated Load Current | 500mA |
| Normal Discharge Current for Video Signal | 8KA |
| Max Discharge Current for Video | 12KA |
| Signal | 100Mbps |
| Transmit for Video Signal | <0.5dB |
Note: This is a special order camera. Allow 4-6 weeks for delivery.
| Weight | 29 lbs |
|---|---|
| Dimensions | 16.2 × 15.6 × 7.2 in |
| Stainless Steel Types |
316L |
