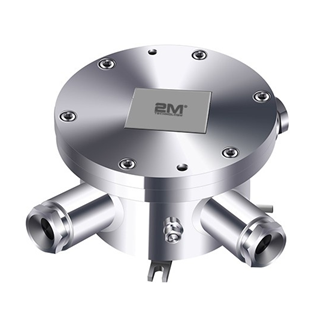

Camera 2MEJB04 Explosion Proof Junction Box – 304 Stainless Steel

CERTIFICATE

Certificate Mark

ExdII CT6 Gb/ Ex tD A21 IP68 T80°C

MECHANICAL

Housing

Stainless Steel 304

IP

IP68

Couple

Male part, female part

Cable Thread Holes

4pcs G3/4 or NPT3/4

ELECTRICAL

Voltage

AC85V~AC265V

Working Current

≤3A

Max Connection Port

20pcs terminal block

AMBIENT

Ambient temperature

-25°C to 60°C [-13°F to 140°F]

Air pressure

2kg [4.4 lbs]

Relative Humidity

80Kpa to 106Kpa

Relative Humidity

≤ 95% (no condensation)

GENERAL

Overall Size

Ø 187 x 84 (mm) [Ø 7.4″ x 3.3″ (in)]

Inner Size

Ø 100 x 75 (mm) [Ø 3.9″ x 3″ (in)]

Weight

3.5kg [7.7 lbs]
