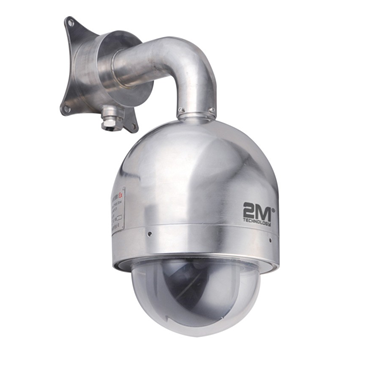

Camera 2MEP16 Stainless Steel Explosion proof Housing – 316L Stainless Steel

HOUSING

Atmospheric Pressure

80KPa ~ 106Kpa

Ambient Temperature

-25°C ~ 60°C [-4°F ~ 140°F]

Relative Humidity

< 95% (no condensation)

Ex-Proof Mark

Exd II CT6 Gb/ Ex tD A21 IP68 T80°C

MECHANICAL

Housing

Stainless Steel 316L (also available in 304)

Sunshade

Optional

IP

IP68

Cable Thread Hole

1pcs G3/4 or NPT3/4

ELECTRICAL

Voltage

AC24V (or AC85V~AC265V)

Power

25W/35W (with thermostat)

Surge Protection

Optional TVS6000V surge protect

AMBIENT

Ambient Temperature

-25°C to 60°C [-13°F to 140°F]

Air Pressure

80Kpa to 106Kpa

Relative Humidity

<95% (no condensation)

GENERAL

Cable

Integrated cable

Dimensions (LxWxH)

213 x 213 x 570(mm) [ 8.4″ x 8.4″ x 22.4″ (in)]

Weight

15kg [33.1lbs]

Mounted

Wall, Pole
