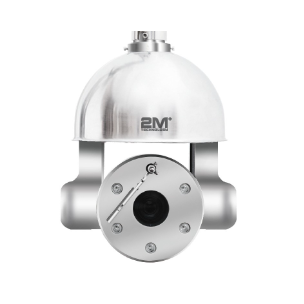

Camera 2MEPIR Network Explosion Proof PTZ Dome Infrared Camera with Wiper system

Certificate:

• Certificate Mark Ex d IIC T6 Gb/Ex tD A21 IP68 T80°C
• Certificate No CNEx19.1381X
• Standards Q/320412ZAF063-2018

Mechanical:

• Housing stainless steel 304 or 316L
• IP IP68
• Cable thread hole 1pcs M25 x 1.5, G3/4 or NPT3/4
• Wiper included

Electrical:

• Voltage AC85V – AC265V or AC24V
• Power 50W / 70W (with thermostat)

Ambient:

• Ambient temperature -25°to +60°C / -14°
  to 140°F
• Air pressure 80Kpa to 106Kpa
• Relative Humidity 95% (no condensation)

Lights:

• Light distance 150-200m / 492-656ft
• Light control Auto, according to zoom

Assistant:

• Communication support analog video output
• 485 Communication supports Pelco-D, Pelco-P
• Communicate rate 2400 to 19200bps

Pan and Tilt:

• Horizontal 360°
• Horizontal speed 0.1-45°/s
• Vertical -90° to +90°
• Supports cruise scan
• Supports keep watch
• Preset 64/128/255/300
• Supports resume function
• Supports auto cruise
• Supports auto scan

Optional Alarm:

• Alarm input 2-channel/ 7-channel
• Alarm output 1-channel, action with alarm
• Intelligent alarm audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Optional Audio:

• Audio input (LINE input, MIC input), audio peak: 2-2.4Vp-p, output impedance: 1KΩ+10%
• Audio output line-level impedance 600Ω

Network:

• Network interface 1pcs of RJ45, support 10M/100M/1000M
• Video compression H.265, H.264, MJPEG
• Audio compression G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726
• Supports voice Intercom
• Stream supports three streams
• Internet protocol IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP
• SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Supports time display
• Standard ONVIF, CGI, GB/T28181, PISA
• Supports IE browser IE7 or above, Google, Firefox, Apple
• Supports security password protection, multiple access control

General:

• Integrated cable
• Size 319 x 240 x 420mm / 12.5″ x 9.4″ x 16.5″ (in)
• Weight 22kg / 48lbs
• Wall mounted

Note: This is a special order camera. Allow 4-6 weeks for delivery.
