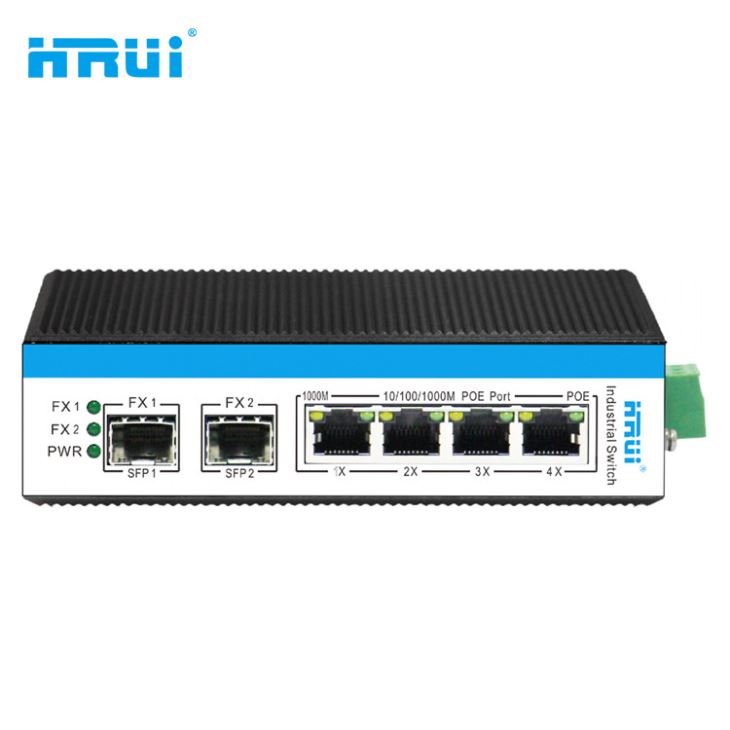

6 Ports Industrial Gigabit Ethernet POE Switch

6-Ports POE Switch With 4 * Gigabit POE Port + 2 *Gigabit SFP Uplink

Max. 15.4 watts (IEEE802.3af)

100BASE-TX:   Cat5 or later UTP(≤100 meter)

Single-mode: 1310nm, 20/40 Km

100M Packet Forwarding Rate:148800pps/port
MAC: 2K
MTBF: 100,000 hours

Power supply indicator: PWR

Type of input: 3 bits terminal   block

Storage temperature: -40～85℃

EMS: EN61000-4-2 (ESD)

Installation: DIN-Rail or Wall   mounts

Airport

Expressway

Petrochemical Industry

Power Systern

Urban Construction

Metro

Max. 30 watts (IEEE802.3at)

             1550nm, 60/80/100/120Km

PoE ACT indicator: LED-Yellow

No-load consumption: MAX 5W@   DC52V0.1A

Relative Humidity: 5%~95 %( no   condensation)

EN61000-4-4 (EFT)

HR500-AFG-411S Support 4*Gigabit POE Port +1*Gigabit Uplink Port +1*Gigabit SFP Port

HR600-AFG-822S Support 8*Gigabit POE Port +2*Gigabit Combo Port

PoE LINK indicator: LED-Green

Full-load consumption: MAX 65W@   DC52V1.25A (802.3af/at)

EN61000-4-5 (Surge)

Full-load consumption: MAX 104W@  DC52V2A (802.3af+)

Shock: IEC 60068-2-27

Full-load consumption: MAX 130W@ DC52V2.5A (802.3at)

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

●  Support 4 * Gigabit POE Port + 2 Gigabit SFP Uplink Support IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3af/at, store and forward

●  Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W)
