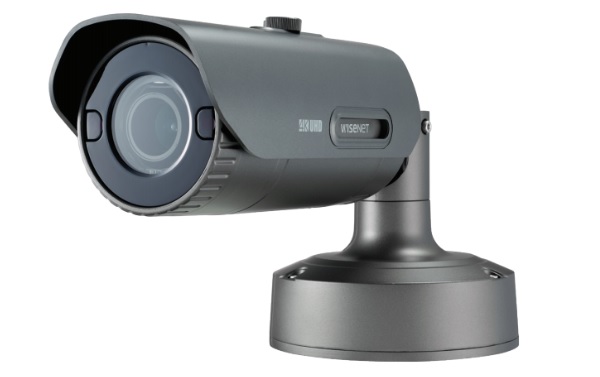

Camera IP 4K hồng ngoại 12 Megapixel Hanwha Techwin WISENET PNO-9080R/VAP

– Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP 4K hồng ngoại 12 Megapixel Hanwha Techwin WISENET PNO-9080R/VAP

– Cảm biến hình ảnh: 1/1.7 inch CMOS.

– Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.

– Độ nhạy sáng: 0.3Lux (1/30sec, F1.6, 30IRE) (Color), 0.01Lux (2sec, F1.6, 30IRE), B/W: 0Lux (IR LED on).

– Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lên đến 128GB.

– Ống kính camera ip: 4.5 ~ 10mm (motorized varifocal).

– Tỉ lệ Zoom: 2.2x.

– Hỗ trợ âm thanh: 2 chiều.

– Tầm quan sát hồng ngoại: 40 mét.

– Chức năng giảm nhiễu số 2D + 3D.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống sương mù Defog.

– Chức năng phát hiện chuyển động: Off / On (8ea, Polygonal)

– Chức năng vùng riêng tư: Off / On (16ea, Polygonal) – Color: Gray / Green / Red / Blue / Black / White.

– Chức năng Digital auto tracking.

– Chức năng Simple focus.

– Chức năng phát hiện đối tượng lảng vảng, bản đồ nhiệt, đếm người, quản lý xếp hàng, phát hiện giả mạo.

– Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).

– Chức năng giảm nhiễu số 2D + 3D.

– 1 kênh ngõ vào Audio, 1 kênh ngõ ra Audio.

– Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nguồn điện cung cấp: 24VAC.

– Chức năng cấp nguồn qua mạng PoE.

– Kích thước: 82.4 x 87.0 x 348.3mm.

– Trọng lượng: 1.4kg.

Đặc tính kỹ thuật

Video
Imaging Device	1/1.7 inch 12.4M CMOS
Total Pixels	4,168(H) x 3,062(V)
Effective Pixels	4,072(H) x 3,046(V)
Scanning System	Progressive
Min. Illumination	Color: 0.3Lux (1/30sec, F1.6, 30IRE), 0.01Lux (2sec, F1.6, 30IRE)
S / N Ratio	50dB
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 714 x 480(N), 702 x 576(P), for installation
Video Output	DIP connector type
Lens
Focal length (Zoom Ratio)	4.5 ~ 10mm (2.2x) motorized varifoca
Max. Aperture ratio	F1.6
Angular Field of View	[4096 x 2160] H : 100.3º (Wide) ~ 45.6º (Tele) / V: 49.7º(Wide) ~ 24.0º (Tele)
Angular Field of View	[3840 x 2160] H : 92.3º(Wide) ~ 42.6º(Tele) / V: 49.7º(Wide) ~ 24.0º(Tele)
Min. Object Distance	0.5m
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus
Lens Type / Mount Type	P-Iris mode / Board-in type
Operation
IR LED / Viewable Length	4ea / 40m
Camera Title	Off / On (Displayed up to 60 characters)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto scale by resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNR (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Motion Detection	Off / On (8ea, Polygonal)
Privacy Masking	Off / On (16ea, Polygonal) – Color : Gray / Green / Red / Blue / Black / White
Gain Control	Off / Low / Middle / High
Defog	Off / Auto / Manual
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror	Off / On, Hallway : 90° /270°
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection – Support metadata
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm input, Motion detection, Video analytics, Audio detection, Network disconnect
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	[8M mode] 4096 x 2160, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Resolution	[12M mode] 4000 x 3000, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Frame rate	H.265 / H.264: 20fps@4000 x 3000, 30fps@4096 x 2160
Max. Frame rate	MJPEG: 2fps@4000 x 3000 ~ 2592 x 1464, 15fps@1920 x 1080 ~ 320 x 240
Smart Codec / WiseStream	Smart Codec / WiseStream
Video Quality Adjustment	H.265 / H.264: Target bitrate level control, MJPEG: Quality level contro
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in) (Built-in mic)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack), Max output level: 1Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Edge Storage	SD/SDHC/SDXC (128GB) – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected,
Edge Storage	Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet Open Platform
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11. Plug-in free Webviewer
	– Supported Browser: Google Chrome 47, MS Edge 20. Plug-in Webviewer
	– Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only
Central Management Software	SmartViewer
Ingress Protection / Vandal Resistance	IP66/ IK10
ELECTRICAL
Input Voltage / Current	24VAC, 12VDC, PoE (IEEE802.3af, Class3)
Power Consumption	12VDC: Max. 11.55W, PoE: Max.12.95W, 24VAC (50/60Hz): 14.08W – Heater on
Power Consumption	12VDC: Max. 10.45W, PoE: Max.11.77W, 24VAC (50/60Hz): 12.43W – Heater off
Color / Material	Dark gray/ Aluminium
Dimensions	82.4 x 87.0 x 348.3mm (Without sunshield)
Weight	1.4kg

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
