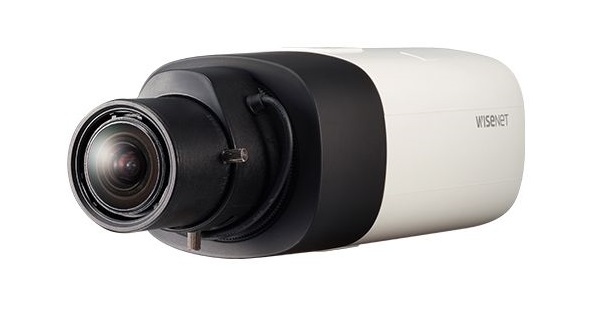

Camera IP 5.0 Megapixel Hanwha Techwin WISENET XNB-8000/VAP
– Cảm biến hình ảnh: 1/1.8 inch CMOS.
– Độ phân giải camera ip: 5.0 Megapixel.
– Độ nhạy sáng: 0.07Lux@F1.2 (Color), 0.007Lux@F1.2 (B/W).
– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
– Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lên đến 512GB.
– Hỗ trợ LDC (Lens Distortion Correction).
– Hỗ trợ âm thanh: 2 chiều.
– Chức năng quan sát Ngày và Đêm (ICR).
– Chức năng chống ngược sáng WDR (120dB).
– Chức năng P-Iris.
– Chức năng chống sương mù Defog.
– Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.
– Chức năng điều chỉnh độ lợi AGC.
– Chức năng ổn định hình ảnh số tích hợp với cảm ứng Gyro.
– Chức năng theo dõi chuyển động Auto Tracking.
– Chức năng thông minh: Tự động theo dõi, nhận diện khuân mặt, phát hiện đối tượng lảng vảng, bản đồ nhiệt, đếm người, quản lý xếp hàng, phát hiện can thiệp, giả mạo.
– Phân loại âm thanh (tiếng súng, tiếng kính vỡ, tiếng thét, tiếng nổ).
– Đa ngôn ngữ.
– Kết nối mạng: RJ45 (10/100Base-T).
– Nguồn điện: 24VAC, 12VDC.
– Công suất tiêu thụ: Tối đa 7.5W.
– Chức năng cấp nguồn qua mạng PoE.
– Kích thước: 73.1 x 66.6 x 147.8mm.
– Trọng lượng: 420g.
Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch CMOS
Effective Pixels	2,616(H) x 1,976(V)
Scanning System	Progressive
Min. Illumination	Color : 0.07Lux (F1.2, 1/30sec), B/W : 0.007Lux (F1.2, 1/30sec)
S / N Ratio	50dB
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Video Output	USB: Micro USB type B, 1280 x 720 for installation
Focus Control	Simple focus / Manual, Remote control via network, Button control (Manual, Simple focus)
Lens Type	Manual/ DC auto iris, P-Iris
Mount Type	C / CS
Operation
Camera Title	Off / On (Displayed up to 85 characters) – W/W: English / Numeric / Special characters – China: English / Numeric / Special / Chinese characters – Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On (Built-in Gyro sensor)
Motion Detection	Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking	Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control	Off / Low / Middle / High/ Manual
Defog	Off / Auto / Manual
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Contrast	Level adjusment
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror	Off / On, Hallway view : 90º/270º
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection – Support metadata
Alarm I/O	Input 1ea / Output 1ea
Remote Control Interface	RS-485
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ	24x, Digital PTZ (Preset, Group)
RS-485 Protocol	Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output
Pixel Counter	Support
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG
Resolution	2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Frame rate	H.265 / H.264: Max. 30fps at all resolutions, MJPEG: Max. 30fps
	MJPEG: Max. 15fps@1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
	Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 18
Smart Codec	Manual mode (Area-based: 5ea), Face detection mode
Video Quality Adjustment	H.264: Target bitrate level control, MJPEG: Quality level control
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in) (Built-in mic)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack), Max output level: 1Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Edge Storage	SD/SDHC/SDXC – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8, MAC OS X 10.7
	Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11).
	Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25).
	Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7). Mac OS X only
Central Management Software	SmartViewer, SSM
ELECTRICAL
Input Voltage / Current	24VAC ±10%, 12VDC ±10%, PoE (IEEE802.3af )
Power Consumption	Max. 7.5W (12VDC), Max. 8.5W (PoE), Max. 8.5W (24VAC)
Color / Material	Black, Ivory / Aluminium
Dimensions	73.1 x 66.6 x 147.8mm
Weight	420g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
