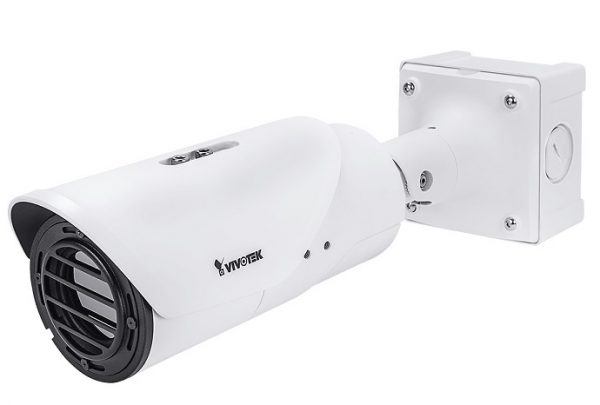

Camera IP cảm biến nhiệt hồng ngoại Vivotek TB9331-E (8.8/19mm)
– 720×480 Resolution
Camera IP cảm biến nhiệt hồng ngoại Vivotek TB9331-E (8.8/19mm)
– Uncooled VOx Infrared Detector
– 720×480 Resolution
– NETD < 50 mk @ F1.0
– H.265 Compression Technology
– Trend Micro IoT Security
– Two-way Audio
– Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
– UL Certification
– Weather-proof IP66/IP67, Vandal-proof IK10 and NEMA 4X-rated Housing
– VIVOTEK VCA (Video Content Analysis) Support
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | Uncooled VOx infrared detector |
| Max. Resolution | Effective pixels: 384×256 Image scale up to: 960×640 |
| Pixel Size | 17 µm |
| Spectral Range | 8 ~ 14 µm |
| Sensitivity | NETD < 50 mk |
| Lens Type | Fixed-focal (Thermal Lens) |
| Focal Length | TB9330-E (8.8mm): f = 8.8 mm |
| TB9330-E (19mm): f = 19 mm | |
| Aperture | F1.0 |
| Auto-iris | Fixed-iris |
| Field of View |
TB9331-E(8.8mm): 69.6° (Horizontal) 49.7° (Vertical) 79.8° (Diagonal) TB9331-E(19mm): 35.7° (Horizontal) 24.2° (Vertical) 42.3° (Diagonal) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 20x digital zoom (4x on IE plug-in, 5x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 384×256 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 50 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream II |
| Image Settings | Timestamp, text overlay, flip & mirror, configurable brightness, contrast, sharpness |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| VCA | Line crossing detection, field detection, loitering detection |
| VADP Package | Genetec package, Trend Micro IoT Security, Stratocast |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (block brute force attack, block cyberattack, quarantine event) |
| Alarm Events | Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection Audio input Audio output DC 12V power input AC 24V power input Digital input*1 Digital output*1 BNC RS485 |
| LED Indicator | System power and status indicator |
| Power Input | DC12V AC24V (Redundant Power) IEEE 802.3at PoE Class 4 |
| Power Consumption | PoE: Max. 14 W DC 12V: Max. 11 W AC 24V: Max. 12.4 W |
| Dimensions | TB9330-E (8.8mm): 121 x 121 x 471.2 mm (with junction box) |
| TB9330-E (19mm): 121 x 121 x 452.2 mm (with junction box) | |
| Weight | TB9330-E (8.8mm): 2,080 g |
| TB9330-E (19mm): 2,000 g | |
| Casing | IP66, IP67, IK10 (Metal Housing), NEMA 4X |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4 |
| Working temperature | -50°C ~ 60°C (-58°F ~ 140°F) |
| Humidity | 90% |
| Casing | IP66, IP67, IK10 (Metal Housing) |
– Bảo hành: 36 tháng.
