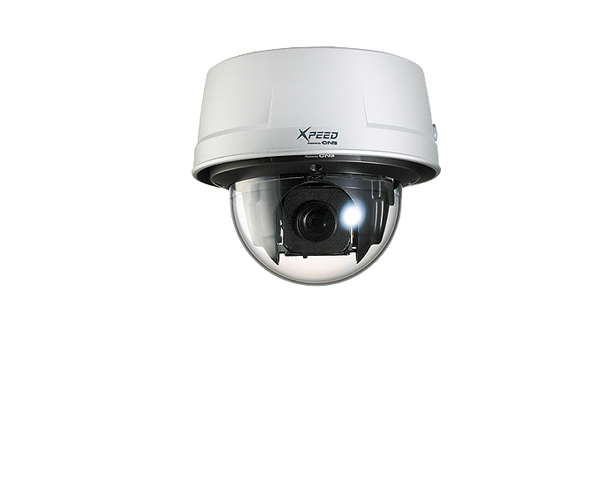

Camera IP CNB NP24-1P10H

Model

NP24-1P10H

[Camera]

Image Sensor

1/3 Inch Progressive scan 2Mega CMOS

Effective Pixels

1944(H) X1092(V)

Scanning System

Progressive scan

S/N Ratio

More than 50dB(AGC Off)

Lens

Optical x10, Digital x12 Zoom 5.1(W)mm~51(T)mm, F1.6(W)~F1.8(T)

Angular of View

Diagonal 68˚(W)~ 6.7˚(T)

Min illumination

Dark Hunter Max -0.0005 Lux

[Pan/Tilt]

Panning/Tilting Ratio

Pan: 360˚ endless rotation; Tilt: 90˚

Panning/Tilting Speed

Manual: 0.1˚ ~ 360˚/sec (Zoom Proportional)

Preset

127 position with Labels

Auto-scan / Pattern / Tour

8 Swings, 4 Patterns, 8 groups

Auto Flip

On/Off (Flips the image when the Tilt angle goes over 90˚)

Power-up Action

Resume the last action executed (Preset, Auto-scan, Tour)

[Function]

AGC

Support

Flickerless

Support (On/Off)

Shutter speed

Max 1/10,000

White Balance

Auto indoor / Auto Outdoor / Manual

Dark Hunter

Off, x2~x32

Backlight Compensation

BLC / WDR / ELC

WDR Range

100~120db

DNR

3DNR + 2DNR

Day & Night

Auto(ICR)/ Day / Night

PRIVACY

8 Support

Digital Zoom

On/Off (max. x12)

Factory reset

Support

[Interface]

LAN

RJ-45(10/100BaseT), Auto MDIX

Alarm

1 Sensor input, 1 Relay output

Audio

1 Mic Line input, 1 Line Output

[Network]

Video Compression

Multi-Coded(H.265 / H.264 / MJPEG)

Max Resolution

1920 x 1080@60fps

Multi-Profile Streaming

4 simultaneous video profiles

Intelligent Bit-Rate Control

VBR, CBR

Motion detection

3 regions

Audio Communication

Two-way Communication

Mono Upstream

32Kbps G.726 ADPCM

64Kbps 16bit μ-law PCM (MIC / Line-in)

Mono Downstream

64Kbps G.71116bit μ-law PCM(Line-out)

IP(Internet Protocol)

IPv4

Network Protocol

IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS

Dynamic IP

Support

Security

-User ID & Password protection

-IP address filtering

-Digest Authentication

-User Access Log

Streaming method

-RTSP streaming with proprietary formatfor control informations

-Standard RTSP streaming

-HTTP streaming

-Onvif Profile-S

Intelligent Video

Motion Detection

Alarm Triggers

Intelligent Video + Sensor Input

Alarm Events

Video file upload(FTP), Still Image(Email), Relay output

Alarm Buffer(Audio/Video)

configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)

Client Software

NVR2, Smart App(Android, iOS)

[General]

Operating Temperature

-10℃~ 50℃

Operating Humidity

0 ~ 80% RH

Power

DC12V, Max. 1.0A, IEEE802.3at PoE+

Dimensions (Øx H)

Ø146 x 140mm(With Sunshield)

Ø167.9 x 144.5mm(With Sunshield)

Material / IP Ratio

AL, PC / IP66

Weight

Approx. 2kg
