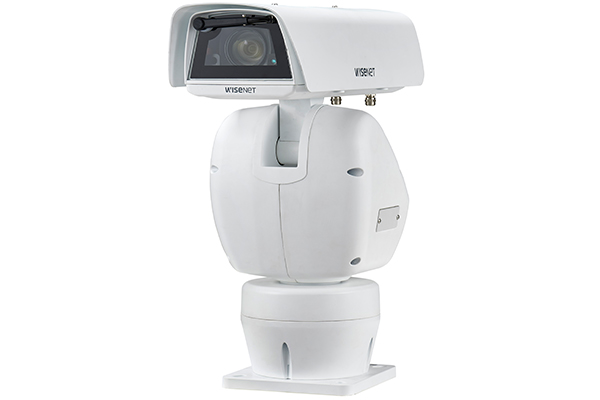

Camera IP định vị 2.0 Megapixel Hanwha Techwin WISENET TNU-6320

– Độ phân giải: 2.0 Megapixel.

Mã: TNU-6320 Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP định vị 2.0 Megapixel Hanwha Techwin WISENET TNU-6320

– Cảm biến hình ảnh: 1/2.8 inch 2MP CMOS.

– Độ phân giải: 2.0 Megapixel.

– Độ nhạy sáng: Color: 0.3Lux (F1.6, 1/30sec), B/W: 0.03 Lux (F1.6, 1/30sec).

– Ống kính: 4.44 ~ 142.6mm (32x) varifocal lens.

– Góc quan sát: H: 62.8˚ (Wide)~2.23˚ (Tele) / V: 36.8˚ (Wide)~1.26˚ (Tele).

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng giảm nhiễu số SSNRIII (2D+3D Noise Filter).

– Chức năng ổn định hình ảnh số Digital Image Stabilization.

– Chức năng chống sương mù Defog.

– Chức năng điều chỉnh độ lợi AGC.

– Chức năng LDC.

– Ethernet: RJ-45(10/100BASE-T).

– Hỗ trợ hệ điều hành: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11, 10.12.

– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Nguồn điện: 24VAC.

– Kích thước: 219 × 528.2 × 460mm.

– Trọng lượng: 14kg.

Đặc tính kỹ thuật

Model	TNU-6320
Video
Imaging Device	1/2.8 inch 2MP CMOS
Resolution	1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×450, 720×576, 640×480, 640×360, 320×240, 320×180
Max. Frame rate	Color: 0.3Lux (F1.6, 1/30sec) B/W: 0.03 Lux (F1.6, 1/30sec)
Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation
Lens
Focal Length (Zoom Ratio)	4.44~142.6mm(32x) zoom
Max. Aperture Ratio	F1.6(Wide)~F4.4(Tele)
Angular Field of View	H: 62.8˚(Wide)~2.23˚(Tele) / V: 36.8˚(Wide)~1.26˚(Tele)
Min. Object Distance	1.5m(4.92ft)
Focus Control	Auto / Manual / One Pus
Lens Type	DC auto iris, P iris
Pan / Tilt / Rotate
Pan Range	360˚ Endless
Pan Speed	0.036°~120°/sec
Tilt Range	-90˚~40˚
Tilt Speed	0.012°~ 40°/sec
Sequence	Preset(255ea), Swing, Group(6ea), Trace, Tour(1ea), Auto Run, Schedule
Preset Accuracy	±0.3˚
Operational
Camera Title	Displayed up to 45 characters
Day & Night	Auto(ICR)
Backlight Compensation	BLC, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNRIII (2D+3D Noise Filter)
Digital Image Stabilization	Support
Defog	Support
Motion Detection	8ea, rectangular zones
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor / Mercury
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Analytics	Motion detection, Face detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP, E-Mail Notification via E-Mail, TCP and HTTP NAS recording at Alarm Triggers External output Preset
Audio In	Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level: 1Vrms
IR Illuminator (Optional)	Support
Network
Ethernet	RJ-45(10/100BASE-T)
Video Compression	H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec	Manual mode(Area-based : 5ea), Face detection mode
Bit rate Control	H.264: CBR or VBR MJPEG: VBR
Streaming	Unicast(10 users) / Multicast
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
Application Programming Interface	ONVIF Profile S SUNAPI 2.0 SVNP 1.2 WiseNet Open Platform
General
Web Viewer	Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11, 10.12 Plug-in Free Webviewer Supported Browser : Google Chrome 54, MS Edge 30, Mozilla Firefox 49(Windows 64bit only), Apple Safari9(Mac OS X only) Plug-in Webviewer Supported Browser : MS Explorer 11, Apple Safari 9(Mac OS X only)
Edge Storage	Micro SD/SDHC/SDXC 1slot
Environmental & Electrical
Color / Material	White / Aluminum
RAL Code	RAL9003
Dimensions	219(W)×528.2(H)×460(D)mm
Weight	14kg

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
