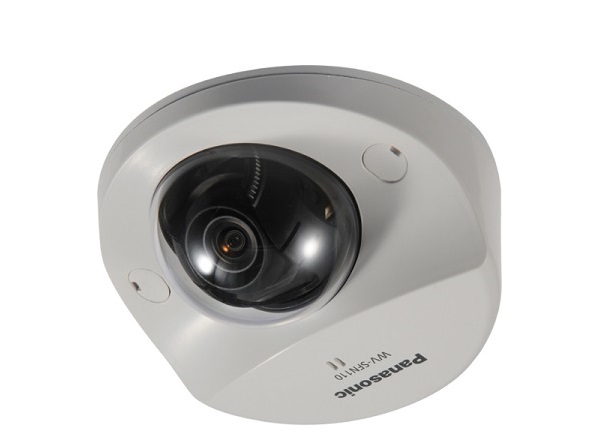

Camera IP Dome 1.3 Megapixel PANASONIC WV-SFN110
– Độ phân giải camera ip: 1.3 Megapixel.
Camera IP Dome 1.3 Megapixel PANASONIC WV-SFN110
– Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
– Độ phân giải camera ip: 1.3 Megapixel.
– Tốc độ khung hình: Lên đến 30 fps.
– Ống kính: 2.8mm.
– Độ nhạy sáng tối thiểu: Color: 0.04 x, BW: 0.03lx.
– Chuẩn nén hình ảnh: H.264/JPEG.
– Nhiệt độ hoạt động: 0°C to 40°C.
– Nguồn điện: PoE (IEEE802.3af compliant) 48VDC: 90 mA/Approx. 4.3W (Class 2 device).
Đặc tính kỹ thuật
| Model | WV-SFN110 |
| Camera | |
| Image Sensor | Approx. 1/3 type MOS image sensor |
| Scanning Mode | Progressive |
| Scanning Area | 4.86 mm (H) x 3.65 mm (V) {3/16 inches (H) x 5/32 inches (V)} |
| Minimum Illumination | Color: 0.04 lx (F2.3, Maximum shutter: Off (1/30s), AGC: High) 0.003 lx (F2.3, Maximum shutter: Max. 16/30s, AGC: High) BW: 0.03 lx (F2.3, Maximum shutter: Off (1/30s), AGC: High) 0.002 lx (F2.3, Maximum shutter: Max. 16/30s, AGC: High) |
| White Balance | WC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
| Light Control Mode | ELC/ Indoor scene 50 Hz/ Indoor scene 60 Hz |
| Super Dynamic | On (High)/ On (Normal)/ Off |
| Dynamic range | 122 dB typ. (Super Dynamic: On) |
| Face Super Dynamic | On/ Off (only when Super Dynamic: On) |
| Adaptive Black Stretch | On/ Off (only when Super Dynamic: Off) |
| Back light compensation (BLC) | On/ Off (only when Super Dynamic: Off) |
| Fog compensation | On/ Off (only when Super Dynamic/ Adaptive black stretch: Off) |
| High light compensation (HLC) | On/ Off (only when Super Dynamic/ Back light compensation (BLC): Off |
| AGC | On (High)/ On (Mid)/ On (Low)/ Off |
| Maximum shutter | max. 1/10,000 s, max. 1/4,000 s, max. 1/2,000 s, max. 1/1,000s, max. 1/500 s, max. 1/250 s, max. 1/120 s, max. 1/100 s, max. 2/120 s, max. 2/100 s, max. 3/120 s, max. 3/100 s, max. 1/30 s, max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s |
| Day/Night (Electrical) | Off / Auto |
| Digital Noise Reduction | High/ Low |
| Video Motion Detection | On/ Off, 4 areas available |
| Privacy Zone | On/ Off (up to 8 zones available) |
| VIQS | On/ Off (up to 8 zones available) |
| Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks), On/ Off |
| Lens | |
| Focal Length | 2.8 mm {1/8 inches} |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Zoom ratio | x1 2x Extra zoom |
| Angular Field of View | [16 : 9 mode] Horizontal: 100° Vertical: 55° [4 : 3 mode] Horizontal: 100° Vertical: 73° |
| Maximum aperture ratio | 1 : 2.3 |
| Focus Distance | 0.5 m – ∞ |
| Adjusting Angle | |
| Adjusting Angle | – Installing on a ceiling Horizontal: –20° to +20° Vertical: –20° to 0° (right under) to +90° (right beside) – Installing on a wall Horizontal: +90° to –90° Vertical: –20° to 0° (right beside) to +90° (right under) |
| Browser GUI | |
| Camera Control | Brightness |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H/Off, Date: 5 formats on the browser, Summer time (Manual) |
| One Shot Capture | A still picture will be displayed on a newly opened window |
| SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Chinese, Russian, Japanese |
| System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 10 Microsoft® Windows® 8.1 Microsoft® Windows® 8 Microsoft® Windows® 7 |
| Supported Browser | Windows® Internet Explorer® 11 (32 bit) Windows® Internet Explorer® 10 (32 bit) Windows® Internet Explorer® 9 (32 bit) Windows® Internet Explorer® 8 (32 bit) Safari*, Google Chrome*, Mozilla Firefox* * with limitations in the part of setting screen |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector (female) |
| Image Resolution H.264/JPEG | – 1.3 mega pixel [16 : 9]: 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 – 1.3 mega pixel [4 : 3]: 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 |
| H.264 | – Transmission Mode: Constant bit rate/ Variable bit rate/ Frame rate/ Advanced VBR – Image Quality: Low/ Normal/ Fine 0 Super fine/1 Fine/2/ 3/ 4/ 5 Normal/ 6/ 7/ 8/ 9 Low |
| JPEG | – Image Quality: 10 steps – Refresh Interval: 0.1 fps – 30 fps – Transmission Type: Pull/ Push |
| Cropping function | Off/ JPEG (1)/ JPEG (2)/ JPEG (3)/ H.264 (1)/ H.264 (2)/ H.264 (3)/ H.264 (4)/ H.264 (all) Alarm action On/ Off |
| Audio compression method | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps, AAC-LC 64 kbps, AAC-LC (HIGH QUALITY) 64 kbps/ 96 kbps/ 128 kbps |
| Bandwidth control | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps |
| Supported Protocol | – IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card(Option) | Manufactured by Panasonic (SD speed class 4 or higher) SDXC memory card: 64 GB, 128 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB SD memory card: 2 GB (except miniSD card and microSD card) |
| Cellular Phone Compatibility | JPEG image |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch(iOS 4.2.1 or later), Android mobile terminals |
| Alarm | |
| Alarm Source | VMD, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDXC/SDHC/SD memory card: 5,000 logs |
| Schedule | VMD |
| General | |
| Safety/EMC Standard |
UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 ClassA, ICES003 ClassA, EN55022 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) 48 VDC: 90 mA/ Approx. 4.3W (Class 2 device) |
| Ambient Operating Temperature | 0 °C to +40 °C {32 °F to 104 °F} |
| Ambient Operating Humidity | 10 % to 90 % (no condensation) |
| Built-in microphone | Nondirectional electret condenser microphone |
| Dimensions | ø104 mm × 47 mm (H) {ø4-3/32 inches x 1-27/32 inches (H)} Dome radius 54 mm {2-1/8 inches} |
| Mass (approx.) | Approx. 260 g {0.57 lbs} |
| Finish | Main body: ABS resin, sail white Dome cover: Acrylic resin, Clear |
– Xuất xứ: Trung Quốc.
– Bảo hành: 12 tháng.
