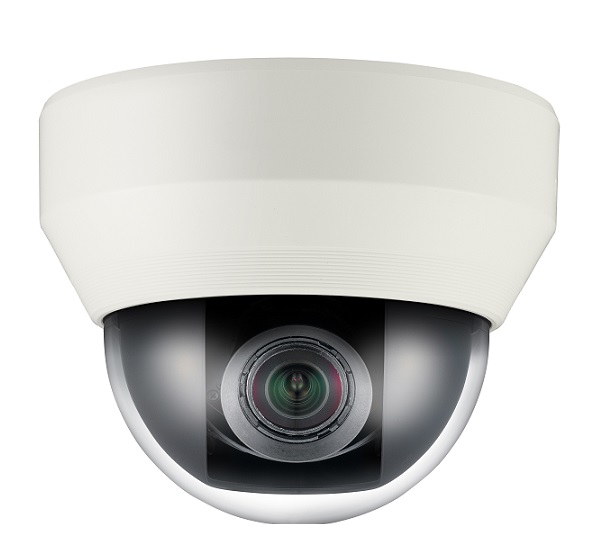

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET SND-6084

– Tốc độ khung hình: 60fps @ 1080P Full HD.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET SND-6084

– Độ phân giải camera ip: 2.0 Megapixel (1920×1080).

– Tốc độ khung hình: 60fps @ 1080P Full HD.

– Ống kính varifocal có động cơ 3 ~ 8,5mm (2,8x).

– Lấy nét đơn giản.

– Chức năng quan sát Ngày & Đêm thật (ICR).

– Chức năng chống sương mù Defog.

– Chức năng chống ngược sáng WDR (120dB).

– Khe cắm bộ nhớ SD/ SDHC/ SDXC.

– Truyền phát đa vụ.

Đặc tính kỹ thuật

Model	SND-6084
Video
Imaging Device	1/2.8 inch 2.38M CMOS
Effective Pixels	1,944(H) x 1,104(V)
Min. Illumination	Color: 0.1Lux (F1.2, 50IRE), 0.001Lux (2sec, 50IRE), 0.03Lux (F1.2, 30IRE) B/W: 0.01Lux (F1.2, 50IRE), 0.002Lux (F1.2, 30IRE)
Lens
Focal Length (Zoom Ratio)	3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio	F1.2
Angular Field of View	H: 105.5°(Wide) ~ 37.1°(Tele) V: 57.5°(Wide) ~ 21.0°(Tele)
Min. Object Distance	0.5m
Focus Control	Simple focus(Motorized V/F) / Manual Remote control via network, Button control (Manual, Simple focus)
Lens Type	DC auto iris, P-Iris
Pan / Tilt / Rotate	0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title	Off/ On (Displayed up to 45 characters)
Day & Night	Auto (ICR)/ Color / B/W / External / Schedule
Backlight Compensation	Off / BLC
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off/ On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off/ On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zones)
Privacy Masking	Off / On (32 zones with 4 points of polygonal)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Flip / Mirror	Off / On
IntelligentVideo Analytics	Tampering, Virtual line, Enter/ Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notication via E-mail, Localstorage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
Network
Ethernet	RJ-45 (10/ 100 BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Audio In	Selectable (Mic in / Line in), Built-in mic. Max output level: 1 Vrms Supply voltage: 2.5V DC (4mA), Input impedance: approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack)
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Edge Storage	SD/SDHC/SDXC – Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S/G, HTTP API (SUNAPI) 2.0, SVNP 1.2
General
Input Voltage / Current	12V DC ±10%, PoE (IEEE802.3af, Class3)
Power Consumption	Max. 8.79W (12V DC), Max. 9.57W (PoE, Class3)
Color/ Material	Ivory / Plastic
Dimension (WxHxD)	Ø132.1 x 107.6mm
Weight	505g

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
