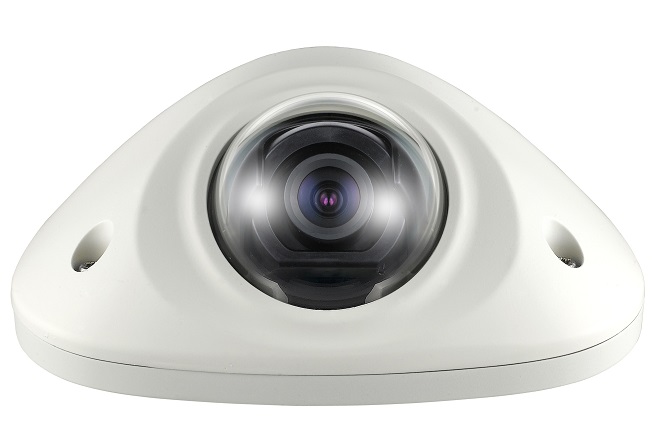

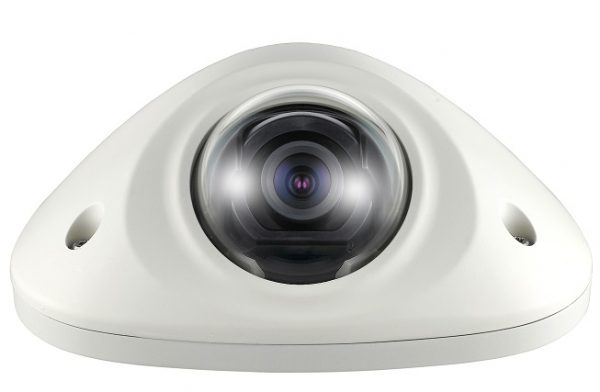

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET SNV-6012M

– Tốc độ khung hình: 60fps @ 1920 x 1080

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET SNV-6012M

– Độ phân giải tối đa: 2M (1920 x 1080), Full HD (1080p).

– Tốc độ khung hình: 60fps @ 1920 x 1080

– Chuẩn nén camera ip: H.264 & MJPEG.

– Ống kính cố định: 3mm.

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng chống sương mù Defog.

– Chức năng chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

Đặc tính kỹ thuật

Model	SNV-6012M
Video
Imaging Device	1/2.8 inch 2.38M CMOS
Effective Pixels	1,944(H) x 1,104(V)
Min. Illumination	Color: 0.3Lux (1/30sec, F1.2, 50IRE), 0.005Lux (2sec, F1.2, 50IRE), 0.15Lux (1/30sec, F1.8, 50IRE) B/W: 0.3Lux (1/30sec, F1.8, 50IRE), 0.15Lux (F1.8, 30IRE)
Lens
Focal Length (Zoom Ratio)	3mm fixed
Max. Aperture Ratio	F2.0
Angular Field of View	H: 103.1°/ V: 53.9° / D: 124.5°
Lens Type	Fixed iris
Mount Type	Board-in type
Pan/Tilt	Pan: -10° ~ 10°, Tilt: 0° ~ 90°
Operational
Camera Title	Off/ On (Displayed up to 45 characters)
Day & Night	Auto (Electrical) / Color/ B/W / Schedule
Backlight Compensation	Off / BLC
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off/ On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off/ On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zones)
Privacy Masking	Off / On (32 zones with 4 points of polygonal)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Off / On
IntelligentVideo Analytics	Tampering, Virtual line, Enter/ Exit, (Dis) Appear, Audio detection, Face detection
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, Localstorage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers)
Network
Ethernet	10Base-T / 100Base-TX, M12 connector (4poles, Female, D-coding)
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Edge Storage	SD/SDHC/SDXC – Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2
General
Input Voltage / Current	PoE (Class A type only)
Power Consumption	Max. 7.5W
Color/ Material	Ivory / Aluminum
Ingress Protection	IP66
Vandal Resistance	IK10
Dimension (WxHxD)	135.2 x 54.3 x 124.5 mm
Weight	530g

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
