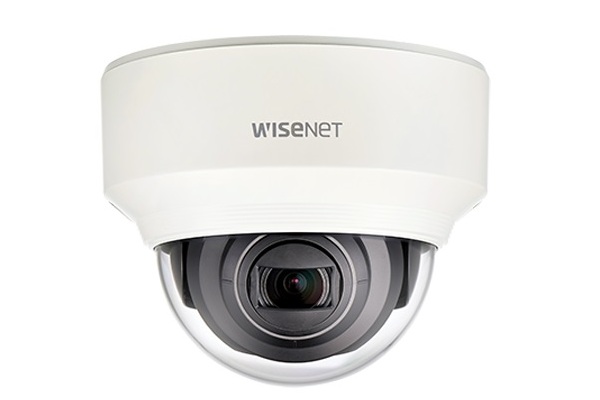

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XND-6080V

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

Mô tả
Sản phẩm liên quan

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XND-6080V
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel.
-Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lên đến 512GB.
-Ống kính: 2.8 ~ 12mm.
-Tỉ lệ Zoom: 4.3x.
-Góc quan sát theo chiều ngang: 119.5º ~ 27.9º, theo chiều dọc: 62.8º ~ 15.7º, theo phương chéo: 142.1º ~ 32º.
-Chức năng quan sát Ngày và Đêm (IR-CUT).
-Chức năng chống ngược sáng WDR (150dB).
-Chức năng giảm nhiễu số SSNRV (2D + 3D).
-Chức năng chống sương mù Defog.
-Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.
-Chức năng điều chỉnh độ lợi AGC.
-Hỗ trợ LDC (Lens Distortion Correction).
-Hỗ trợ âm thanh: 2 chiều.
-Nguồn điện: 12VDC.
-Chức năng cấp nguồn qua mạng PoE.
-Kích thước: Ø140.8 x 113.0mm.
-Trọng lượng: 714g.
Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2M CMOS
Total Pixels	1,945(H) x 1,109(V)
Effective Pixels	1,945(H) x 1,097(V)
Scanning System	Progressive Scan
Min. Illumination	Color: 0.015Lux (F1.4, 1/30sec), B/W: 0.0015Lux (F1.4, 1/30sec)
S / N Ratio	50dB
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Video Output	USB: micro USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio)	2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio	F1.4 (Wide) ~ F3.6 (Tele)
Angular Field of View	H: 119.5º ~ 27.9º / V : 62.8º ~ 15.7º / D : 142.1º ~ 32.0º
Min. Object Distance	0.5m
Focus Control	Simple focus (Motorized V/F) / Manual – Remote control via network (Manual, Simple focus)
Lens Type	DC auto iris, P-Iris
Mount Type	Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title	Off / On (Displayed up to 85 characters)
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC
Wide Dynamic Range	150dB
Contrast Enhancement (DWDR)	SSNR (Off / On)
Digital Noise Reduction	SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto (Input from fog detection) / Manual
Motion Detection	Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking	Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Contrast	Level adjusment
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ	24x, Digital PTZ (Preset, Group)
Flip / Mirror	Off/On, Hallway view: 90º/270º
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate	H.264: Max. 60fps at all resolutions
Max. Framerate	MJPEG: 1280 x 1024, 1280 x 720, 1024 x 768: Max. 15fps. 800 x 600, 640 x 480, 320 x 240: Max. 30fps
Smart Codec	Manual mode (Area-based: 5ea), Face detection mode
Video Quality Adjustment	H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 10 profiles)
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in / Built in mic)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack)
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Storage	SD/SDHC/SDXC 2slot (Up to 512GB) – Continuous recording (1st slot to 2nd slot)
Storage	NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
	Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X
	10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewer, SSM
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3)/ 12VDC
Power Consumption	Max. 6W (12VDC), Max. 6.5W (PoE)
Color / Material	Ivory / Aluminum
Dimensions	Ø140.8 x 113.0mm
Weight	714g

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Bảo hành: 24 tháng.
