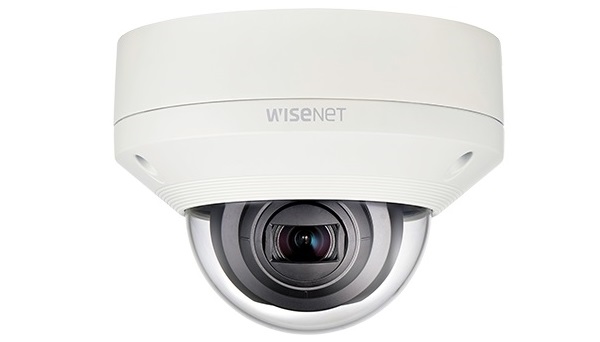

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6080/VAP
– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6080/VAP
– Cảm biến hình ảnh: 1/2 inch CMOS.
– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
– Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.
– Độ phân giải camera ip: 2.0 Megapixel.
– Độ nhạy sáng: 0.015 Lux@F0.94 (Màu), 0.0015 Lux@F0.94 (B / W).
– Ống kính (motorized varifocal): 2.8 ~ 12mm.
– Hỗ trợ âm thanh: 2 chiều.
– Chức năng quan sát Ngày và Đêm (ICR).
– Chức năng chống sương mù Defog.
– Chức năng báo động, phát hiện hướng, phát hiện sương mù, phát hiện âm thanh, theo dõi tự động kỹ thuật số, phân loại âm thanh, giả mạo.
– Tiêu chuẩn chống thấm nước và bụi: IP67, IP66 (thích hợp sử dụng trong nhà và ngoài).
– Tiêu chuẩn chống va đập: IK10.
– Chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Min. Illumination | Color : 0.015Lux (F1.4, 1/30sec), B/W : 0.0015Lux (F1.4, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω Composite, 720 x 480(N), 720 x 576(P), for Installation |
| USB: Micro USB Type B, 1280 x 720, for Installation | |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8 ~ 12mm (4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
| Angular Field of View | H : 119.5˚ ~ 27.9˚/ V : 62.8˚ ~ 15.7˚ / D : 142.1˚ ~ 32.0˚ |
| Focus Control | Simple focus(Motorized V/F)/ Manual, Remote control via network (Manual, Simple focus) |
| Lens / Mount Type | DC Auto Iris / Board-in Type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67°/ 0° ~ 355° |
| Operational | |
| Camera Title | Off / On (Displayed up to 85 Characters) |
| – W/W : English / Numeric / Special Characters | |
| – China : English / Numeric / Special / Chinese Characters | |
| – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by Resolution | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway View : 90˚/270˚ |
| Defog | Off / Auto (Input from fog detection)/ Manual |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjusment |
| LDC (Lens Distortion Correction) | Off / On (5 Levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital Zoom | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway View : 90˚/270˚ |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motiondetection, Sound Classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| DPTZ preset | |
| Pixel Counter | Support |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, |
| 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps at all resolutions |
| WiseStream II | Support |
| Smart Codec | Manual Mode (Area-Based : 5ea) |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming Capability | Multiple streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm |
| Audio Out | Line out, Max output level : 1Vrms |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Audio Communication | Bi-directional (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC 2Slot (Up to 512GB) – Continuous Recording (1st Slot to 2nd Slot) |
| – Motion Images recorded in the SD / SDHC / SDXC Memory Card Can be Downloaded. | |
| NAS (Network Attached Storage), Local PC for Instant Recording | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12 |
| Non-Plugin Web Viewer | |
| Supported Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49 | |
| (Window 64bit only), Apple Safari 10 (Mac OS X only) | |
| Plug-in Web Viewer | |
| Supported Browser: MS Explore 11, Apple Safari 10 (Mac OS X only) | |
| Central Management Software | SmartViewer, SSM |
| Environmental | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% |
| Certification | IP67, IP66, NEMA 4X / IK10 |
| Electrical | |
| Input Voltage | 24VAC, 12VDC, PoE (IEEE802.3af Class3) |
| Power Consumption | Max. 7W (12VDC), Max. 7.8W (PoE), Max. 8.2W (24VAC) |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Dimensions | Ø160 x 118.5mm |
| Weight | 985g |
– Hãng sản xuất: Hanwha Techwin Việt Nam.
– Bảo hành: 24 tháng.
