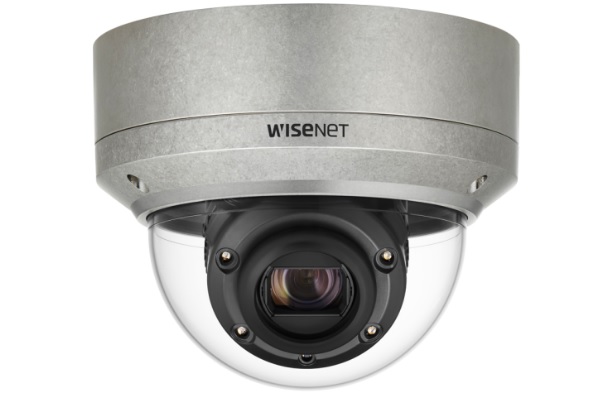

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6120RS/VAP
– Chuẩn nén hình ảnh: H.264, H.265, MJPEG.
Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6120RS/VAP
– Cảm biến hình ảnh: 1/2.8 inch CMOS.
– Chuẩn nén hình ảnh: H.264, H.265, MJPEG.
– Hỗ trợ 2 khe cắm thẻ nhớ Micro SD/ SDHC/SDXC dung lượng lưu trữ 512GB.
– Độ phân giải camera ip: 2.0 Megapixel (1920 x 1080).
– Ống kính: 5.2 ~ 62.4 mm.
– Zoom quang: 12x.
– Zoom số: 24x.
– Độ nhạy sáng: 0.03 Lux (Color), 0 Lux (B/W) (IR Led Bật).
– Chức năng quan sát Ngày và Đêm (ICR)
– Chức năng chống ngược sáng WDR (150dB).
– Chức năng giảm tiếng ồn kỹ thuật số SSNRV.
– Tầm quan sát hồng ngoại: 70 mét.
– Hỗ trợ WiseStream II.
– Hỗ trợ LDC.
– Hỗ trợ âm thanh: 2 chiều.
– Chức năng thông minh: Tự động theo dõi, phát hiện đối tượng lảng vảng.
– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| VIDEO | |
| Imaging Device | 1/2.8 inch CMOS |
| Total Pixels | 1945 (H) x 1109 (V) 2.16M |
| Effective Pixels | 1945 (H) x 1097 (V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.03 Lux (1 / 30sec, F1.6), B/W : 0 Lux (IR LED On) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite, 720×480 (N), 720×576 (P), for installation |
| USB : Micro USB type B, 1280×720, for installation | |
| LENS | |
| Focal Length (Zoom Ratio) | 5.2~62.4mm (Optical 12X) |
| Max. Aperture Ratio | 1.6 (Wide) ~ 3.0 (Tele) |
| Angular Field of View | H: 54.58˚(Wide) ~ 5.30˚(Tele) / V: 32.19 (Wide) ~ 3.00˚(Tele) / D: 61.40˚(Wide) ~ 6.06˚(Tele) |
| Min. Object Distance | 2.1m (6.89ft) |
| Focus Control | Auto / Manual / Oneshot AF |
| Lens / Mount Type | DC Auto Iris/ Board-in type |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 75° / 0° ~ 355° |
| OPERATIONAL | |
| Viewable Length | 70m |
| Camera Title | Off / On (Displayed up to 85 characters) |
| – W/W : English / Numeric / Special characters | |
| – China : English / Numeric / Special / Chinese characters | |
| – Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRⅤ (2D + 3D Noise Filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in gyro sensor) |
| Defog | Auto / Manual / Off |
| Motion Detection | Off / On (8ea, 8 point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) |
| – Color : Grey / Green / Red / Blue / Black / White | |
| – Mosaic | |
| Gain Control | Off / Low / Middle / High |
| Contrast | Level adjustment |
| LDC | On / Off (5 levels with Min / Max) |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Zoom Digital | 24x |
| Preset | 300 ea |
| Flip / Mirror | Off / On, Hallway view : 90˚ / 270˚ |
| Video Analytics | Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio Detection, Defocus detection, Digital auto tracking – with metadata |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP, E-mail, Notification via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, DPTZ preset |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, |
| 720 x 480, 640 x 480, 640 x 360, 320 x 240 | |
| Max. Framerate | H.265 / H.264: Max. 30fps at all resolutions / Motion JPEG: Max. 30fps |
| Smart Codec | Manual mode (area-based : 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.265 / H.264 / MJPEG : Target Bitrate Level Control |
| Bitrate Control Method | H.265 / H.264 : CBR OR VBR, MJPEG : VBR |
| Streaming Capability | Multiple Streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in), Supply voltage : 2.5VDC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out, Max. output level: 1 Vrms |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz | |
| Audio Communication | Bi-directional audio (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address | |
| Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast Mode |
| Edge Storage | SD/SDHC/SDXC 2slot (Up to 512GB) – Continuous recording (1st slot to 2nd slot) |
| NAS (Network Attached Storage), Local PC for instant recording | |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Supported OS | Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12. Non-plugin WebViewer |
| Supported Browser | Google Chrome, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari 10 (Mac OS X only) |
| Plug-in Webviewer | |
| Supported Browser: MS Explorer 11, Apple Safari (Mac OS X only) | |
| Central Management | SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | IP66, NEMA 4X |
| Vandal Resistance | IK10+ |
| ELECTRICAL | |
| Input Voltage / Current | 24VAC ± 10%, 12VDC ± 10%, PoE (IEEE802.3af) |
| Power Consumption | Max. 11.5W (12VDC), Max. 12.95W (PoE), Max. 14W (24VAC) |
| MECHANICAL | |
| Color / Material | Silver / SUS316L, Nylon (Bubble) |
| Dimensions | Ø 162 x H130.5mm |
| Weight | 2.92kg |
– Hãng sản xuất: Hanwha Techwin Việt Nam.
– Bảo hành: 24 tháng.
