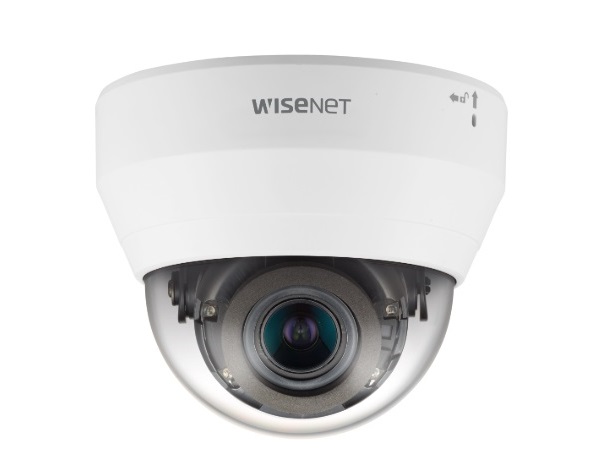

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET QND-6082R

– Độ phân giải camera ip: 2 Megapixel (1920 x 1080).

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET QND-6082R

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Độ phân giải camera ip: 2 Megapixel (1920 x 1080).

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Độ nhạy sáng: 0.095Lux (Color), 0Lux (B/W, IR LED on).

– Tầm quan sát hồng ngoại: 20 mét.

– Ống kính varifocal: 3,2 ~ 10 mm (3,1x).

– Phát hiện chuyển động, giả mạo, phát hiện mất nét.

– Chế độ xem hành lang (90° / 270°), hỗ trợ LDC.

– Khe cắm bộ nhớ Micro SD/ SDHC/ SDXC (tối đa 128GB).

– Nguồn điện: 12VDC/PoE.

Đặc tính kỹ thuật

Model	QND-6082R
Video
Imaging Device	1/2.8 inch 2MP CMOS
Effective Pixels	1920(H) x 1080(V)
Min. Illumination	Color: 0.095Lux (F1.6, 1/30sec), BW: 0Lux (IR LED on)
Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480 (N), 720×576( P) for installation
Lens
Focal Length (Zoom Ratio)	3.2~10mm (3.1x) motorized varifocal
Max. Aperture Ratio	F1.6 (Wide) ~ F2.9 (Tele)
Angular Field of View	H: 109.0°(Wide) ~ 33.2°(Tele) V: 57.4°(Wide) ~ 18.7°(Tele) D: 132.0°(Wide) ~ 38.0°(Tele)
Focus Control	Simple focus
Pan / Tilt / Rotate	0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
IR Viewable Length	20m
Camera Title	Displayed up to 85 characters
Day & Night	Auto (ICR)
Backlight Compensation	BLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR
Motion Detection	4ea, polygonal zones
Privacy Masking	6ea, rectangular zones
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view (90°/270°)
Analytics	Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio In	Built-in mic
Network
Ethernet	RJ-45 (10/ 100 BASE-T)
Video Compression Format	H.265/H.264: Main/High, MJPEG
Resolution	1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360
Smart Codec	WiseStream II
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Edge Storage	Micro SD/SDHC/SDXC 1slot 128GB
Application Programming Interface	ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform
General
Input Voltage / Current	PoE (IEEE802.3af, Class3), 12VDC
Power Consumption	PoE: Max 7.7W, typical 6W 12VDC: Max 6.5W, typical 5.1W
Dimension (WxHxD)	Ø119.8 x 98.8mm
Weight	320g

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
