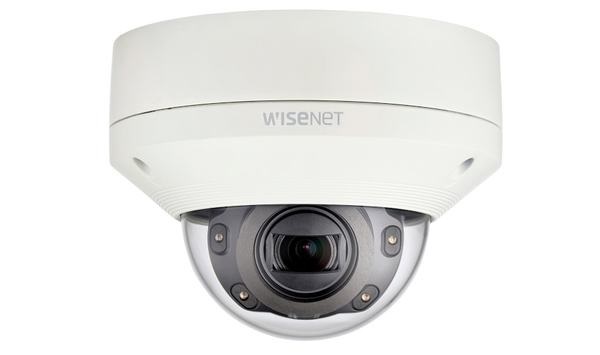

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XNV-6080R/VAP

– Độ phân giải camera ip: 2.0 Megapixel.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XNV-6080R/VAP

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Độ phân giải camera ip: 2.0 Megapixel.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 512GB.

– Ống kính: 2.8 ~ 12mm (motorized varifocal).

– Góc quan sát theo chiều ngang: 119.5º ~ 27.9º; theo chiều dọc: 62.8º ~ 15.7º, theo phương chéo: 142.1º ~ 32º.

– Tầm quan sát hồng ngoại: 50 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR.

– Chức năng chống sương mù Defog.

– Chức năng giảm nhiễu số SSNRV (2D+3D).

– Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.

– 1 ngõ vào báo động, 1 ngõ ra báo động.

– Kết nối mạng: RJ45 (10/100Base-T).

– Hỗ trợ LDC (Lens Distortion Correction).

– Tiêu chuẩn chống thấm nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nguồn điện: 12VDC ± 10%, 24VAC ± 10%.

– Chức năng cấp nguồn qua mạng PoE.

– Kích thước: Ø160 x 118.5mm.

– Trọng lượng: 995g.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2M CMOS
Total Pixels	1,945(H) x 1,109(V)
Effective Pixels	1,945(H) x 1,097(V)
Scanning System	Progressive Scan
Min. Illumination	Color : 0.015Lux (F1.4, 1/30sec), B/W : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio)	2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio	F1.4 (Wide) ~ F3.6 (Tele)
Angular Field of View	H : 119.5º ~ 27.9º/ V : 62.8º ~ 15.7º / D : 142.1º ~ 32.0º
Lens Type	DC auto iris, P-Iris
Mount Type	Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
IR Viewable Length	50m
Camera Title	Off / On (Displayed up to 85 characters per line)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto scale by resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range	150dB
Contrast Enhancement (DWDR)	SSNR (Off / On)
Digital Noise Reduction	SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto (Input from fog detection) / Manual
Motion Detection	Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking	Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control	Off / Low / Middle / High
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror	Off/On, Hallway view 90º / 270º
Digital PTZ	24x, Digital PTZ (Preset, Group)
Intelligent Video Analytics	Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events	File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/
Alarm Events	SDXC) or NAS recording at event triggers, External output, DPTZ preset
Pixel Counter	Support
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/ H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps
Smart Codec	Manual mode (Area-based : 5ea)
WiseStream II	Support
Video Quality Adjustment	H.265 / H.264: Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 10 profiles)
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Audio I/O	Line in/ Line out, Max output level : 1Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Compression Format	G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
Audio Communication	Bi-directional (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Storage	SD/SDHC/SDXC 2 slot (Up to 512GB) – Continuous recording (1st slot to 2nd slot) NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface	ONVIF profile S/G, HTTP API (SUNAPI)
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
	Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X
	10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewer, SSM
Ingress Protection / Vandal Resistance	IP67, IP66, NEMA 4X / IK10
ELECTRICAL
Input Voltage / Current	24VAC ±10%, 12VDC ±10%, PoE (IEEE802.3af )
Power Consumption	Max. 11.5W (12VDC), Max. 12.95W (PoE), Max. 14W (24VAC)
Color / Material	Ivory / Aluminum
Dimensions	Ø160.0 x 118.5mm
Weight	995g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
