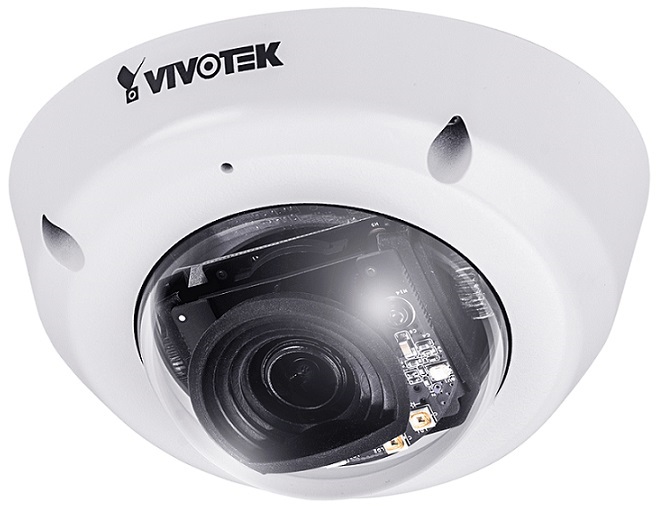

Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek MD8565-N
-Bảo hành: 36 tháng.
Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek MD8565-N
-Cảm biến hình ảnh: 1/2.9 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải: 2.0 Megapixel.
-Hỗ trợ khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
-Ống kính: f=2.8mm, f=3.6mm (Fixed focal).
-Số đèn LED hồng ngoại: 4 đèn LED hồng ngoại.
-Tầm quan sát hồng ngoại: 10 mét.
-Chức năng camera quan sát Ngày và Đêm.
-Chức năng chống ngược sáng WDR Enhanced.
-Chức năng giảm nhiễu số 3DNR.
-Hỗ trợ âm thanh: 1 chiều.
-Tích hợp microphone.
-Số người truy cập đồng thời là: 10 người.
-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 5.5W.
-Kích thước: Ø110 x 57mm.
-Trọng lượng: 400g.
Đặc tính kỹ thuật
| Model | MD8565-N (2.8mm): f = 2.8 mm |
| MD8565-N (3.6mm): f = 3.6 mm | |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image Sensor | 1/2.9 inch Progressive CMOS |
| Maximum Resolution | 1920 x 1080 |
| Lens Type | Fixed-focal |
| Focal Length | MD8565-N (2.8mm): f = 2.8 mm |
| MD8565-N (3.6mm): f = 3.6 mm | |
| Aperture | MD8565-N (2.8mm): F1.8 |
| MD8565-N (3.6mm): F2.1 | |
| Field of View | MD8565-N (2.8mm): 113° (Horizontal), 63° (Vertical), 136° (Diagonal) |
| MD8565-N (3.6mm): 77° (Horizontal), 41° (Vertical), 82° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | MD8565-N (2.8mm): 0.16 Lux @ F1.8 (Color), |
| < 0.01 Lux @ F1.8 (B/W), 0 Lux with IR illumination on. MD8565-N (3.6mm): 0.18 Lux @ F2.1 (Color), < 0.01 Lux @ F2.1 (B/W), 0 Lux with IR illumination on | |
| Tilt Range | 0° ~ 80° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| IR Illuminators | Built-in 940nm Invisible IR Illuminators up to 10 meters with Smart IR IR LED x 4 |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 30 fps @ 1920 x 1080 |
| 60 fps @ 1280 x 720 | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | MD8565-N (2.8mm): 50 dB |
| MD8565-N (3.6mm): 56 dB | |
| Dynamic Range | 70 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Smart Stream II |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, defog, 3DNR, video rotation |
| Audio | |
| Audio Capability | One-way Audio |
| Compression | G.711, G.726 |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server and MicroSD Card. File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
| General | |
| Connectors | M12 for Network/PoE connection x 1 |
| Built-in microphone x 1 | |
| Digital input x 1 | |
| DC Power Input x 1 | |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 |
| DC 7.5V~DC48V | |
| Power Consumption | Max. 5.5 W |
| Dimensions | Ø 110 x 57 mm |
| Weight | 400 g |
| Casing | IP66, IK10, NEMA 4X |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
-Bảo hành: 36 tháng.
