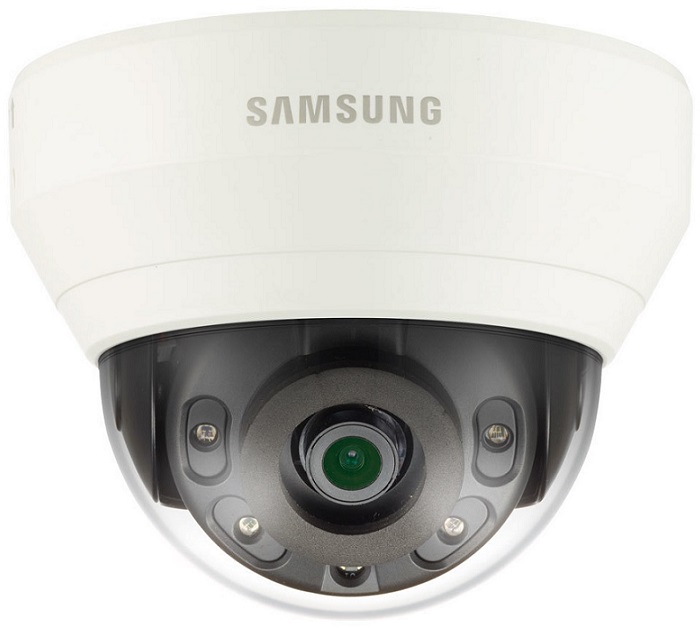

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QND-7010R/KAP

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QND-7010R/KAP

-Cảm biến hình ảnh: 1/3 inch CMOS.

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

-Độ nhạy sáng: (Color) 0.5Lux, B/W: 0Lux (IR LED on).

-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 128GB.

-Độ phân giải camera ip: 4.0 Megapixel.

-Ống kính: 2.8mm fixed.

-Góc quan sát theo chiều ngang: 110.0º / V: 63.0º / D: 128.0º.

-Tầm quan sát hồng ngoại: 20 mét.

-Chức năng quan sát Ngày và Đêm.

-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).

-Chức năng giảm nhiễu số SSNR.

-Chức năng điều chỉnh độ lợi AGC.

-Chức năng LDC (Lens Distortion Correction).

-Tiêu chuẩn chống va đập: IK08.

-Nguồn điện cung cấp: 12VDC.

-Chức năng cấp nguồn qua mạng PoE.

-Kích thước: Ø110.0 x 86.0mm.

-Trọng lượng: 290g.

Đặc tính kỹ thuật

Video
Imaging Device	1/3 inch 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive
Min. Illumination	Color: 0.5Lux, B/W: 0Lux (IR LED on
Lens
Focal Length (Zoom Ratio)	2.8mm fixed
Max. Aperture Ratio	F2.2
Angular Field of View	H: 110.0º / V: 63.0º / D: 128.0º
Lens Type	Fixed
Mount Type	Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
Viewable Length	20m
Camera Title	Off / On (Displayed up to 20 characters per line)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSNR (Off / On)
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4ea polygonal zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265, H.264, MJPEG
Resolution	2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264: Max. 20fps at 4M, Max. 30fps at under 2M
Max. Framerate	MJPEG: Max. 15fps
Video Quality Adjustment	H.264: Target bitrate level control, MJPEG: Quality level control
Smart Codec	WiseStream
Video Quality Adjustment	H.265/H.264: Target bitrate level control, MJPEG: Quality level control
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio I/O	Built-in mic
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Storage	SD/SDHC/SDXC (128GB) – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet Open Platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
Webpage Language	Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewer
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3)/ 12VDC
Power Consumption	Max. 7W (PoE), Max. 5.8W (12VDC)
Color / Material	Ivory / Plastic
Dimensions	Ø110.0 x 86.0mm
Weight	290g

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
