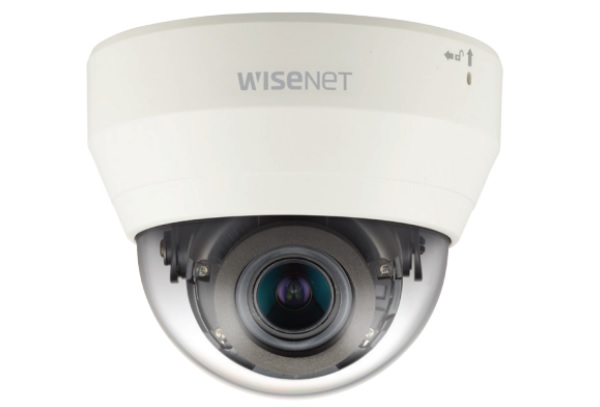

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QND-7080R/VAP

– Độ phân giải camera ip: 4.0 Megapixel.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QND-7080R/VAP

– Cảm biến hình ảnh: 1/3 inch CMOS.

– Độ phân giải camera ip: 4.0 Megapixel.

– Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 128GB.

– Ống kính: 2.8 ~ 12mm.

– Tỉ lệ Zoom: 4.3x.

– Góc quan sát theo chiều ngang: 109.7º ~ 26º / theo chiều ngang: 60.8º ~ 15.2º / phương chéo: 131.3º ~ 30.1º.

– Phạm vi Pan/ Tilt/ Roate: 0° ~ 350° / 0° ~ 67° / 0° ~ 355°.

– Ngõ vào/ ngõ ra Audio: Tích hợp mic.

– Tầm quan sát hồng ngoại: 20 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng giảm nhiễu số SSNR.

– Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).

– Chức năng phát hiện chuyển động: Off / On (4ea polygonal zones).

– Chức năng vùng riêng tư: Off / On (6ea rectangular zones).

– Chức năng điều chỉnh độ lợi AGC.

– Nguồn điện cung cấp: 12VDC.

– Chức năng cấp nguồn qua mạng PoE.

– Công suất tiêu thụ: Tối đa 7.2W (PoE), tối đa 6.4W (12VDC).

– Kích thước: Ø119.8 x 98.8mm.

– Trọng lượng: 355g.

Đặc tính kỹ thuật

Video
Imaging Device	1/3 inch 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive
Min. Illumination	Color: 0.15Lux (30IRE), B/W: 0Lux (IR LED on
Lens
Focal Length (Zoom Ratio)	2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio	F1.4
Angular Field of View	H: 109.7º ~ 26.0º / V : 60.8º ~ 15.2º / D : 131.3º ~ 30.1º
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type	DC auto iris
Mount Type	Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
Viewable Length	20m
Camera Title	Off / On (Displayed up to 20 characters per line)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSNR (Off / On)
Digital Noise Reduction	SSNR (2D+3D noise filter) (Off / On)
Motion Detection	Off / On (4ea polygonal zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265, H.264, MJPEG
Resolution	2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265 / H.264: 20fps@4000 x 3000, 30fps@4096 x 2160 MJPEG: 2fps@4000 x 3000 ~ 2592 x 1464, 15fps@1920 x 1080 ~ 320 x 240
Video Quality Adjustment	H.264: Target bitrate level control, MJPEG: Quality level control
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio I/O	Built-in mic
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Storage	SD/SDHC/SDXC (128GB) – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet Open Platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Web Viewer	Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewer
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3)/ 12V DC
Power Consumption	Max. 7.2W (PoE), Max. 6.4W (12VDC)
Color / Material	Ivory / Plastic
Dimensions	Ø119.8 x 98.8mm
Weight	355g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
