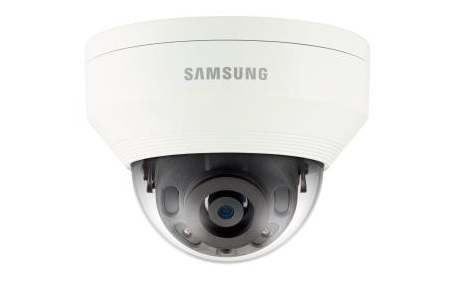

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QNV-7030R/KAP

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QNV-7030R/KAP

-Cảm biến hình ảnh: 1/3 inch CMOS.

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

-Độ phân giải camera ip: 4.0 Megapixel.

-Độ nhạy sáng: 0.3 Lux (Color). B/W: 0 Lux (IR LED ON).

-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 128GB.

-Ống kính: 6mm fixed.

-Góc quan sát theo chiều ngang: 53º / theo chiều dọc: 31º / phương chéo: 62º.

-Tầm quan sát hồng ngoại: 30 mét.

-Chức năng quan sát Ngày và Đêm.

-Chức năng giảm nhiễu số SSNR.

-Chức năng vùng riêng tư: Off / On (6ea rectangular zones).

-Chức năng phát hiện chuyển động: Off / On (4ea polygonal zones)

-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).

-Chức năng LDC (Lens Distortion Correction): Off / On (5 levels with min / max).

-Chức năng phân tích Video thông minh.

-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

-Tiêu chuẩn chống va đập: IK10.

-Nguồn điện cung cấp: 12VDC.

-Chức năng cấp nguồn qua mạng PoE.

-Kích thước: Ø120.3 x 91.7mm

-Trọng lượng: 490g.

Đặc tính kỹ thuật

Video
Imaging Device	1/3 inch 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive
Min. Illumination	Color: 0.3Lux. B/W: 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio)	6mm fixed
Max. Aperture Ratio	F2.2
Angular Field of View	H: 53.0º / V: 31.0º / D: 62.0º
Lens Type	Fixed
Mount Type	Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
IR Viewable Length	30m
Camera Title	Off / On (Displayed up to 20 characters per line)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSNR (Off / On)
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4ea, Polygonal)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Video analytics, Network disconnection, Alarm input
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265, H.264, MJPEG
Resolution	2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264: Max. 20fps at 4M, Max. 30fps at under 2M MJPEG: Max. 15fps
Smart Codec	WiseStream
Video Quality Adjustment	H.265 / H.264: Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 3 profiles)
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio I/O	Line in
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Storage	SD/SDHC/SDXC (128GB) – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, HTTP API (SUNAPI)
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Web Viewer	Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewer
Ingress Protection / Vandal Resistance	IP66/ IK10
ELECTRICAL
Input Voltage / Current	12VDC, PoE (IEEE802.3af, Class3)
Power Consumption	Max. 6.8W (PoE), Max. 5.7W (12V DC)
Color / Material	Ivory / Metal
Dimensions	Ø120.3 x 91.7mm
Weight	490g

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
