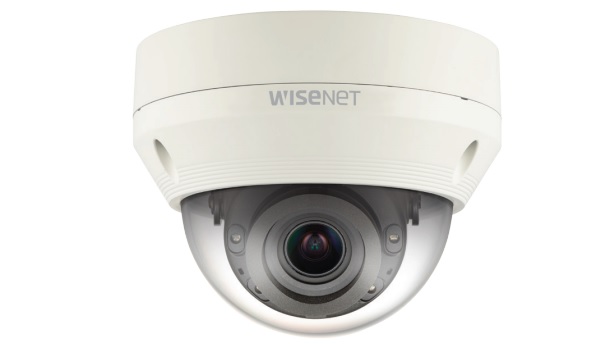

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QNV-7080R/VAP

– Chuẩn nén hình ảnh H.264, H.265, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QNV-7080R/VAP

– Cảm biến hình ảnh: 1/3 inch CMOS.

– Chuẩn nén hình ảnh H.264, H.265, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ tối đa 128GB.

– Độ nhạy sáng: 0.15 Lux (Color), 0 Lux (B/W) (IR Led Bật).

– Độ phân giải camera ip: 4.0 Megapixel (2592 x 1520).

– Ống kính: 2.8 ~ 12 mm.

– Tầm quan sát hồng ngoại: 30 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng giảm tiếng ồn kỹ thuật số SSNR.

– Chức năng phát hiện chuyển động, phát hiện can thiệp, giả mạo.

– Hỗ trợ WiseStream.

– Hỗ trợ LDC (Lens distortion correction).

– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chống va đập: IK10.

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

Đặc tính kỹ thuật

VIDEO
Imaging Device	1/3 inch 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive
Min. Illumination	Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on)
S / N Ratio	50dB
LENS
Focal Length (Zoom Ratio)	2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio	F1.4
Angular Field of View	H : 109.7˚ ~ 26.0˚ / V : 60.8˚ ~ 15.2˚ / D : 131.3˚ ~ 30.1˚
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network
Lens Type	DC auto iris
Mount Type	Board type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	0° ~ 350° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR Viewable Length	30m (98.43ft)
Camera Title	Off / On (Displayed up to 20 characters per line)
	– W/W : English / Numeric / Special characters
	– China : English / Numeric / Special / Chinese characters
	– Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4ea polygonal zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens distortion correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support (Plug-in viewer only)
NETWORK
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265, H.264, MJPEG
Resolution	2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264: Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG: Max. 15fps
Smart Codec	WiseStream
Video Quality Adjustment	H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio In	Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication. IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Storage	micro SD/SDHC/SDXC (Max. 128GB), NAS
	– Motion images recorded in the SD memory card can be downloaded
	– Manual recording at local PC
Application Programming Interface	ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
Webpage Language	Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
	Plug-in free Webviewer
	– Supported Browser: Google Chrome 47, MS Edge 20
	Plug-in Webviewer
	– Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only)
Central Management Software	SmartViewer
ENVIRONMENTAL
Operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance	IP66 / IK10
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3) / 12VDC
Power Consumption	Max. 7.2W (PoE), Max. 6.4W (12VDC)
MECHANICAL
Color / Material	Ivory / Metal
Dimensions	Ø137.0 x 106.1mm
Weight	680g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
