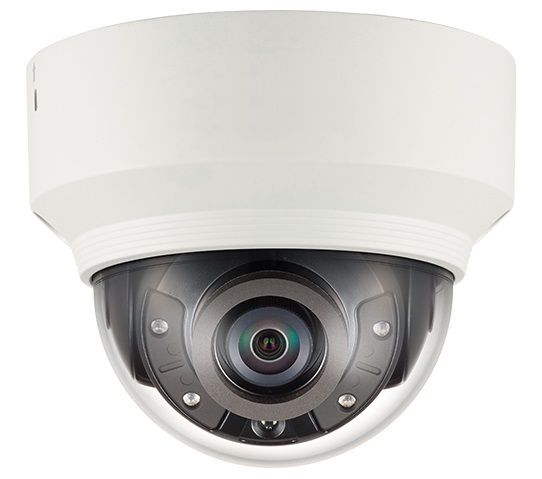

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET XND-8020R/KAP

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET XND-8020R/KAP
– Cảm biến hình ảnh: 1/1.8 inch CMOS.
– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
– Độ phân giải camera ip: 5.0 Megapixel.
– Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lên đến 512GB.
– Ống kính: 3.7mm fixed.
– Góc quan sát theo chiều ngang: 97.5º, theo chiều dọc: 71.9º, theo phương chéo: 126.2º.
– Tầm quan sát hồng ngoại: 30 mét.
– Chức năng quan sát Ngày và Đêm (IR-CUT).
– Chức năng chống ngược sáng WDR.
– Chức năng giảm nhiễu số SSNRV (2D + 3D).
– Chức năng ổn định hình ảnh số.
– Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.
– Chức năng đếm số người trong vùng thiết lập (People counting).
– 1 ngõ vào báo động, 1 ngõ ra báo động.
– Kết nối mạng: RJ45 (10/100Base-T).
– Hỗ trợ LDC (Lens Distortion Correction).
– Nguồn điện: 12VDC ± 10%.
– Chức năng cấp nguồn qua mạng PoE.
– Kích thước: Ø110.0 x 90.0mm.
– Trọng lượng: 380g.
Đặc tính kỹ thuật

Video
Imaging Device	1/1.8 inch 5M CMOS
Total Pixels	3,096(H) x 2,094(V)
Effective Pixels	2,616(H) x 1,976(V)
Scanning System	Progressive Scan
Min. Illumination	Color : 0.16Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio)	3.7mm fixed
Max. Aperture Ratio	F1.6
Angular Field of View	H: 97.5º/ V: 71.9º/ D: 126.2º
Lens Type	Fixed
Mount Type	Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
IR Viewable Length	30m
Camera Title	Off / On (Displayed up to 85 characters per line)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSNR (Off / On)
Digital Noise Reduction	SSNRV (2D+3D noise filter) (Off / On)
Defog	Off / Auto (Input from fog detection) / Manual
Motion Detection	Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution	2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264: Max. 20fps at 4M, Max. 30fps at under 2M MJPEG: Max. 15fps
Smart Codec	WiseStream
Video Quality Adjustment	H.265 / H.264: Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 3 profiles)
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio I/O	Line in/ Line out, Max output level : 1Vrms
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Storage	SD/SDHC/SDXC 2slot (Up to 512GB)
Application Programming Interface	ONVIF profile S/G, HTTP API (SUNAPI)
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
	Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X
	10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewerII
Ingress Protection / Vandal Resistance	IK08
ELECTRICAL
Input Voltage / Current	12VDC, PoE (IEEE802.3af, Class3)
Power Consumption	Max. 8W (12VDC), Max. 9W (PoE)
Color / Material	Ivory / Plastic
Dimensions	Ø110 x 90mm
Weight	380g

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
