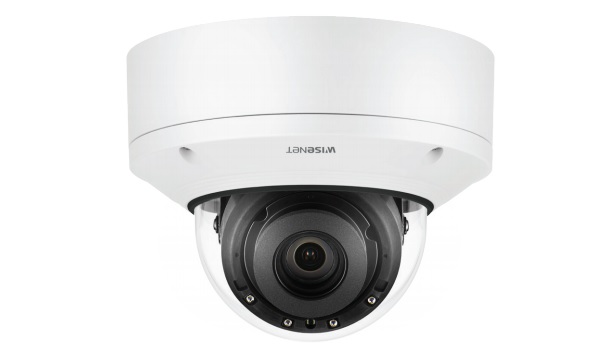

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET XND-8081RV/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET XND-8081RV/VAP

– Cảm biến hình ảnh: 1/1.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 512GB.

– Độ phân giải camera ip: 5.0 Megapixel.

– Độ nhạy sáng: 0.07Lux@F1.4 (Màu), 0Lux (B / W, bật đèn LED IR).

– Ống kính: 3.6 ~ 9.4mm (2.4x) motorized varifocal.

– Tầm quan sát hồng ngoại: 50 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng giảm nhiễu số SSNRV.

– Hỗ trợ WiseStreamII.

– Chức năng ổn định hình ảnh số DIS và phát hiện sốc với cảm biến con quay tích hợp.

– Tiêu chuẩn chống thấm nước: IP52 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

Đặc tính kỹ thuật

VIDEO
Imaging Device	1/1.8 inch CMOS
Effective Pixels	2616(H) x 1976(V)
Min. Illumination	Color : 0.07Lux (F1.2, 1/30sec)
Min. Illumination	BW : 0Lux (IR LED on)
Video Out	CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation
Video Out	USB : Micro USB Type B, 1280 x 720 for installation
LENS
Focal Length (Zoom Ratio)	3.6~9.4mm (2.4x) motorized varifocal
Max. Aperture Ratio	F1.3
Angular Field of View	H: 92.1˚(Wide) ~ 38.7˚(Tele)
	V: 67.2˚(Wide) ~ 29.0˚(Tele)
	D: 119.9˚(Wide) ~ 48.6˚(Tele
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus
Lens Type	DC auto iris, P iris
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	0˚~360˚ / -45˚~85˚ / 0˚~355˚
OPERATIONAL
IR Viewable Length	50m (164.04ft)
Camera Title	Displayed up to 85 characters
Day & Night	Auto (ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR V
Digital Image Stabilization	Support (built-in gyro sensor)
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones
	– Color : Grey/Green/Red/Blue/Black/White
	– Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital PTZ	Support (Preset, Group)
Video Rotation	Flip, Mirror, Hallway view (90˚/270˚)
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence	People counting, Queue management, Heatmap
Alarm I / O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
	Alarm output
	Handover
	Audio playback
Audio In	Selectable (mic in/line in),
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level : 1Vrms
NETWORK
Ethernet	RJ-45 (10/100BASE-T)
Video Compression	H.265/H.264: Main / Baseline / High, MJPEG
Resolution	2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264: Max. 30fps/25fps (60Hz/50Hz)
Max. Framerate	MJPEG: Max. 30fps/25fps (60Hz/50Hz)
Smart Codec	Manual (5ea area), WiseStream II
Video Quality Adjustment	H.264/H.265 : Target bitrate level control
Video Quality Adjustment	MJPEG : Target bitrate level control
Bitrate Control	H.264/H.265 : CBR or VBR
Bitrate Control	MJPEG : VBR
Streaming	Unicast (20 users) / Multicast
Streaming	Multiple streaming (Up to 10 profiles)
Audio Compression	G.711 u-law / G.726 Selectable
	G.726 (ADPCM) 8KHz, G.711 8KHz
	G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
	AAC-LC : 48Kbps at 16KHz
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security	HTTPS (SSL) login authentication
	Digest login authentication
	IP address filtering
	User access log
	802.1X authentication (EAP-TLS, EAP-LEAP)
Edge Storage	Micro SD/SDHC/SDXC 2slot 512GB
Application Programming Interface	ONVIF Profile S/G
	SUNAPI (HTTP API)
	Wisenet open platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
	Recommended Browser: Google Chrome
	Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only)
Memory	1024MB RAM, 256MB Flash
ENVIRONMENTAL
Operating Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification	IP67 / IP66 / IP6K9K, IK10+, NEMA4X
ELECTRICAL
Input Voltage	PoE (IEEE802.3af, Class3), 12VDC
Power Consumption	PoE: Max 11W, typical 5.4W
Power Consumption	12VDC: Max 9W, typical 3.75W
MECHANICAL
Color / Material	White / Aluminum
RAL Code	RAL9003
Dimensions	Ø160 x 125mm
Weight	1.45kg

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
