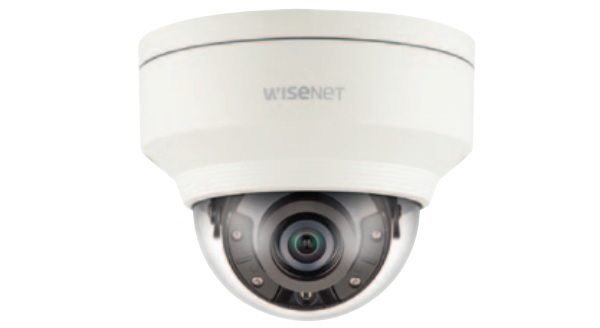

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET XNV-8020R/VAP

– Chuẩn nén hình ảnh: H.264, H.265, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET XNV-8020R/VAP

– Cảm biến hình ảnh: 1/1.8 inch CMOS.

– Chuẩn nén hình ảnh: H.264, H.265, MJPEG.

– Hỗ trợ 2 khe cắm thẻ nhớ SD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.

– Độ phân giải camera ip: 5.0 Megapixel (2560 x 1920).

– Độ nhạy sáng: 0.16 Lux (Color), 0 Lux (B/W) (IR Led Bật).

– Ống kính cố định: 3.7 mm.

– Góc quan sát theo chiều ngang: 97.5˚.

– Góc quan sát theo chiều dọc: 71.9˚.

– Góc quan sát theo phương chéo: 126.2˚.

– Tầm quan sát hồng ngoại: 30 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng giảm tiếng ồn kỹ thuật số SSNRV

– Hỗ trợ WiseStream II.

– Hỗ trợ LDC (Lens Distortion Correction).

– Hỗ trợ âm thanh: 2 chiều.

– Tiêu chuẩn chống thấm nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

Đặc tính kỹ thuật

VIDEO
Imaging Device	1/1.8 inch CMOS
Total Pixels	3096 (H) x 2094 (V)
Effective Pixels	2616 (H) x 1976 (V)
Scanning System	Progressive Scan
Min. Illumination	Color : 0.16Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vp-p / 75Ω composite, 720×480 (N), 720×576 (P), for installation
Video Output	USB : Micro USB type B, 1280×720, for installation
LENS
Focal Length (Zoom Ratio)	3.7mm fixed
Max. Aperture Ratio	F1.6
Angular Field of View	H : 97.5˚ / V : 71.9˚ / D : 126.2˚
Min. Object Distance	0.4m (1.64ft)
Focus Control	Manual
Lens / Mount Type	Fixed / Board-in type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
Viewable Length	30m
Camera Title	Off / On (Displayed up to 85 characters)
	– W/W : English / Numeric / Special characters
	– China : English / Numeric / Special / Chinese characters
	– Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	Auto (ICR)/ Color/ B/W / External / Schedule
Backlight Compensation	Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRⅤ (2D + 3D Noise Filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto (Input from fog detection) / Manual
Motion Detection	Off / On (8ea, 8 point polygonal zones), Handover
Privacy Masking	Off / On (32ea, polygonal zones)
	– Color : Grey / Green / Red / Blue / Black / White
	– Mosaic
Gain Control	Off / Low / Middle / High
Contrast	Level adjustment
LDC	On / Off (5 levels with Min / Max)
White Balance	ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ	24x, Digital PTZ (Preset, Group)
Flip / Mirror	Off / On, Hallway view : 90˚ / 270˚
Video Analytics	Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio Detection, Defocus detection, Digital auto tracking – with metadata
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events	File upload via FTP, E-mail, Notification via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, DPTZ preset
Pixel Counter	Support
NETWORK
Ethernet	RJ-45 (10/100 BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution	2560 x 1920, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265 / H.264: Max. 30fps at all resolutions / Motion JPEG: Max. 30fps
Smart Codec	Manual mode (area-based : 5ea)
WiseStreamⅡ	Support
Video Quality Adjustment	H.265 / H.264 / MJPEG : Target Bitrate Level Control
Bitrate Control Method	H.265 / H.264 : CBR OR VBR, MJPEG : VBR
Streaming Capability	Multiple Streaming (Up to 10 Profiles)
Audio In	Selectable (Mic in / Line in), Supply voltage : 2.5VDC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out, Max. output level: 1 Vrms
Audio Compression Format	G.711 u-law / G.726 selectable
	G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
	G.726 (ADPCM) 8KHz, G.711 8KHz
	AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz
Audio Communication	Bi-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
	Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address
	Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	20 users at Unicast Mode
Edge Storage	SD/SDHC/SDXC 2slot (Up to 512GB) – Continuous recording (1st slot to 2nd slot)
Edge Storage	NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Supported OS	Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12. Non-plugin WebViewer
Supported Browser	Google Chrome, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari 10 (Mac OS X only)
	Plug-in Webviewer
	Supported Browser: MS Explorer 11, Apple Safari (Mac OS X only)
Central Management	SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP66, IP67
Vandal Resistance	IK10
ELECTRICAL
Input Voltage / Current	12VDC ±10%, PoE (IEEE802.3af)
Power Consumption	Max. 8W (12VDC), Max. 9W (PoE)
MECHANICAL
Color / Material	Ivory / Metal
Dimensions	Ø120.0 x 97.5mm
Weight	615g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
