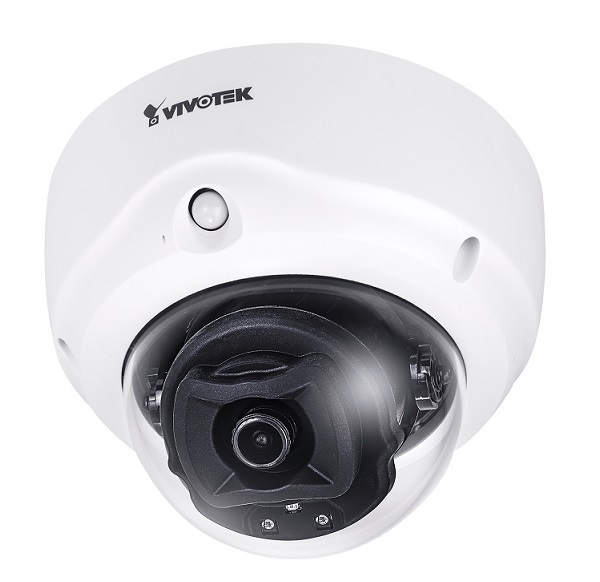

Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek FD9187-H
– Độ phân giải camera ip: 5.0 Megapixel.
Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek FD9187-H
– Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.
– Độ phân giải camera ip: 5.0 Megapixel.
– Chuẩn nén hình ảnh: H.265.
– Ống kính cố định: 2.8mm.
– Tầm quan sát hồng ngoại: 30 mét.
– Công nghệ chống ngược sáng WDR Pro.
– Hỗ trợ chức năng SNV (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
– Chức năng phát hiện chuyển động thông minh và hạn chế báo động giả.
– Tích hợp cảm biến hồng ngoại phát hiện chuyển động của người PIR sensor.
Đặc tính kỹ thuật
| Model | FD9187-H |
| Camera features | |
| Image Sensor | 1/2.7′ Progressive CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed-iris |
| Field of View | 103° (Horizontal) 76° (Vertical) 134° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.06 Lux @ F2.0 (Color) 0 Lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 80° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560×1920 30 fps @ 2560×1440 60 fps @ 1920×1080 |
| Maximum Streams | 3 simultaneous streams |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, metering |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone External microphone input External line output |
| Network | |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Support |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, human detection, time filter |
| Smart VCA | Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, PIR detection, shock detection, SD card life expectancy, cybersecurity events |
| Alarm Events | Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Power Input | IEEE 802.3af PoE Class 0 12VDC 24VAC (optional) |
| Power Consumption | PoE: Max. 8.1 W DC 12V: Max. 7.4 W AC 24V: Max. 7.5 W |
| Dimensions | Ø139 x 104 mm |
| Weight | 538g |
– Bảo hành: 36 tháng.
