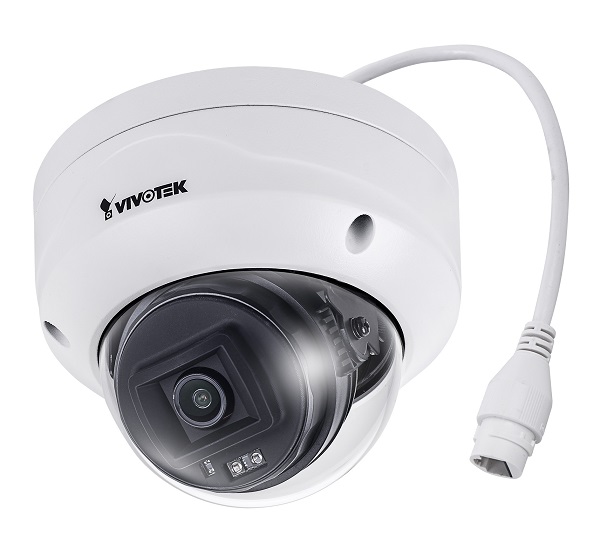

Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek FD9380-H
– Độ phân giải camera ip: 5.0 Megapixel.
Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek FD9380-H
– Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.
– Độ phân giải camera ip: 5.0 Megapixel.
– Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
– Ống kính: f = 2.8 mm/ f = 3.6 mm.
– Tầm quan sát hồng ngoại: 30 mét.
– Công nghệ chống ngược sáng WDR Pro.
– Hỗ trợ chức năng SNV (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
– Hỗ trợ khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
– Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nhiệt độ hoạt động: -30°C ~ 60°C.
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | 1/2.7 inch Progressive CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm/ f = 3.6 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed-iris |
| Field of View |
FD9380-H(2.8mm): 103° (Horizontal) 76° (Vertical) 134° (Diagonal) FD9380-H(3.6mm): 76° (Horizontal) 59° (Vertical) 100° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Minimum Illumination | 0.03 lux @ F2.0 (Color) 0 Lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 75° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Rotation Range | 350° |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 20 fps @ 2560×1920 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 65/67 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation |
| Dynamic Range | 120 dB |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for Network 10/100 Mbps PoE connection*1 |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6.49 W (IR on) Max. 3.69 W (IR off) |
| Dimensions | Ø 117.2 x 89.6 mm |
| Weight | 540 g |
| Casing | IP66, IK10 (Housing) |
| Working Temperature | -30°C ~ 60°C |
– Bảo hành: 24 tháng.
