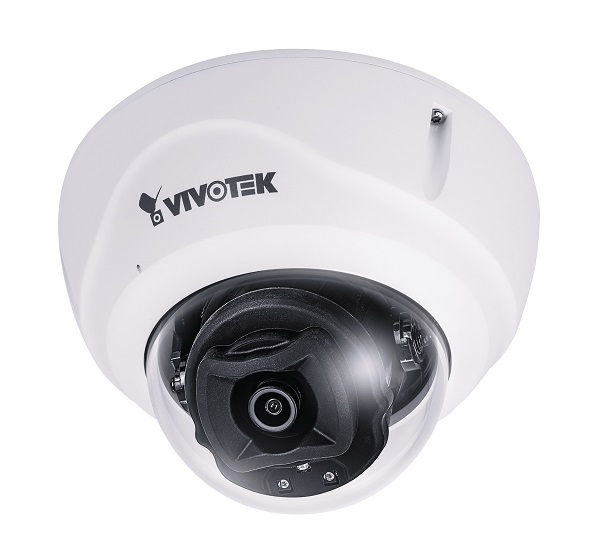

Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek FD9387-HV
– Độ phân giải camera ip: 5.0 Megapixel.
Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek FD9387-HV
– Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.
– Độ phân giải camera ip: 5.0 Megapixel.
– Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
– Ống kính: f = 2.8 mm.
– Tầm quan sát hồng ngoại: 30 mét.
– Công nghệ chống ngược sáng WDR Pro.
– Hỗ trợ chức năng SNV (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
– Chức năng phát hiện chuyển động thông minh và hạn chế báo động giả.
– Hỗ trợ đàm thoại 2 chiều.
– Tiêu chuẩn chống bụi nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nhiệt độ hoạt động: -30°C ~ 50°C.
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | 1/2.7 inch Progressive CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed-iris |
| Field of View | 103° (Horizontal) 76° (Vertical) 134° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Minimum Illumination | 0.06 Lux @ F2.0 (Color) 0 Lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 80° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Rotation Range | 180° |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560×1920 30 fps @ 2560×1440 60 fps @ 1920×1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 54 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, metering |
| Dynamic Range | 120 dB |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, human detection, time filter |
| Smart VCA | Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, shock detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Power Input | IEEE 802.3af PoE Class 0 DC 12V AC 24V (optional) (Redundant Power) |
| Power Consumption | PoE: Max. 8.1 W DC 12V: Max. 7.4 W AC 24V: Max. 7.5 W |
| Dimensions | Ø 155 x 104 mm |
| Weight | 909 g |
| Casing | IP66, IP67, IK10 |
| Operating Temperature | Working Temperature (IR on): -30°C ~ 50°C |
– Bảo hành: 36 tháng.
