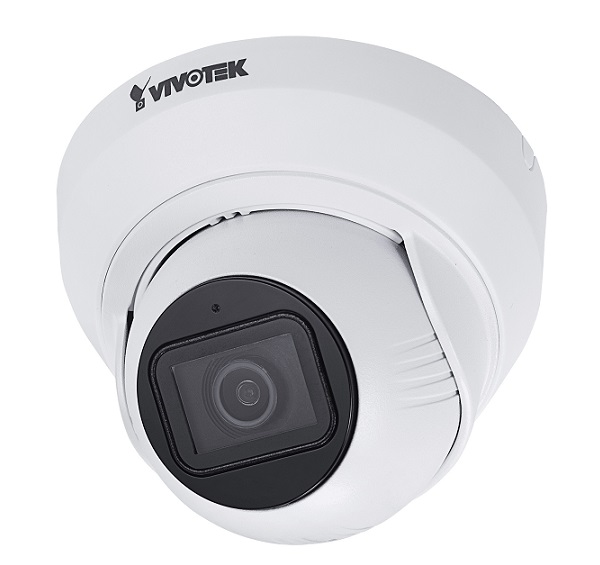

Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek IT9389-H
– Độ phân giải camera ip: 5.0 Megapixel.
Camera IP Dome hồng ngoại 5.0 Megapixel Vivotek IT9389-H
– Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.
– Độ phân giải camera ip: 5.0 Megapixel.
– Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
– Ống kính: Fixed-focal.
– Tầm quan sát hồng ngoại: 30 mét.
– Công nghệ chống ngược sáng WDR Pro.
– Hỗ trợ chức năng SNV (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
– Chức năng phát hiện chuyển động thông minh và hạn chế báo động giả.
– Tích hợp Microphone.
– Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nhiệt độ hoạt động: -20°C ~ 50°C.
Đặc tính kỹ thuật
| Camera Features | ||
| Image Sensor | 1/2.7 inch Progressive CMOS | |
| Max. Resolution | 2560×1920 (5MP) | |
| Lens Type | Fixed-focal | |
| Focal Length | f = 2.8 mm/3.6mm | |
| Aperture | F2.0 | |
| Auto-iris | Fixed-iris | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. | |
| Minimum Illumination |
|
|
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
|
| WDR Technology | WDR Pro | |
| Day/Night | Yes | |
| Removable IR-cut Filter | Yes | |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 | |
| Pan Range | 359° | |
| Tilt Range | 75° | |
| Rotation Range | 180° | |
| Video & Audio | ||
| Video Compression | H.265, H.264, MJPEG | |
| Maximum Frame Rate | 30 fps @ 2560×1920 60 fps @ 1920×1080 |
|
| Maximum Streams | 3 simultaneous streams | |
| S/N Ratio | 53/51dB (2.8mm/3.6mm) | |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III | |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation | |
| Dynamic Range | 120 dB | |
| Audio Capability | One-way Audio | |
| Audio Compression | G.711, G.726 | |
| Audio Interface | Built-in microphone | |
| Network | ||
| Users | Live viewing for up to 10 clients | |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP | |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) | |
| ONVIF | Supported, specification available at www.onvif.org | |
| Solution Integration | ||
| Smart Motion Detection | Five-window video motion detection, human detection, time filter | |
| VCA | Standard VCA (optional) | |
| VADP Package | Trend Micro IoT Security, Smart Motion Detection*, Stratocast (support) | |
| Alarm and Event | ||
| Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, SD card life expectancy, shock detection, cybersecurity events (block brute force attack, block cyber attack, quarantine event) | |
| Alarm Events | Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
|
| General | ||
| Connectors | RJ-45 cable connector for Network 10/100 Mbps PoE connection*1 | |
| LED Indicator | System power and status indicator | |
| Power Input | IEEE 802.3af PoE Class 0 | |
| Power Consumption | Max. 5.5W (Heater on) Max. 4.5W (Heater off) |
|
| Dimensions | Ø 108 x 79 mm | |
| Weight | 332 g | |
| Casing | IP66, IK08 (Metal Housing) | |
| Working Temperature | -20°C ~ 50°C | |
– Bảo hành: 36 tháng.
