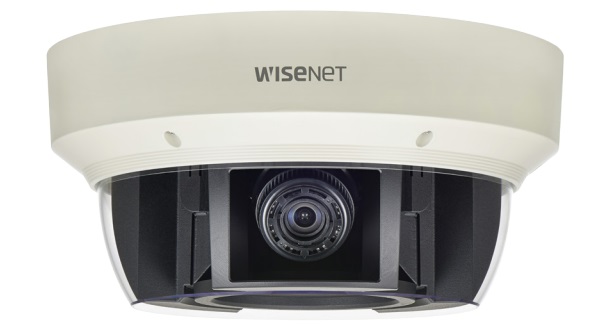

Camera IP Dome Multi 360 độ 20 Megapixel Hanwha Techwin WISENET PNM-9081VQ/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Mã: PNM-9081VQ/VAP Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome Multi 360 độ 20 Megapixel Hanwha Techwin WISENET PNM-9081VQ/VAP

– Cảm biến hình ảnh: 1/1.8 inch CMOS x 4.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Độ phân giải: 20 Megapixel.

– Ống kính: 3.6 ~ 9.4mm (motorized varifocal).

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng giảm nhiễu số SSNRV (2D+3D).

– Chức năng tự động theo dõi chuyển động Motion Detection: Nếu có chuyển động trong khu vực đã quy định, camera sẽ tự động phát hiện sự kiện và thực hiện các hành động đặt từ trước (chụp hình, gửi email, cảnh báo âm thanh, kích hoạt ngõ ra báo động, cảnh bảo trên phần mềm trên điện thoại…). Người dùng có thể điều chỉnh độ nhạy, chọn khu vực phát hiện, đặt thời gian áp dụng phát hiện chuyển động.

– Chức năng vùng che riêng tư Privacy Masking: Là tính năng cho phép che vùng nhất định trên video, không cho người khác xem. Khi xem lại, người quản trị vẫn có thể xem lại toàn bộ hình ảnh (không bị che).

– Chức năng chống sương mù Defog: Giúp khôi phục chi tiết và màu sắc để cho hình ảnh trung thực và tự nhiên. Công nghệ chống sương mù giúp duy trì hình ảnh rõ ràng trong điều kiện thời tiết xấu như mưa, khói bụi hoặc sương mù.

– Chức năng ổn định hình ảnh số DIS với tích hợp cảm ứng Gryo.

– Hỗ trợ LDC.

– Hỗ trợ WiseStreamII.

– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

Đặc tính kỹ thuật

Model	PNM-9081VQ/VAP
VIDEO
Imaging Device	1/1.8 inch CMOS x 4
Total / Effective Pixels	3,096(H) x 2,094(V) 6M x 4 / 2,616(H) x 1,976(V) 5M x 4
Scanning System	Progressive Scan
Min. Illumination	Color : 0.07 Lux (F1.2, 1/30sec), B/W : 0.007 Lux (F1.2, 1/30sec)
S / N Ratio	50dB
Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation (selectable CVBS per Channel)
LENS
Focal Length (Zoom Ratio)	3.6 ~ 9.4mm (2.6x) motorized varifocal
Max. Aperture Ratio	F1.2
Angular Field of View	H : 102.5˚(Wide) ~ 38.7˚(Tele), V : 74.2˚(Wide) ~ 29.0˚(Tele), D : 135.5˚(Wide) ~ 48.6˚(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens / Mount Type	DC Auto Iris, P-Iris / Board-in Type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	Quad mode : ±30˚ / 10˚ ~ 41˚ / ±90˚,
Pan / Tilt / Rotate Range	Center mode : ±60˚ / 10˚ ~ 41˚, 10˚ ~ 90˚(CH2/Center) / ±90˚
OPERATIONAL
Camera Title	Off / On (Displayed up to 85 characters) : Each Ch
	– W/W : English / Numeric / Special Characters
	– China : English / Numeric / Special / Chinese Characters
	– Common : Multi-line (Max 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto Scale by Resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR(Off / On)
Digital Noise Reduction	SSNRV (2D + 3D Noise Filter) (Off / On)
Digital Image Stabilization	Off / On (Built-in Gyro sensor)
Defog	Off / Auto / Manual
Motion Detection	Off / On (8ea, 8point Polygonal zones)
Privacy Masking	Off / On (32ea, polygonal zones)
	– Color : Grey / Green / Red / Blue / Black / White
	– Mosaic
Gain Control	Off / Low / Middle / High / Manual
White Balance	ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
Contrast	Level Adjustment
LDC	Off / On (5 Levels with Min / Max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom	24x
Flip / Mirror	Flip : Off / On, Mirror : Off / On, Hallway View : 90˚ / 270˚
Intelligent Video Analytics	Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter/Exit, (Dis) Appear, Motion Detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm Input, Motion Detection, Video Analytics, Network Disconnect, SD card error
Alarm Events	File upload via FTP, E-Mail, Notification via E-Mail, Local Storage (SD/SDHC/SDXC)
Alarm Events	recording at Event Triggers, External output
Pixel Counter	Support
NETWORK
Ethernet	RJ-45 (10/100/1000BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, Motion JPEG
Resolution	2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240
Max. Framerate	H.265 / H.264: Max. 30fps at all resolutions, Motion JPEG: Max. 30fps
Smart Codec / WiseStreamII	Manual Mode (Area-Based : 5ea) / Support
Video Quality Adjustment	H.265 / H.264 : Target Bitrate Level Control, MJPEG : Quality Level Control
Bitrate Control Method	H.265 / H.264 : CBR or VBR, with WiseStream, MJPEG : VBR
Streaming Capability	Multiple Streaming (Up to 40 Profiles)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP,
Protocol	PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) Login Authentication, Digest Login Authentication
Security	IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	20 users at Unicast Mode
Edge Storage	SD / SDHC / SDXC 4slot (Each CH)
	– Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded.
	Local PC for Instant Recording
Application Programming Interface	ONVIF profile S, SUNAPI (HTTP API)
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
Web Viewer	Supported OS: Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12
	Non-plugin WebViewer
	Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49
	(Windows 64bit only), Apple Safari 9 (Mac OS X only)
	Plug-in WebViewer
	Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only)
ENVIRONMENTAL
Operating Temperature / Humidity	-40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance	IP66 / IK10
ELECTRICAL
Input Voltage / Current	12VDC, HPoE (Injector included)
Power Consumption	Max. 28.8W (12VDC), Max. 33.6W (HPoE)
MECHANICAL
Color / Material	Ivory / Aluminum
Dimensions	Ø314 x 152mm
Weight	4.89kg

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
