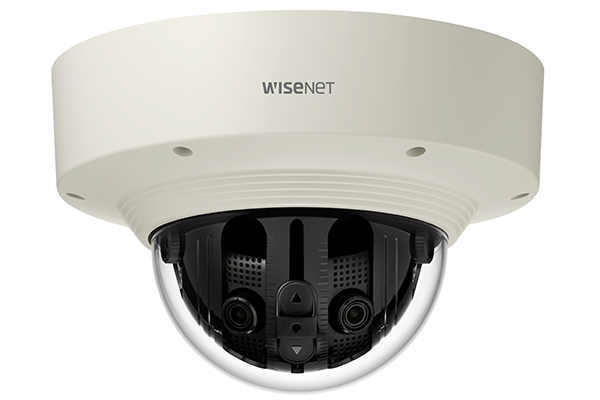

Camera IP Dome Panoramic 180˚ 20 Megapixel Hanwha Techwin WISENET PNM-9030V

– Độ phân giải: 20 Megapixel.

Mã: PNM-9030V Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome Panoramic 180˚ 20 Megapixel Hanwha Techwin WISENET PNM-9030V

– Cảm biến hình ảnh: 1/2.8 inch 5MP CMOSx4.

– Độ phân giải: 20 Megapixel.

– Ống kính: 4mm (Fixed).

– Chức năng camera quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR.

– Chức năng giảm nhiễu số SSNRV.

– Chức năng phát hiện chuyển động Motion Detection.

– Chức năng chống sương mù Defog.

– Chức năng cân bằng ánh sáng trắng ATW.

– Chức năng che vùng riêng tư Privacy Masking.

– Hỗ trợ LDC.

– Hỗ trợ 1 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.

– Hỗ trợ hệ điều hành: Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12.

– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Hỗ trợ chức năng cấp nguồn qua mạng PoE.

– Kích thước: Ø253x165mm.

– Trọng lượng: 3200g.

Features

– Max. 20M 180˚/220˚ panoramic stitching image.

– Panoramic stitching, original, crop view channel.

– H.265 / H.264: Max. 30fps at all resolutions.

– MJPEG: Max. 15fps at under 2Megapixel resolutions.

– H.265, H.264, MJPEG codec, WiseStream II supported.

– Tampering, Loitering, Directional detection, Virtual line, Enter / Exit.

– (Dis) Appear, Audio detection,Motion detection, Handover, Sound classification, Heatmap.

– microSD/ SDHC/ SDXC 2 slots, PoE+, IP66, IK10.

Đặc tính kỹ thuật

Model	PNM-9030V
Video
Imaging Device	1/2.8 inch 5MP CMOSx4
Resolution	[180˚ mode] 6096×2540, 5760×2400, 5472×2280, 5184×2160, 4800×2000, 4560×1900, 4096×1704, 3840×1600, 2688×1120, 2560×1064, 2048×852, 1920×800, 1280×532, 640×264 [220˚ mode] 7744×1936, 6096×1524, 5760×1440, 5472×1368, 5184×1296, 4800×1200, 4560×1140, 4096×1024, 3840×960, 2688x672x 2560×640, 2048×512, 1920×480, 1280×320, 640×160
Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(60Hz/50Hz)
Min. Illumination	Color: 0.15Lux(F2.0, 1/30sec) B/W: 0.01Lux (F2.0, 1/30sec)
Video Out	USB : Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio)	4mm Fixed
Max. Aperture Ratio	F2.0
Angular Field of View	[180˚ mode] H: 180˚, V: 70˚ [220˚ mode] H: 220˚, V: 52˚
Min. Object Distance	3m(9.84ft)
Focus Control	Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0˚~355˚ / 0˚~60˚
Operational
Camera Title	Displayed up to 75 characters
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNRⅤ
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	16ea, rectangle zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view(90˚/270˚)
Analytics	Directional detection, Motion detection,, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence	Heatmap
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output
Network
Ethernet	RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Streaming	Unicast(15 users) / Multicast Multiple streaming(Up to 5 or 3 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface	ONVIF Profile S/G SUNAPI(HTTP API)
General
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage	Micro SD/SDHC/SDXC 1slot 256GB
Memory	8GB RAM, 4GB Flash
Environmental
Operating Temperature / Humidity	-40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-40°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification	IP66, IK10
Input Voltage	PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption	PoE+: Max 25.5W 12VDC: Max 21.0W
Mechanical
Color / Material	Ivory / Aluminum
Dimensions	Ø253x165mm
Weight	3200g

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
