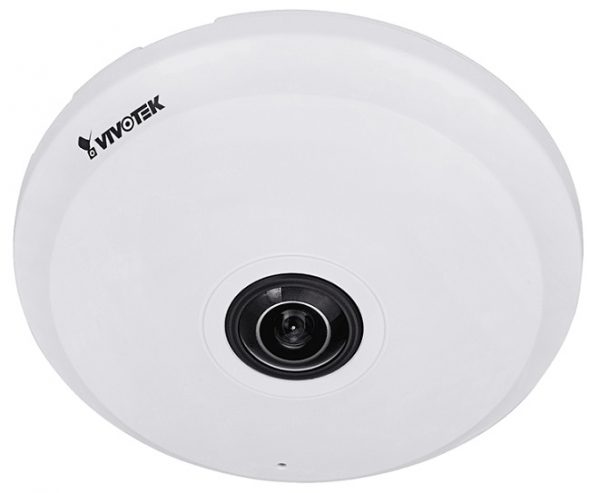

Camera IP Fisheye 12.0 Megapixel Vivotek FE9191
-Bảo hành: 36 tháng.
Camera IP Fisheye 12.0 Megapixel Vivotek FE9191
-Cảm biến hình ảnh: 1/1.7 inch CMOS.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Độ phân giải camera ip: 12 Megapixel.
-Độ nhạy sáng: 0.18 Lux @ F2.2 (Color), < 0.001 Lux @ F2.2 (B/W).
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC.
-Ống kính: 1.29mm.
-Góc quan sát toàn cảnh 360º.
-Góc quan sát theo chiều ngang là: 180º (H), theo chiều dọc là: 180º (V), theo phương chéo: 180º (D).
-Chức năng quan sát Ngày và Đêm.
-Chức năng chống ngược sáng WDR Enhanced.
-Chức năng chống nhiễu số 3DNR.
-Hỗ trợ Smart Stream II.
-Hỗ trợ PPTZ.
-Hỗ trợ Pixel Calculator.
-Hỗ trợ âm thanh: 2 chiều.
-Tích hợp microphone.
-External microphone input, external line output.
-Cổng kết nối: RJ45.
-Hỗ trợ cáp CAT5e và CAT6.
-Digital input/ output: 1/1.
-Hỗ trợ hệ điều hành: Microsoft Windows 8/7.
-Hỗ trợ trình duyệt Web: Internet Explorer 10/11.
-Nguồn điện: 12VDC.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 6.49W.
-Kích thước: Ø 139 x 39 mm.
-Trọng lượng: 345g.
Đặc tính kỹ thuật
| Model | FE9191: 12MP 360º Panomorph Camera |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256MB |
| RAM | 1GB |
| Camera Features | |
| Image Sensor | 1/1.7 inch Progressive CMOS in 4072 x 3046 |
| Max. Resolution | 2992 x 2992 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.29 mm |
| Aperture | F2.2 |
| Field of View | 180° (horizontal) |
| 180° (vertical) | |
| 180° (diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.18 Lux @ F2.2 (Color) |
| < 0.001 Lux @ F2.2 (B/W) | |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 20 fps @ 2992×2992 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 42.9 dB |
| Dynamic Range | 61.8 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, configurable video cropping for bandwidth saving, Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/ contrast/ saturation/ sharpness, pixel calculator, 3D-Noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks, defog, pixel calculator |
| Audio | |
| Audio Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | Built-in microphone |
| External microphone input | |
| External line output | |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, SSL/TLS, ARP, NTCIP, CIFS/SMB |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45). It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card. File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| Audio input x 1 | |
| Audio output x 1 | |
| 12VDC Power input | |
| Digital input x 1 | |
| Digital ouput x 1 | |
| LED Indicator | System power and status indicator |
| Power Input | 12VDC, PoE 802.3af Class 2 |
| Power Consumption | Max. 6.49 W |
| Dimensions | Ø 139 x 39 mm |
| Weight | 345 g |
| Safety Certifications | CE, LVD, VCCI, C-Tick, UL, FCC Class B |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
| Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) | |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
-Bảo hành: 36 tháng.
