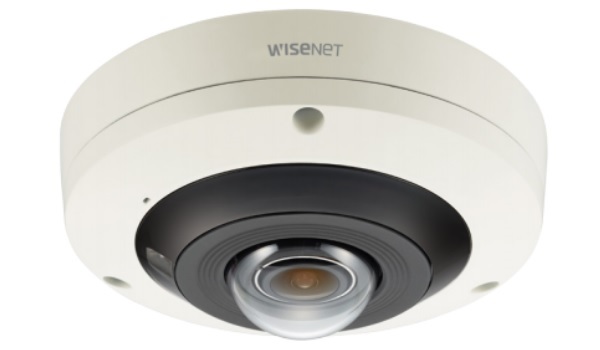

Camera IP Fisheye 4K hồng ngoại 12 Megapixel Hanwha Techwin WISENET PNF-9010R/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Fisheye 4K hồng ngoại 12 Megapixel Hanwha Techwin WISENET PNF-9010R/VAP

– Cảm biến hình ảnh: 1/1.7 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 128GB.

– Ống kính camera ip: 2.1mm (fixed).

– Góc quan sát theo chiều ngang: 180º, theo chiều dọc: 180º, theo phương chéo: 180º.

– Zoom số: 16x.

– Tầm quan sát hồng ngoại: 15 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống sương mù Defog.

– Chức năng phát hiện chuyển động: Off / On (8ea polygonal zones).

– Chức năng phát hiện vùng riêng tư: Off / On (8ea, Polygonal) – Color: Gray / Green / Red / Blue / Black / White.

– Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).

– Chức năng giảm nhiễu số 2D + 3D.

– Chức năng điều chỉnh độ lợi AGC.

– Chức năng phân tích Video thông minh.

– Chức năng đếm số người (People counting).

– Nguồn điện cung cấp: 12VDC ± 10%.

– Chức năng cấp nguồn qua mạng PoE.

– Công suất tiêu thụ: 12VDC: Max. 11W, PoE: 12W.

– Kích thước: Ø146.0 x 63.4mm.

– Trọng lượng: 805g.

Đặc tính kỹ thuật

Video
Imaging Device	1/1.7 inch 12.4M CMOS
Total Pixels	4,168 x 3,062
Effective Pixels	2,992 x 2,992
Scanning System	Progressive
Min. Illumination	Color: 0.3Lux (F2.2, 30IRE), B/W: 0Lux (IR LED on)
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 714 x 480(N), 702 x 576(P), for installation
Video Output	DIP connector type
Lens
Focal length/ Max. Aperture Ratio	2.1mm fixed / F2.2
Angular Field of View	H: 180° / V: 180° / D: 180°
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus / Manual – Remote control via network
Lens / Mount Type	Fixed lens / Board type
Operation
IR LED / Viewable Length	15m (49.21ft)
Camera Title	Off / On (Displayed up to 60 characters)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC/ WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSDR (Off/ On)
Digital Noise Reduction	SSNR (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (8ea polygonal zones)
Privacy Masking	Off / On (8ea, Polygonal) – Color: Gray / Green / Red / Blue / Black / White
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Digital Zoom	16x, Digital PTZ (Preset, Group)
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection with metadata
Alarm I/O	Input 1ea/ Output 1ea
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output
Viewing Composition	Camera side: Fisheye, Single panorama, Double panorama, Fisheye + 4 PTZ
Viewing Composition	Quad view, Fisheye + 8 PTZ
Pixel Counter	Support (Plug-in viewer only
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265/H.264/MJPEG
Resolution	Fisheye: 4000 x 3000, 2992 x 2992, 2560 x 2560, 2048 x 2048, 1280 x 1280, 640 x 640
	Double panorama: 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360
	Single panorama: 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 360
	Quad view: 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480
Max. Frame rate	H.265/H.264: 20fps@4000 x 3000, 25fps@under 2992 x 2992, MJPEG: Max. 15fps
Smart Codec	Manual mode (Area-based: 5ea)
Video Quality Adjustment	H.265 / H.264: Target bitrate level control, MJPEG: Quality level control
Bitrate Control Method	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in / Built-in mic)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out	Line out (3.5mm mono jack), Max output level: 1 Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz,
Audio Compression Format	G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz
Audio Communication	Bi-directional
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Edge Storage	SD/SDHC/SDXC (up to 128GB)
	– Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded
	– Camera can detect automatically when the memory is connected
	– Memory status display (normal/error/active/formatting/lock)
	NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API) v2.0, Wisenet Open Platform
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11. Plug-in free Webviewer
	– Supported Browser: Google Chrome 47, MS Edge 20. Plug-in Webviewer
	– Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only
Central Management Software	SmartViewer
ELECTRICAL
Input Voltage / Current	12VDC ±10%, PoE (IEEE802.3af, Class3)
Power Consumption	12VDC: Max. 11W, PoE: 12W
Color / Material	Ivory / Plastic
Dimensions	Ø146.0 x 63.4mm
Weight	805g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
