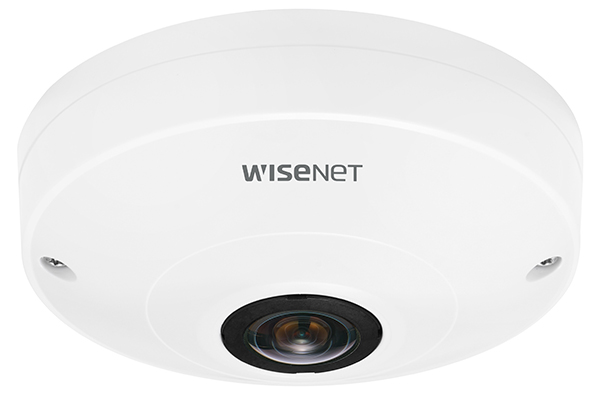

Camera IP Fisheye 6.0 Megapixel Hanwha Techwin WISENET QNF-8010

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Mã: QNF-8010 Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Fisheye 6.0 Megapixel Hanwha Techwin WISENET QNF-8010

– Cảm biến hình ảnh: 1/1.8 inch 6MP CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Độ phân giải: Max. 2048 x 2048 resolution.

– Ống kính: 1.14mm (fixed focal).

– Góc quan sát: H: 187° / V: 187° / D: 187°.

– Chức năng chống ngược sáng WDR 120dB.

– Hỗ trợ WiseStreamII.

– Hỗ trợ Digital PTZ.

– Chức năng đếm số lượng người People counting.

– Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.

– Chức năng cấp nguồn qua mạng PoE.

– Kích thước: Ø99 x 49mm.

– Trọng lượng: 370g.

– Chất liệu/ màu sắc: Plastic/ White.

Đặc tính kỹ thuật

Model	QNF-8010
Video
Imaging Device	1/1.8 inch 6MP CMOS
Resolution	Original view: 2048×2048, 1280×1280, 1080×1080, 960×960, 768×768, 720×720, 640×640, 480×480
	Single panorama: 2048×512, 1920×480, 1280×320, 640×160, 704×176
	Double panorama: 2048×1024, 1920×960, 1280×640, 640×320, 704×352
	Quad view: 2048×1536, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 704×576
	Q1/2/3/4: 1024×768, 800×600, 640×480
Max. Framerate	H.264/H.265 : 30fps/25fps@2048×2048(60Hz/50Hz)
Max. Framerate	MJPEG : Max 15fps
Min. Illumination	Color: 0.2 Lux (F2.5, 1/30sec)
Video Out	CVBS : 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for Installation
Lens
Focal Length (Zoom Ratio)	1.14mm fixed focal
Max. Aperture Ratio	F2.5
Angular Field of View	H: 187° / V: 187° / D: 187°
Min. Object Distance	0.3m
Operational
Camera Title	Displayed up to 85 characters
Day & Night	Auto (Electrical)
Backlight Compensation	BLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNRⅤ
Motion Detection	8ea, polygonal zones
Privacy Masking	6ea, Rectangle zones
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror
Analytics	Defocus detection, Motion detection, Tampering
Business Intelligence	People counting, Heatmap
Alarm Triggers	Analytics, Network disconnect
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
Network
Ethernet	RJ-45(10/100BASE-T)
Video Compression	H.265/H.264: Main/High, MJPEG
Smart Codec	Manual (5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR
Bitrate Control	MJPEG: VBR
Streaming	Unicast (6 users) / Multicast
Streaming	Multiple streaming(Up to 3 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Security	HTTPS(SSL) Login Authentication
	Digest Login Authentication
	IP Address Filtering
	User access log
	802.1X Authentication(EAP-TLS, EAP-LEAP)
	Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface	ONVIF Profile S/G/T
	SUNAPI (HTTP API)
	Wisenet open platform
General
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
	Recommended Browser: Google Chrome
	Supported Browser: MS Explore11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage	Micro SD/SDHC/SDXC 1slot 256GB
Memory	1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity	-10°C ~ +40°C(+14°F ~ +104°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification	IP42
Input Voltage	PoE(IEEE802.3af, Class3)
Power Consumption	PoE: Max 6.4W, typical 6.4W
Mechanical
Color / Material	White / Plastic
RAL Code	RAL9003
Dimensions	Ø99x49mm
Weight	320g

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.

Camera IP Fisheye 6.0 Megapixel Hanwha Techwin WISENET QNF-8010
