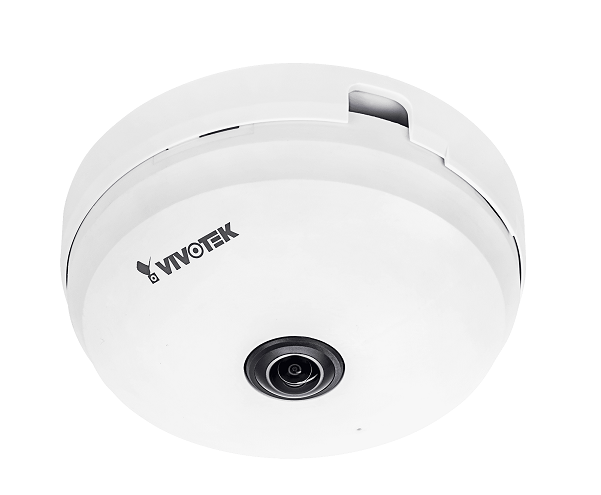

Camera IP Fisheye hồng ngoại 5.0 Megapixel Vivotek FE9180-H
– Độ phân giải camera ip: 1920×1920.
Camera IP Fisheye hồng ngoại 5.0 Megapixel Vivotek FE9180-H
– Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.
– Độ phân giải camera ip: 1920×1920.
– Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
– Ống kính: 1.16 mm.
– Công nghệ chống ngược sáng WDR Pro.
– Tích hợp Microphone.
– Hỗ trợ khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
– Tích hợp PoE chuẩn 802.3af.
Đặc tính kỹ thuật
| Camera Features | ||
| Image Sensor | 1/2.7 inch Progressive CMOS | |
| Max. Resolution | 1920×1920 | |
| Lens Type | Fixed-focal | |
| Focal Length | f = 1.16 mm | |
| Aperture | F2.25 | |
| Auto-iris | Fixed-iris | |
| Field of View |
|
|
| Shutter Time | 1/5 sec. to 1/32,000 sec. | |
| Minimum Illumination |
|
|
| Pan/Tilt/Zoom Functionalities | ePTZ: 12x digital zoom (12x on IE plug-in) | |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
|
| WDR Technology | WDR Pro | |
| Video & Audio | ||
| Video Compression | H.265, H.264, MJPEG | |
| Maximum Frame Rate | 15 fps @ 1920×1920 | |
| Maximum Streams | 4 simultaneous streams | |
| S/N Ratio | 63.9 dB | |
| Dynamic Range | 87 dB | |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III | |
| Image Settings | Timestamp, text overlay, flip & mirror, configurable brightness/ contrast/ saturation/ sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, video rotation, defog, pixel calculator | |
| Audio Capability | One-way Audio | |
| Audio Compression | G.711, G.726 | |
| Audio Interface | Built-in microphone | |
| Network | ||
| Users | Live viewing for up to 10 clients | |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP | |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) | |
| ONVIF | Supported, specification available at www.onvif.org | |
| Solution Integration | ||
| Video Motion Detection | Five-window video motion detection | |
| Alarm and Event | ||
| Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy | |
| Alarm Events | Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
|
| General | ||
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection | |
| LED Indicator | System power and status indicator | |
| Power Input | IEEE 802.3af PoE Class 1 | |
| Power Consumption | Max. 3.6 W | |
| Dimensions | 94 x 39 mm | |
| Weight | 140g | |
| Working Temperature | -10°C ~ 50°C | |
– Bảo hành: 24 tháng.
