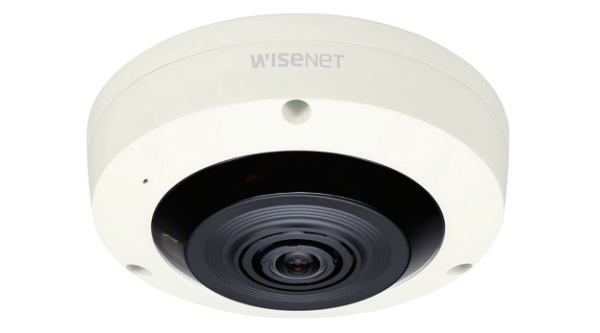

Camera IP Fisheye hồng ngoại 6 Megapixel Hanwha Techwin WISENET XNF-8010R/VAP

– Độ phân giải camera ip: 6.0 Megapixel (2048 x 2048).

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Fisheye hồng ngoại 6 Megapixel Hanwha Techwin WISENET XNF-8010R/VAP

– Cảm biến hình ảnh: 1/1.8 inch CMOS.

– Độ phân giải camera ip: 6.0 Megapixel (2048 x 2048).

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 512GB.

– Độ nhạy sáng: 0.1 Lux (F1.6), B/W: 0 Lux (IR LED On).

– Ống kính cố định: 1.6mm.

– Zoom số: 8x.

– Góc quan sát theo chiều ngang: 192°.

– Góc quan sát theo chiều dọc: 192°.

– Góc quan sát theo phương chéo: 192°.

– Tầm quan sát hồng ngoại: 15 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR.

– Chức năng giảm nhiễu số SSNRV (2D+3D Noise filter).

– Chức năng ổn định hình ảnh DIS.

– Chức năng chống sương mù Defog.

– Chức năng cân bằng ánh sáng trắng ATW.

– Chức năng thông minh: Tự động theo dõi, tích hợp sẵn, phát hiện đối tượng lảng vảng, bản đồ nhiệt, đếm người, quản lý xếp hàng, phát hiện can thiệp, giả mạo, phát hiện âm thanh.

– 1 ngõ vào báo động, 1 ngõ ra báo động.

– Ethernet: RJ-45 (10/100 BASE-T).

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC ±10%, PoE (IEEE802.3af, Class3).

– Công suất tiêu thụ: Max. 11W (12VDC), Max. 12W (PoE).

– Kích thước: Ø146 x 54.8mm.

– Trọng lượng: 730g.

Đặc tính kỹ thuật

Video
Imaging Device	1/1.8 inch 6M CMOS
Total Pixels	3,096(H) x 2,094(V)
Effective Pixels	2,048(H) x 2,048(V)
Scanning System	Progressive
Min. Illumination	Color: 0.1 Lux (F1.6), B/W: 0 Lux (IR LED On)
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 714 x 480(N), 702 x 576(P), for installation
Video Output	DIP connector type, USB
Lens
Focal length/ Max. Aperture Ratio	1.6mm / F1.6
Angular Field of View	H: 192° / V: 192° / D: 192°
Min. Object Distance	0.3m (0.98ft)
Focus Control	Simple focus / Manual – Remote control via network
Lens / Mount Type	Fixed lens / Board type
Operation
IR LED / Viewable Length	15m (49.21ft)
Camera Title	Off / On (Displayed up to 85 characters)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC/ WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSDR (Off/ On)
Digital Noise Reduction	SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto (input from fog detection)/ Manual
Motion Detection	Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking	Off / On (32ea, polygonal) – Color : Gray, Green, Red, Blue, Black, White – Mosaic
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom	8x, Digital PTZ (Preset, Group)
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection with metadata
Alarm I/O	Input 1ea/ Output 1ea
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output
Viewing Composition	Camera side: Fisheye, Single panorama, Double panorama, Fisheye + 4 PTZ
Viewing Composition	Quad view, Fisheye + 8 PTZ
Pixel Counter	Support
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265/H.264/MJPEG
Resolution	Original view: 2048 x 2048, 1280 x 1280, 1080 x 1080, 960 x 960, 768 x 768, 720 x 720, 640 x 640, 480 x 480
	Single panorama: 2048 x 512, 1920 x 480, 1280 x 320, 640 x 160, 704 x 176
	Double panorama : 2048 x 1024, 1920 x 960, 1280 x 640, 640 x 320, 704 x 352
	Quad View : 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 704 x 576 [Q1 / 2 / 3 / 4] 1024 x 768, 800 x 600, 640 x 480
Max. Frame rate	H.265 / H.264: 30fps@2,048 x 2,048, MJPEG: Max. 15fps
Smart Codec	Manual mode (Area-based: 5ea)/ Support
Video Quality Adjustment	H.265 / H.264: Target bitrate level control, MJPEG: Quality level control
Bitrate Control Method	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in / Built-in mic)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out	Line out (3.5mm mono jack), Max output level: 1 Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz,
Audio Compression Format	G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz
Audio Communication	Bi-directional (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Edge Storage	SD/SDHC/SDXC 2slot (up to 512GB) – Continuous recording (1st slot to 2nd slot)
	– Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded
	– Camera can detect automatically when the memory is connected
	– Memory status display (normal/error/active/formatting/lock)
	NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API) v2.0, Wisenet Open Platform
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11. Plug-in free Webviewer
	– Supported Browser: Google Chrome 47, MS Edge 20. Plug-in Webviewer
	– Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only
Central Management Software	SmartViewer
ELECTRICAL
Input Voltage / Current	12V DC ±10%, PoE (IEEE802.3af, Class3)
Power Consumption	12VDC: Max. 11W, PoE: 12W
Color / Material	Ivory / Aluminum
Dimensions	Ø146 x 54.8mm
Weight	730g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
