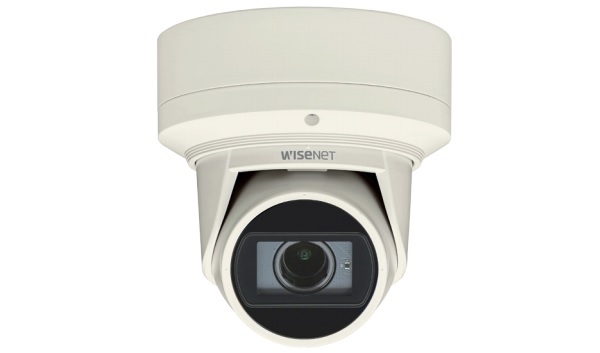

Camera IP Flateye hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET QNE-6080RV/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Flateye hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET QNE-6080RV/VAP

– Cảm biến hình ảnh: 1/2.9 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ micro SD / SDHC / SDXC dung lượng lưu trữ 128GB.

– Độ phân giải camera ip: 2.0 Megapixel.

– Độ nhạy sáng: 0.2Lux@F1.6 (Color), 0Lux (B/W).

– Ống kính: 3.2~10mm (motorized varifocal).

– Tầm quan sát hồng ngoại: 30 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng phát hiện chuyển đổng Motion detection.

– Hỗ trợ WiseStream.

– Hỗ trợ LDC.

– Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

– Công suất tiêu thụ: Max. 8.3W (PoE), Max. 7.6W (12VDC).

– Kích thước: Ø144.9 x 135.5mm.

– Trọng lượng: 1.3kg.

– Màu sắc và chất liệu: Ivory / Metal.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.9 inch 2MP CMOS
Effective Pixels	2,000(H) x 1,121(V)
Min. Illumination	Color: 0.2Lux
Min. Illumination	BW: 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio)	3.2~10mm (3.1x) motorized varifocal
Max. Aperture Ratio	F1.6
Angular Field of View	H : 104.2°(Wide) ~ 31.2°(Tele) / V : 55.1°(Wide) ~ 17.5°(Tele) / D : 124.3°(Wide) ~ 35.8°(Tele)
Focus Control	Simple focus (Motorized V/F), Manual, Remote control via network
Lens Type	DC Auto Iris
Mount Type	Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0˚~350˚ / 0˚~70˚ / 0˚~360˚
Operational
IR Viewable Length	30m(98.43ft)
Camera Title	Off / On (Displayed up to 20 characters per line)
	– W / W : English / Numeric / Special characters
	– China : English / Numeric / Special / Chinese characters
	– Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	BLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR (Off/ On)
Motion Detection	Off / On (4ea polygonal zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Video Rotation	Flip, Mirror, Hallway view
Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via
	E-mail, External output
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
	Alarm output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45(10/100BASE-T)
Video Compression	H.265/H.264, MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720,
Resolution	1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265 / H.264: Max. 30fps at 2M all resolutions, MJPEG: Max. 15fps
Smart Codec	WiseStream
Video Quality Ajustment	H.265 / H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control	H.265 / H.264: CBR or VBR, MJPEG: VBR
Streaming	Multiple streaming (Up to 3 profiles)
Audio I/O	G.711 u-law /G.726 Selectable
	G.726(ADPCM) 8KHz, G.711 8KHz
	G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security	HTTPS (SSL) Login Authentication
	Digest Login Authentication
	IP Address Filtering
	User access log
	802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage	micro SD / SDHC / SDXC (Max. 128GB), NAS
	– Motion images recorded in the SD memory card can be downloaded
	– Manual recording at local PC
Application Programming Interface	ONVIF Profile S/G
Application Programming Interface	SUNAPI(HTTP API)
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
	Recommended Browser: Google Chrome
	Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Central Management Software	SmartViewer
Environmental
Operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Certification	IP66, IK10
Electrical
Input Voltage	PoE (IEEE802.3af, Class3), 12VDC
Power Consumption	PoE: Max 8.3W
Power Consumption	12VDC: Max 7.6W
Mechanical
Color / Material	Ivory / Metal
Dimensions	Ø144.9 x 135.5mm
Weight	1.3kg

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
