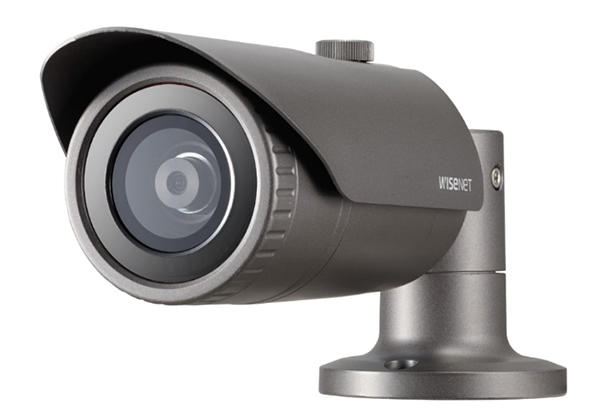

Camera IP hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QNO-7020R/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP hồng ngoại 4.0 Megapixel Hanwha Techwin WISENET QNO-7020R/VAP

– Cảm biến hình ảnh: 1/3 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng tối đa 128GB.

– Độ phân giải camera ip: 4.0 Megapixel.

– Độ nhạy sáng: (Color) 0.4Lux, B/W: 0 Lux (IR LED ON).

– Ống kính cố định: 3.6mm.

– Góc quan sát theo chiều ngang: 81.0º, theo chiều dọc: 45.0˚, theo chiều ngang: 95.0º.

– Tầm quan sát hồng ngoại: 25 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng phát hiện chuyển động: Off / On (4ea polygonal zones).

– Chức năng vùng riêng tư: Off / On (6ea rectangular zones).

– Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).

– Chức năng giảm nhiễu số SSNR.

– Chức năng LDC (Lens Distortion Correction): Off / On (5 levels with min / max) Off / On (5 levels with min / max).

– Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nguồn điện: 12VDC.

– Chức năng cấp nguồn qua mạng PoE.

– Công suất tiêu thụ: Tối đa 7W (PoE), tối đa 6W (12VDC).

– Kích thước: Ø70 x 246mm.

– Trọng lượng: 730g.

Đặc tính kỹ thuật

Video
Imaging Device	1/3 inch 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive
Min. Illumination	Color: 0.4Lux, B/W: 0Lux (IR LED on)
Focal length (Zoom Ratio)	3.6mm fixed
Max. Aperture ratio	F2.2
Angular Field of View	H: 81.0º / V: 45.0º / D: 95.0º
Lens Type	Fixed
Mount Type	Board type
Operation
IR LED / Viewable Length	25m
Camera Title	Off / On (Displayed up to 20 characters)
	– W/W: English / Numeric / Special characters
	– China: English / Numeric / Special / Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC/ WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSDR (Off/ On)
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4ea polygonal zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1/ Output 1
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265, H.264, MJPEG
Resolution	2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Frame rate	H.265/H.264: Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG: Max. 15fps
Smart Codec	WiseStream
Video Quality Adjustment	H.265 / H.264: Target bitrate level control, MJPEG: Quality level control
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio In/ out	Line in
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Edge Storage	Micro SD/SDHC/SDXC max. 128G, NAS
	– Motion images recorded in the SD memory card can be downloaded
	– Manual recording at local PC
Application Programming Interface	ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11. Plug-in free Webviewer
	– Supported Browser: Google Chrome 47, MS Edge 20. Plug-in Webviewer
	– Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only
Central Management Software	SmartViewer
Ingress Protection / Vandal Resistance	IP66/ IK10
ELECTRICAL
Input Voltage / Current	12VDC, PoE (IEEE802.3af, Class3)
Power Consumption	Max. 7W (PoE), Max. 6W (12VDC)
Color / Material	Dark gray/ Metal
Dimensions	Ø70.0 x 246.0mm
Weight	730g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
