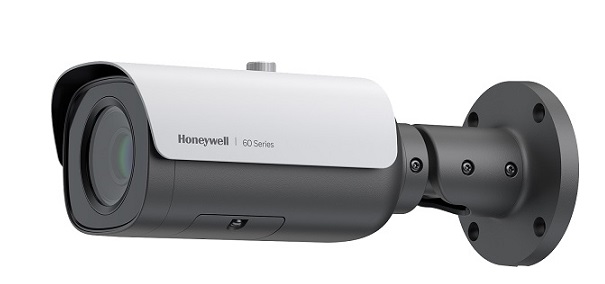

Camera IP hồng ngoại 5.0 Megapixel HONEYWELL HC60WB5R2
– Độ phân giải camera ip: 5.0 Megapixel.
Camera IP hồng ngoại 5.0 Megapixel HONEYWELL HC60WB5R2
– Cảm biến hình ảnh: 1/ 2.8-inch CMOS (5.18 x 3.89 mm).
– Độ phân giải camera ip: 5.0 Megapixel.
– Ống kính: Remote Focus, 2.7 ~ 13.5 mm, MFZ, P-IRIS, F1.4 ~ F2.8.
– Tốc độ khung hình: Lên đến 60 fps.
– Độ nhạy sáng tối thiểu: 0.04 Lux/ 0Lux (@F1.4, IR on).
– Hỗ trợ Micro SD/ SDHC/ SDXC card slot (up to 256 GB), SD Card encryption.
– Tầm quan sát hồng ngoại: 60 mét.
– Chuẩn nén hình ảnh: H.265 HEVC/ H.264/ MJPEG, Smart Codec.
– Tiêu chuẩn chống nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Hỗ trợ chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 12 VDC/ 24 VAC.
Đặc tính kỹ thuật
| Model | HC60WB5R2 |
| OPERATIONAL | |
| Video Standard | NTSC/ PAL |
| Scanning System | Progressive |
| Image Sensor (Size: H x V) | 1/ 2.8-inch CMOS (5.18 x 3.89 mm) |
| Number Of Pixels (H × V) | 5MP (2560 x 1920) |
| Min. illumination (Color/B&/W) | 0.04 Lux/ 0Lux (@F1.4, IR on) |
| S/N Ratio | 60 dB |
| Electronic Shutter Speed | 1/32000 ~ 1/30 |
| IR Distance | Up to 60 m (197 ft) |
| IR Light Control | Smart IR (Auto/ Manual)/ OFF, External IR trigger by output |
| IR Light Number | 4 |
| Removable IR-Cut Filter | Yes |
| Day/Night | Auto/ Day/ Night/ Synchronize with digital input/ Schedule |
| Backlight Compensation | WDR, HLC |
| White Balance | Auto/ Fixed Current/ Manual |
| Gain Control | 0-100 % |
| Wide Dynamic Range | >120 dB |
| Noise Reduction | 3D DNR |
| Lens | Remote Focus, 2.7 ~ 13.5 mm, MFZ, P-IRIS, F1.4 ~ F2.8 |
| Angle Of View | H: 100° ~ 30°, V: 72° ~ 23 |
| G-Sensor | Support Camera Direction OSD Display (Default – Off) |
| Privacy Masking | Off/ On (5 Areas) |
| Defog | Support |
| Encryption Chipset | Built-in FIPS encryption Chipset |
| Local Storage | Micro SD/ SDHC/ SDXC card slot (up to 256 GB), SD Card encryption |
| Micro USB | Support Wifi Dongle for configuration |
| Alarm Inputs/ Outputs | 2 In/ 1 Relay Out |
| VIDEO | |
| Video Compression | H.265 HEVC / H.264 / MJPEG, Smart Codec |
| Resolution (16/9) | 2560 x 1440/ 1920 x 1080/ 1600 x 904/ 1360 x 768/ 1280 x 720/ 640 x 360 |
| Resolution (4/3) | 2560 x 1920/ 1600 x 1200/ 1280 x 960/ 640 x 480 |
| Number of Video Streams | 3 |
| Frame Rate Main Stream & Frame Rate Second Stream | 2560 x 1440/ 1920 x 1080/ 1600 x 904/ 1360 x 768/ 1280 x 720/ 640 x 360 (1-25/30 fps), 1920 x 1080/ 1600 x 904/ 1360 x 768/ 1280 x 720/ 640 x 360 (1-50/60 fps), 2560 x 1440 (1-50 fps) |
| Frame Rate Third Stream | 1280 x 960/ 640 x 480 (1-25/30 fps) 1280 x 720/ 640 x 360 (1-50/60 fps) |
| Bit Rate (Control) | 20 K ~ 80 Mbps |
| AUDIO | |
| Audio Compression | G.711a/ G.711 Mu/ G.726 |
| Audio Stream | Full duplex, simplex |
| Audio Interface | Line In/ Out |
| NETWORK | |
| Ethernet | 10 Base-T/ 100 Base-TX Ethernet (RJ-45) |
| Supported Web Browsers | Chrome 79.0 Internet Explorer 11 |
| Supported OS | Microsoft Windows 10 |
| Protocols | IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP/ Multicast, CIFS/ SMB, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interoperability | ONVIF Profile G/ S |
| Maximum Users Access | 10 Users |
| Security | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/ 256, SSH/ Telnet closed, PCIDSS compliance, FIPS Chipset Built-In |
| Languages Supported | English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese |
| EVENTS/ ANALYTICS | |
| Built-in Video Analytics | Intrusion, Loiter, Line crossing, Unattended object, Missing object, Face detection |
| Event type | Video motion detection, Periodically, Alarm input, System boot, Recording notification, Camera tampering detection |
| Event linkage | Event notification using digital output, HTTP, Email and MicroSD card |
| Region Of Interest | 5 |
| ELECTRICAL | |
| Power Supply | 12 VDC/ 24 VAC (50/ 60Hz), Heat On: PoE (IEEE 802.3 at, Class 4), Heat Off: PoE (IEEE 802.3 at, Class 3), Auto Sensing |
| Power Consumption | MAX 25.5W |
| Alarm Inputs/ Outputs | 2 In/ 1 Relay Out |
| MECHANICAL | |
| Dimensions (D x D x L) | 105.5 mm x 110.6 mm x 288.6 mm (4.2’’ x 4.4’’ x 11.4’’) |
| Product Weight | 1.75 kg (3.86 lb) |
| Package Weight | 1.78 kg (3.92 lb) |
| Body Material | Metal (die casting aluminum with powder coating) |
| Construction Color | RAL 120-1 (Lyric White) |
| ENVIRONMENTAL | |
| Operating Temperature | Starting and Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (802.3at PoE Class 4) |
| Relative Humidity | Less than 90 %, non-condensing |
| Ingress Protection | IP66/ IP67/ NEMA 4X |
| Impact Resistance | IK10 |
| Heater/ Gore-Vent | Yes/ Yes |
| REGULATORY | |
| Emissions | FCC PART 15, CE (EN 55032) |
| Immunity | CE (EN 50130-4) |
| Safety | UL LISTED TO UL / CSA 62368-1, CE (EN 62368-1), UL/ CSA 60950-22, CE (EN 60950-22) |
| RoHS | CE (EN 50581), EAC (TR EAEU 037 / 2016), UAE (Cabinet Decree No.10 of 2017 |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
