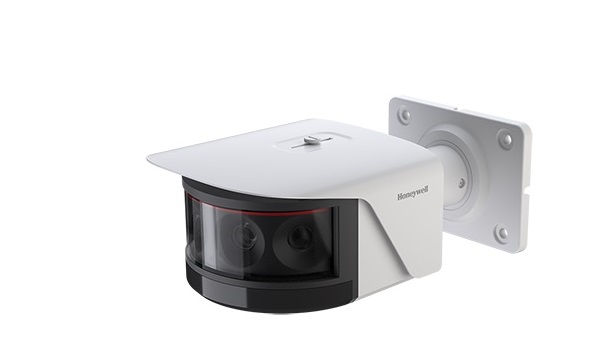

Camera IP hồng ngoại 8.0 Megapixel HONEYWELL HMBL8GR1
– Độ phân giải camera ip: 8.0 Megapixel.
Camera IP hồng ngoại 8.0 Megapixel HONEYWELL HMBL8GR1
– Cảm biến hình ảnh: Four 1/2.8-inch 2 MP progressive CMOS.
– Độ phân giải camera ip: 8.0 Megapixel.
– Ống kính: Four 3.0 mm, M12, fixed lenses.
– Tốc độ khung hình: Lên đến 30 fps.
– Tầm quan sát hồng ngoại: 30 mét.
– Độ nhạy sáng tối thiểu: 0.008 lux color @ F2.1, 0 lux B/W (IR LEDs on) @ F2.1.
– Thẻ nhớ: Up to 128 GB microSDHC card, Class 10 (not included).
– Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
– Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn va đập: IK10.
– Hỗ trợ chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 24VAC.
Đặc tính kỹ thuật
| Model | HMBL8GR1 |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | Four 1/2.8-inch 2 MP progressive CMOS |
| Number Of Pixels (H × V) | 4096 × 1800 |
| Minimum Illumination | 0.008 lux color @ F2.1, 0 lux B/W (IR LEDs on) @ F2.1 |
| S/N Ratio | ≥ 50 dB |
| Electronic Shutter Speed | Auto, Manual, 1/3 – 1/100,000 s |
| IR Distance | Up to 30 m (98 ft.), depending on scene reflectance |
| Number Of IR Leds | 8 |
| Day/Night | Auto (ICR)/Color/BW |
| Backlight Compensation | BLC/HLC/DWDR |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | Up to 4 configurable areas |
| Lens | Four 3.0 mm, M12, fixed lenses |
| Angle Of View | Horizontal: 180°; Vertical: 80° |
| Audio/Two-Way | Line In/Out |
| Alarm Input/Output | 2/2 |
| Ethernet | RJ-45 (100/1000Base-T) |
| Start-Up Time | 60 seconds |
| IP SPECIFICATIONS | |
| Video Compression | H.265/H.264/MJPEG; Bit rate control (CBR and VBR) |
| Resolution | 4096×1800/3840×1680/2880×1264/1024×452/1920×832/1280×560 |
| Frame Rate | – Main stream: 4096×1800 / 3840×1680 / 2880×1264 at 1–25 fps – Sub stream: 1024×452 up to 25/30 fps – Third stream: 1920×832 / 1280×560 up to 25/30 fps |
| Audio Compression | G.711a/G.711Mu/AAC/G.726 |
| Audio Stream | Full duplex, simplex |
| Supported Web Browsers | Internet Explorer® (11.0+), Firefox, Chrome |
| Supported OS | Windows® 7 32-bit/64-bit |
| Compatibility | ONVIF Profile S, G and Q |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP v2c/v3, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, Multicast, ONVIF |
| Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCI-DSS compliance, Hardware chipset for private key |
| Maximum Users Access | 20 users |
| Event | No SD card, SD card error, SD card capacity warning, Network disconnection, IP address conflict, Illegal access, Face detection, Audio detection, Video tampering, Motion detection |
| Event Notification | Record (SD card and FTP), Relay output, Email, Snapshot |
| Video Analytics | Embedded Analytics: Face detection, Audio detection, Video tampering, Motion detection |
| Micro SD | Up to 128 GB microSDHC card, Class 10 (not included) |
| Micro SD Function | – Event trigger recording – Continuous and scheduled recording – Automatic recording when network fails |
| ELECTRICAL | |
| Power Supply | PoE+ (802.3at) Class 4, 24 VAC |
| AC Frequency | 50/60 Hz |
| Power Consumption | 25 W max. (IR LEDs on) |
| MECHANICAL | |
| Dimensions | 298.0 mm × 171.0 mm × 120.0 mm (11.7′ × 6.7′ × 4.7′) |
| Product Weight | 2.9 kg (6.4 lb.) |
| Package Weight | 3.7 kg (8.2 lb.) |
| Optimum Installation Distance | > 5.0 m (16.4 ft.), depending on the installation angle and the object size |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Color | RAL 9003 (White) |
| ENVIRONMENTAL | |
| Operating Temperature | –40°C to 60°C (–40°F to 140°F) |
| Relative Humidity | Less than 95%, non-condensing |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| REGULATORY | |
| Emissions | EN55032, ANSI C63.4-2014, ICE 003 Rev6, AS/NZ CISPR 32:2013 |
| Immunity | EN50130-4 |
| Safety | EU: EN60950-1, EN60950-22 North America UL listed to UL/CSA 60950-1, 60950-22 |
| RoHS | EN50581 |
| HONEYWELL DEVICE INTEGRATION | |
| Maxpro NVR Family | Entry to Enterprise Level Network Video Recorders (version 4.50 and greater) |
| Maxpro VMS Family | Entry to Enterprise Level Network Video VMS (version R450 and greater) |
| DVM | DVM R600.1 SP1 |
| HUS | HUS 5.1 |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
