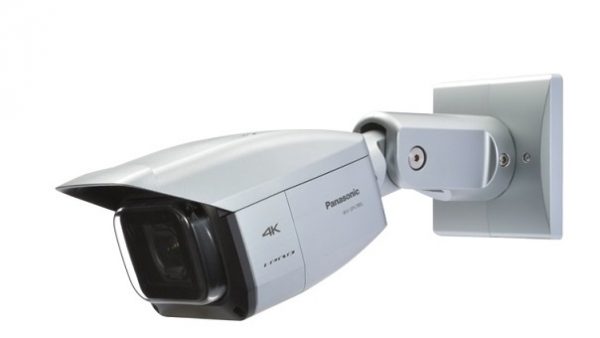

Camera IP hồng ngoại 8.0 Megapixel PANASONIC WV-SPV781L
– Độ phân giải camera ip: 8.0 Megapixel.
Camera IP hồng ngoại 8.0 Megapixel PANASONIC WV-SPV781L
– Cảm biến hình ảnh: 1/1.7 type MOS image sensor.
– Độ phân giải camera ip: 8.0 Megapixel.
– Tốc độ khung hình: Lên đến 30 fps.
– Ống kính: 4.2 mm – 25.2 mm.
– Độ nhạy sáng tối thiểu: Color: 0.3 lx, BW: 0.04 lx; B/W: 0.0 lux (with IR LED on).
– Tầm quan sát hồng ngoại: 30 mét.
– Chuẩn nén hình ảnh: H.264/JPEG.
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nhiệt độ hoạt động: -45°C to 50°C.
– Nguồn điện:
+ DC12V: 1050mA/ Approx. 12.6W.
+ PoE (IEEE802.3af compliant)/PoE DC48V: 265mA/Approx. 12.95W (Class 0 device).
Đặc tính kỹ thuật
| Model | WV-SPV781L |
| Camera | |
| Image Sensor | 1/1.7 type MOS image sensor |
| Scanning Mode | Progressive scan |
| Scanning Area | 7.40 mm (H) x 5.55 mm (V) {9/32 inches (H) x 7/32 inches (V)} |
| Minimum Illumination | Color: 0.3 lx, BW: 0.04 lx, BW (with IR LED): 0 lx (F1.6, Maximum shutter: Off (1/30s), Gain: High), Color: 0.02 lx, BW 0.003 lx (F1.6, Maximum shutter: Max. 16/30s, AGC: High) |
| IR LED Light | Off/ Auto (High/ Mid/ Low) |
| IR LED irradiation distance | Approx. 30 m {98.43 feet} at IR LED: Auto (High) |
| White Balance | ATW1 (2,700 – 6,000 K) /ATW2 (2,000 – 6,000 K) /AWC (2,000 – 10,000 K) |
| Light Control Mode | Outdoor scene/ Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ Fix shutter |
| Maximum shutter | max. 1/1000s, max. 1/500s, max. 1/250s, max. 1/120s, max. 1/100s, max. 2/120s, max. 2/100s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s |
| Shutter Speed | Off(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Wide Dynamic Range | On/ Off |
| Adaptive Black Stretch | On/ Off (only when Wide dynamic range) |
| Fog compensation | On/ Off (only when Wide dynamic range/ Adaptive black stretch: Off) |
| High light compensation (HLC) | On/ Off (only when Wide Dynamic Range/ Back light compensation (BLC): Off) |
| Gain (AGC) | On (High)/ On (Mid)/ On (Low)/ Off |
| Day/Night (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Digital Noise Reduction | High/ Low |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Privacy Zone | On/ Off (up to 8 zones available) |
| VIQS | On/ Off (Max. 8 locations) |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Focus Adjustment | ABF/ MANUAL (Html only) |
| Lens | |
| Vari Focal Length | 4.2 mm – 25.2 mm {5/32 inches – 1 inch} |
| Angular Field of View | – [16 : 9 mode] Horizontal : 17 ° (TELE) – 97 ° (WIDE) Vertical : 9.4 ° (TELE) – 55 ° (WIDE) ‘- [4 : 3 mode] Horizontal : 18 ° (TELE) – 101 ° (WIDE) Vertical : 13 ° (TELE) – 76 ° (WIDE) |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 3.3 (TELE) |
| Focusing Range | 1.0 m – ∞ |
| Browser GUI | |
| Cropping | H.264(1) Ch1 – Ch4 Up to 4 image capture areas can be specified. *only when Image capture mode : Cropping [16:9] (30fps mode) |
| Camera Control | Brightness, AUX On/ Off |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. |
| Digital Zoom | 1x, 2x, 4x controlled by browser GUI |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
| Alarm Control | Reset |
| One Shot Capture | A still picture will be displayed on a newly opened window. |
| Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
| SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory) error logs |
| Supported OS | Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista® |
| Supported Browser | Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit) |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Image Resolution | – 8 Mega pixel [16 : 9] (30 fps mode)* + H.264(1): 3,840 x 2,160, up to 30 fps + JPEG(2): 640 x 360 * ‘H.264(2)’ and ‘JPEG(1)’ can not be selected. |
| – 8 Megapixel [16 : 9] (15 fps mode) + H.264(1): 3,840 x 2,160, up to 15 fps + H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). JPEG(2): 640 x 360 |
|
| – 12 Megapixel [4 : 3] (15 fps mode) + H.264(1): 4,000 x 3,000, up to 15 fps + H.264(2): 640 x 480 / 320 x 240, up to 5 fps + JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). + JPEG(2): 640 x 480 |
|
| – 5 Megapixel [4 : 3] (30 fps mode) + H.264(1): 2,560 x 1,920/ 2,048 x 1,536/ 1,600 x 1,200/ 1,280 x 960/ 800 x 600, up to 30 fps + H.264(2): 1,280 x 960/ 800 x 600/ 640 x 480/ 320 x 240, up to 30 fps + JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). + JPEG(2): 640 x 480 |
|
| – 4 Megapixel [16 : 9] (30 fps mode)* + H.264(1): 2,560 x 1,440/ 1,920 x 1,080/ 1,280 x 720, up to 30 fps + H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + H.264(3): 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + H.264(4): 640 x 360, up to 30 fps + JPEG(2): 640 x 360 * ‘JPEG(1)’ can not be selected. |
|
| – Cropping [16 : 9] (30 fps mode) H.264(1): Ch1 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch2 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch3 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch4 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/320 x 180, up to 30 fps JPEG(1): Enables the setting of the resolution in the same way as for H.264 (2) or JPEG (2). JPEG(2): 640 x 360 |
|
| H.264 | – Transmission priority: Constant bit rate/ Variable bit rate/ Frame rate/ Best effort/ Advanced VBR – Frame Rate + 1/3/5*/7.5*/10*/12*/15*/ 20*/30*fps * The frame rate is limited to ‘bit rate’. When a value with an asterisk (*) is selected, the actual frame rate may be lower than the value selected. – Bit Rate/Client: 64/128/256/384/512/768/1,024/1,536/2,048/3,072/ 4,096/6,144/ 8,192/10,240/ 12,288/14,336/ 16,384/20,480 /24,576/30,720/40,960 kbps * The available range of the H.264 bit rate varies depending on the setting selected for “image capture size” – Image Quality: Low / Normal / Fine 0 Super Fine / 1 Fine / 2 / 3 / 4 / 5 Normal / 6 / 7 / 8 / 9 Low |
| JPEG | – Image Quality: 10 steps – Refresh Interval: 0.1 fps – 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.) – Transmission Type: Pull/ Push |
| Audio Compression | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps/ AAC-LC*4 64 kbps/ 96 kbps/ 128 kbps |
| Audio transmission/ reception | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| Cellular Phone Compatibility | JPEG image, AUX control (by access level) |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDXC/SDHC/SD memory card: 50,000 logs |
| Schedule | Alarm/ VMD/ Access permission/ H.264 recording/ Scene file/ FTP periodic image transmission |
| Input/Output | |
| Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, NTSC/ PAL composite, RCA jack |
| Microphone/Line Input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) – For microphone input: Recommended applicable microphone: Plug-in power type Supply voltage: 2.5 V ±0.5 V Recommended sensitivity of microphone: –48 dB±3 dB (0 dB=1 V/Pa, 1 kHz) – For line input: Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack Output impedance: Approx. 600 Ω (unbalanced) / Output level: –20 dBV Can be used as the monitor output by switching the audio/monitor output plug. |
| External I/O Terminals | ALARM IN1 (DAY/NIGHT IN), ALARM IN2 (ALARM OUT), ALARM IN3 (AUX OUT, DAY/NIGHT OUT) |
| Input/Output | |
| Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
| Audio input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) |
| External I/O Terminals | ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input), ALARM IN2 (Alarm input 2/ ALARM OUT), ALARM IN3(Alarm input 3/ AUX OUT) (x1 for each) |
| General | |
| Safety | UL (UL60950-1, UL60950-22), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55023 ClassB, EN55022 ClassB, EN55024 |
| Power Source and Power Consumption | DC12V: 1050 mA/ Approx. 12.6 W PoE (IEEE802.3af compliant)/ PoE DC48V : 265 mA/ Approx. 12.95W (Class 0 device) |
| Ambient Operating Temperature | –45 °C to +50 °C {–49 °F to 122 °F} |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Impact Protection | Compliant with IK10 (IEC 62262) |
| Water and Dust Resistance | Main body: IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant |
| Dimensions | When directly mounting the camera to a ceiling or wall 131 mm {5-5/32 inches} (W), 130 mm {5-1/8 inches} (H), 380 mm {1ft 2-31/32 inches} (D) When using the adapter box 133 mm {5-1/4 inches} (W), 133 mm {5-1/4 inches} (H), 420 mm {1ft 4-17/32 inches} (D) |
| Mass (approx.) | When directly mounting the camera to a ceiling or wall: Approx. 2.6 kg {5.73 lbs} When using the adapter box: Approx. 3.1 kg {6.82 lbs} |
| Finish | Main body: Aluminum die cast or resin, metallic silver Transparent section of front cover: Polycarbonate resin, Clear (with rain wash coating) |
– Xuất xứ: Trung Quốc.
– Bảo hành: 12 tháng.
