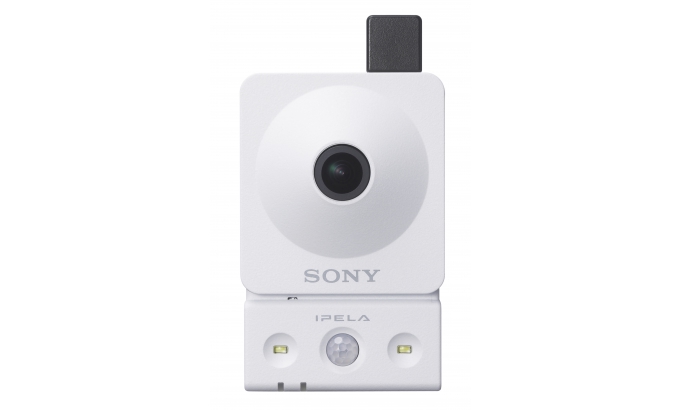

Camera IP không dây HD 1.3 Megapixel SONY SNC-CX600W

Camera quan sát

Image Sensor

1/4-type progressive scan Exmor CMOS sensor

Number of Effective Pixels

Approx. 1.3 Megapixels

Minimum Illumination (50 IRE)

Color: 1.0 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps)

Minimum Illumination (30 IRE)

Color: 0.5 lx (F2.0, VE OFF, AGC MAX, 1/30 s, 30 fps)

Dynamic Range

More than 60 dB

Gain

Auto

Shutter Speed

1/1 s to 1/10,000 s

Exposure Control

Exposure compensation, AGC, Shutter speed

White Balance

ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual

Lens

Fixed Lens

Horizontal Viewing Angle

120°

Vertical Viewing Angle

64.0°

Focal Length

f = 1.83 mm

F-Number

F2.0

Minimum Object Distance

500 mm

White-light LED Illuminator

Yes

LED Working Distance

3 m

Camera Features

Wide-D

View-DR LT-C

Tone Correction

VE (VE)

Noise Reduction

XDNR

Image Stabilizer

Yes

Picture Mode

Yes

Privacy Masking (Number)

20

Privacy Masking (Shape)

Quadrangle formed by any four corner points

Privacy Masking (Color/Effect)

Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic

Edge Storage

Yes

Voice Alert

Yes

Superimpose Number

3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for logo marks

Superimpose Language

English

Menu Language

English, Japanese, Chinese (simplified), Chinese (Traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai

Smartphone viewer

Yes

Video

Resolution

1280 x 720, 1024 x 576, 720 x 576 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 180 (H.264, JPEG)

Compression Format

H.264 (High/Main/Baseline Profile), JPEG

Maximum Frame Rate

H.264: 30 fps (1280 x 720)

JPEG: 30 fps (1280 x 720)

Bitrate Compression Mode

CBR/VBR (selectable)

Range of Bit Rate Setting

64 Kbps to 8 Mbps

Solid PTZ

Yes

Bandwidth Control

JEPG

Multi Streaming Capability

Triple Streaming

Number of Clients

5

Intelligent Video/Audio Analytics

Analytics Architecture

DEPA Advanced

Intelligent Motion Detection

Yes

Face Detection

Yes

Tamper Alarm

Yes

Scene Analytics

Passing, Appearance, Left Object Detection, Removed Object Detection

Audio

Compression Format

G.711/G.726/AAC (16 kHz, 48 kHz)

System Requirements

Operating System

Windows XP (32 bit) Professional Edition

Windows Vista (32 bit) Ultimate, Business Edition

Windows 7 (32/64 bit) Ultimate, Professional Edition

Windows 8 Pro (32/64 bit)

Processor

Intel Core2 CPU 6420 2.13 GHz or higher

Memory

2 GB or more

Web Browser

Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver 10.0

Firefox Ver. 19.02 (plug-in free viewer only)

Safari Ver. 5.1 (plug-in free viewer only)

Google Chrome Ver. 25.0 (plug-in free viewer only)

Network

Protocols

IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL *SSM (Source Specific Multimedia) is supported.

QoS

DSCP, Wi-Fi Multimedia

Multicast Streaming Support

Yes

ONVIF Conformance

Profile S

Wireless Network

Yes(IEEE802.11b/g/n)

Wi-Fi Certified

Yes

Wi-Fi Protected Setup (WPS)

Yes

Authenticatoin

Wireless: No, Wired:IEEE802.1X

Interface

Microphone Input

Built-in microphone

Line Output

Built-in speaker

Network Port

10BASE-T/100BASE-TX (RJ-45)

Card Slots

micro-SD

Confirmed SD Card Type

SDHC (no support SDXC)

General

Power Requirements

DC　5V

Power Consumption

5.0 W max.

Dimensions (W x H x D

Approx. 61 mm(w) ｘ 95 mm(H) x 41 mm(D)

Mass

Approx. 110 g

External Material

PC (Polycarbonate)

External Color

White

Fire Retardant

UL94HB or higher

Safety Regulations

JATE, UL2044, IEC60950-1, GB4943.1, VCCI Class B, FCC Class B, IC Class B, EN55022 (Class B)+EN50130-4, EN55022 (Class B)+EN55024, EN60950-1, AS/NZS CISPR22 (Class B), RCM, EMC-TR(CU-TR), MSIP
