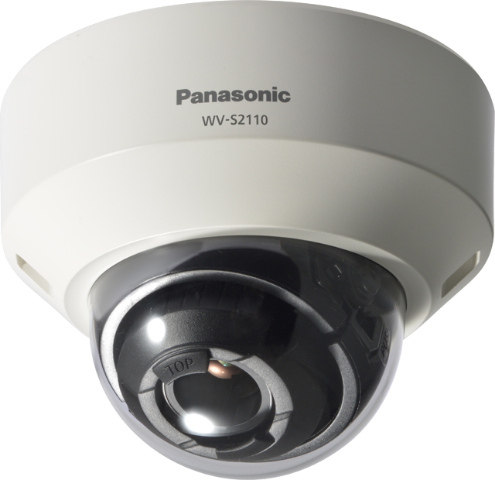

Camera IP Panasonic WV-S2110 – IP Camera / Network Camera
HD Indoor Dome Network Camera
HD / 1,280 x 720 60 fps H.265 Network Camera featuring Super Dynamic
This HD (1,280 x 720) Fixed Dome Network Camera is based on the concept of “i-PRO EXTREME”.
• Extreme Super Dynamic technologies deliver 144 dB wide dynamic range.
• Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility.
• High sensitivity with Day/Night (Electrical) function : 0.008 lx (Color), 0.004 lx (B/W) at F1.6
• H.265 compression and Smart coding technology realize high image quality streaming at low bit rates.
• Intelligent Face Compression provides high picture quality at “Face best shot area” while reducing other non-important areas to save the network bandwidth and the disk space of recorder.
• Encryption and alteration detection functions enhanced the security.
• The Easy Kitting Package makes setting camera easy.
|
Indoor / Outdoor
|
Indoor
|
|
|---|---|---|
|
Image sensor
|
1/3 MOS
|
|
|
Min. Illumination Color (lx)
|
0.008
|
|
|
Min. Illumination B/W (lx)
|
0.007
|
|
|
Maximum Resolution
|
HD (720p / 1,280x 960)
|
|
|
Maximum FPS
|
60
|
|
|
Super Dynamic
|
Yes
|
|
|
Image compensation
|
Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
|
|
|
Color/BW
|
Electrical
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
ABF (Auto back focus)
|
|
|
IR LED
|
–
|
|
|
Image Stabilizer
|
Yes
|
|
|
Corridor Mode
|
Yes
|
|
|
Privacy Zone
|
8
|
|
|
iA (Intelligent Auto)
|
Yes
|
|
|
Intelligent VMD (i-VMD)
|
Type4
|
|
|
Focal length
|
f=2.8-10mm, {1/8 – 13/32 inches}, F1.6
|
|
|
Zoom ratio
|
3.6x
|
|
|
Angular field of view (16:9)
|
H: 30-110 deg. V: 17-59 deg.
|
|
|
Angular field of view (4:3)
|
H: 25-90 deg. V: 19-66 deg.
|
|
|
Panning Range
|
-240 – +120 deg.
|
|
|
Tilting Range
|
-85 – +85 deg.
|
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
|
Video Codec
|
H.265, H.264, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
Yes
|
|
|
Audio Support
|
Yes
|
|
|
Built-in microphone
|
Yes
|
|
|
Microphone/Line Input
|
–
|
|
|
Audio Output
|
–
|
|
|
SD memory Card Slot
|
–
|
|
|
External I/O Terminals
|
–
|
|
|
Ambient Operating Humidity
|
10-90
|
|
|
Vandal Resistant
|
–
|
|
|
Water and Dust Resistance
|
–
|
|
|
ClearSight Coating / Rain Wash Coating
|
–
|
|
|
Dehumidification device
|
–
|
|
|
Temperature (degree, Celsius)
|
MAX |
50
|
| MIN |
-10
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
122
|
| MIN |
14
|
|
|
Power Source
|
PoE
|
|
|
SSL device certificate
|
Yes
|
|
|
ONVIF Profile
|
S, T
|
|
