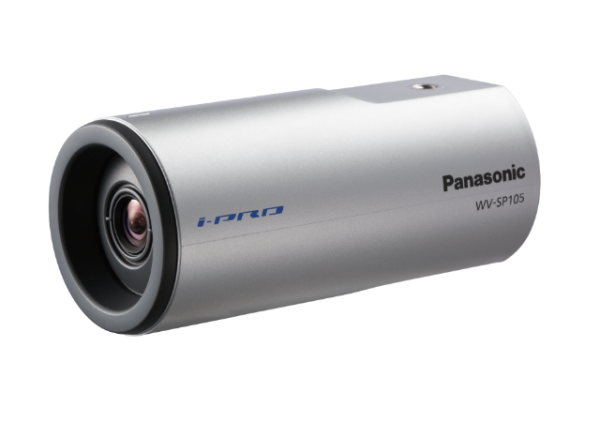

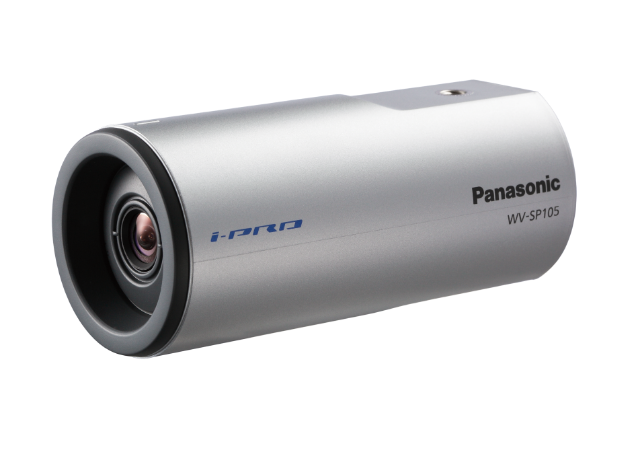

Camera IP Panasonic WV-SP105
HD Network Camera
• 720p HD images up to 30 fps
• Progressive scan 1.3 Megapixel MOS Sensor
• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size
• 2x extra zoom under VGA resolution
• High sensitivity : 0.8 lx (Color), 0.4 lx (B/W) at F2.2 / 0.05 lx (Color), 0.03 lx (B/W) at F2.2 (Wide) with Sens Up 16x
• Dual H.264 and JPEG simultaneous stream output
• Supports Power over Ethernet (PoE) IEEE 802.3af
|
Indoor / Outdoor
|
Indoor
|
|
|---|---|---|
|
Image sensor
|
1/3 CMOS
|
|
|
Min. Illumination Color (lx)
|
0.8
|
|
|
Min. Illumination B/W (lx)
|
0.4
|
|
|
Maximum Resolution
|
HD (720p / 1,280x 960)
|
|
|
Maximum FPS
|
30
|
|
|
Super Dynamic
|
–
|
|
|
Image compensation
|
Adaptive Black Stretch, Digital noise reduction
|
|
|
Color/BW
|
Electrical
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
–
|
|
|
IR LED
|
–
|
|
|
Image Stabilizer
|
–
|
|
|
Corridor Mode
|
–
|
|
|
Privacy Zone
|
2
|
|
|
iA (Intelligent Auto)
|
–
|
|
|
Intelligent VMD (i-VMD)
|
Type1
|
|
|
Focal length
|
f=3.54mm, F2.2
|
|
|
Zoom ratio
|
–
|
|
|
Angular field of view (16:9)
|
–
|
|
|
Angular field of view (4:3)
|
H: 70.3 deg. V: 55.4 deg.
|
|
|
Panning Range
|
–
|
|
|
Tilting Range
|
–
|
|
|
Network IF
|
10Base-T, 100Base-TX
|
|
|
Video Codec
|
H.264, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
–
|
|
|
Audio Support
|
–
|
|
|
Built-in microphone
|
–
|
|
|
Microphone/Line Input
|
–
|
|
|
Audio Output
|
–
|
|
|
SD memory Card Slot
|
–
|
|
|
External I/O Terminals
|
–
|
|
|
Ambient Operating Humidity
|
Less than 90
|
|
|
Vandal Resistant
|
–
|
|
|
Water and Dust Resistance
|
–
|
|
|
ClearSight Coating / Rain Wash Coating
|
–
|
|
|
Dehumidification device
|
–
|
|
|
Temperature (degree, Celsius)
|
MAX |
40
|
| MIN |
0
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
104
|
| MIN |
32
|
|
|
Power Source
|
PoE, 12V DC
|
|
|
SSL device certificate
|
–
|
|
|
ONVIF Profile
|
S
|
|
