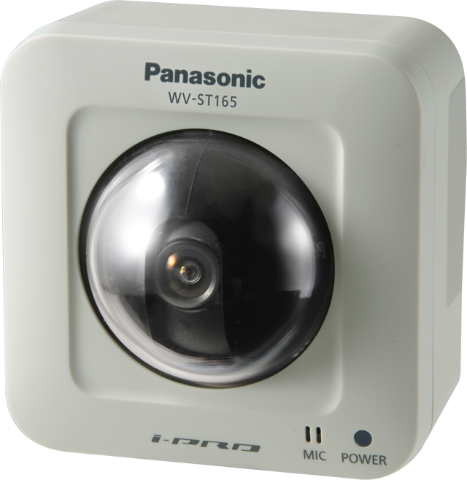

Camera IP Panasonic WV-ST165
Pan-tilting HD Network Camera
HD / 1,280 x 960 H.264 Pan-tilting Network Camera
• 720p HD images up to 30 fps
• 1.3 Megapixel high sensitivity MOS Sensor
• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size
• Panning/tilting and Preset Map Shot function realizes wide range monitoring.
• Face Wide Dynamic Range
• High sensitivity with Day & Night (electrical) function: 0.6 lx (Color), 0.5 lx(B/W) at F2.2
• H.264 (High profile) dual stream and JPEG output
• Power over Ethernet (PoE) IEEE 802.3af
|
Indoor / Outdoor
|
Indoor
|
|
|---|---|---|
|
Image sensor
|
1/4 MOS
|
|
|
Min. Illumination Color (lx)
|
0.6
|
|
|
Min. Illumination B/W (lx)
|
0.5
|
|
|
Maximum Resolution
|
HD (720p / 1,280x 960)
|
|
|
Maximum FPS
|
30
|
|
|
Super Dynamic
|
–
|
|
|
Image compensation
|
Adaptive Black Stretch, Digital noise reduction
|
|
|
Color/BW
|
Electrical
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
–
|
|
|
IR LED
|
–
|
|
|
Image Stabilizer
|
–
|
|
|
Corridor Mode
|
–
|
|
|
Privacy Zone
|
2
|
|
|
iA (Intelligent Auto)
|
–
|
|
|
Intelligent VMD (i-VMD)
|
Type1
|
|
|
Focal length
|
f=1.95mm, F2.2
|
|
|
Zoom ratio
|
–
|
|
|
Angular field of view (16:9)
|
H: 85 deg. V: 53 deg.
|
|
|
Angular field of view (4:3)
|
H: 85 deg. V: 68 deg.
|
|
|
Panning Range
|
-47.5 – +47.5 deg.
|
|
|
Tilting Range
|
-45 – +10 deg.
|
|
|
Network IF
|
100Base-TX, 1000Base-T, RJ45 connector
|
|
|
Video Codec
|
H.264, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Advanced variable bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
–
|
|
|
Audio Support
|
Yes
|
|
|
Built-in microphone
|
Yes
|
|
|
Microphone/Line Input
|
Yes
|
|
|
Audio Output
|
Yes
|
|
|
SD memory Card Slot
|
SDXC
|
|
|
External I/O Terminals
|
Yes
|
|
|
Ambient Operating Humidity
|
Less than 90
|
|
|
Vandal Resistant
|
–
|
|
|
Water and Dust Resistance
|
–
|
|
|
ClearSight Coating / Rain Wash Coating
|
–
|
|
|
Dehumidification device
|
–
|
|
|
Temperature (degree, Celsius)
|
MAX |
40
|
| MIN |
0
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
104
|
| MIN |
32
|
|
|
Power Source
|
PoE, 12V DC
|
|
|
SSL device certificate
|
–
|
|
|
ONVIF Profile
|
S
|
|
