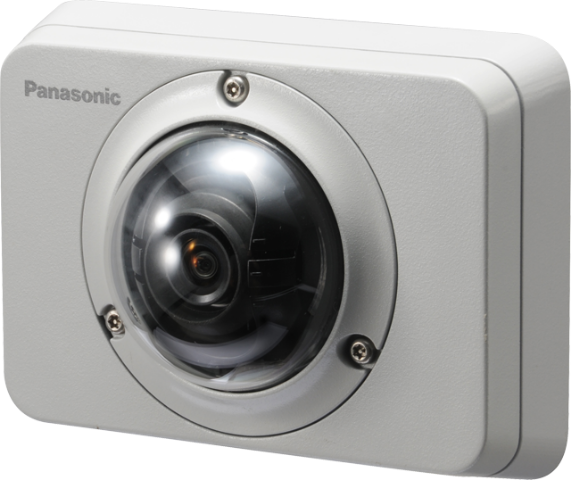

Camera IP Panasonic WV-SW115 – IP Camera / Network Camera
Super Dynamic HD Vandal Resistant Wall Mount Network Camera
HD / 1,280 x 960 H.264 Vandal Resistant Network Camera featuring Super Dynamic
• 720p HD images up to 30 fps
• 1.3 Megapixel high sensitivity MOS Sensor
• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size
• Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras.
• Face Super Dynamic technology ensures clear face image.
• High sensitivity with Day & Night (Electrical) function: 0.8 lx (Color), 0.6 lx (B/W) at F2.2
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.
• SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
• Supports SSL, DDNS (viewnetcam, RFC2136)
• “Railway applications – Electronics equipment used on rolling stock” compatible with EN50155
• Wide coverage (Horizontal: 104 °, Vertical: 85 °)
• IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.
• Vandal resistant mechanism for high reliability
|
Indoor / Outdoor
|
Outdoor
|
|
|---|---|---|
|
Image sensor
|
1/3 MOS
|
|
|
Min. Illumination Color (lx)
|
0.8
|
|
|
Min. Illumination B/W (lx)
|
0.6
|
|
|
Maximum Resolution
|
HD (720p / 1,280x 960)
|
|
|
Maximum FPS
|
30
|
|
|
Super Dynamic
|
Yes
|
|
|
Image compensation
|
Adaptive Black Stretch, Back light compensation (BLC), Digital noise reduction
|
|
|
Color/BW
|
Electrical
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
–
|
|
|
IR LED
|
–
|
|
|
Image Stabilizer
|
–
|
|
|
Corridor Mode
|
–
|
|
|
Privacy Zone
|
2
|
|
|
iA (Intelligent Auto)
|
–
|
|
|
Intelligent VMD (i-VMD)
|
Type1
|
|
|
Focal length
|
f=1.95mm, F2.2
|
|
|
Zoom ratio
|
–
|
|
|
Angular field of view (16:9)
|
H: 104 deg. V: 68 deg.
|
|
|
Angular field of view (4:3)
|
H: 104 deg. V: 85 deg.
|
|
|
Panning Range
|
-30 – +30 deg.
|
|
|
Tilting Range
|
-30 – +30 deg.
|
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
|
Video Codec
|
H.264, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Advanced variable bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
–
|
|
|
Audio Support
|
–
|
|
|
Built-in microphone
|
–
|
|
|
Microphone/Line Input
|
–
|
|
|
Audio Output
|
–
|
|
|
SD memory Card Slot
|
SDHC
|
|
|
External I/O Terminals
|
–
|
|
|
Ambient Operating Humidity
|
20-90
|
|
|
Vandal Resistant
|
IK10 (IEC62262)
|
|
|
Water and Dust Resistance
|
IP66 (IEC60529), NEMA 4X
|
|
|
ClearSight Coating / Rain Wash Coating
|
–
|
|
|
Dehumidification device
|
–
|
|
|
Temperature (degree, Celsius)
|
MAX |
50
|
| MIN |
-30
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
122
|
| MIN |
-22
|
|
|
Power Source
|
PoE
|
|
|
SSL device certificate
|
–
|
|
|
ONVIF Profile
|
S
|
|
