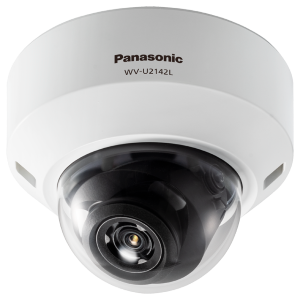

Camera IP Panasonic WV-U2142L – IP Camera / Network Camera
4MP Varifocal Lens Indoor Dome Network Camera
• 4-megapixel images up to 30fps
• 2.5x built-in motorized zoom and motorized focus lens
• iA (intelligent Auto)
• Super Dynamic 102dB
• Color night vision (0.019 to 0.3 lx)
• H.265 Smart Coding
• Corridor mode (90 degrees or 270 degrees in image rotation)
As with the current i-PRO EXTREME Series lineup up to now, it features high compression using H.265 and smart coding, color shooting with color night vision in low-light environments, iA (Intelligent Auto) and super dynamic functions, and can be used for monitoring at night and/or in dark places with lighting, at the entrance of buildings with large differences in illumination, etc.
1. High compression using H.265 and smart coding technology for low bit rate high quality streams.
2. Capability of shooting in color even at night or in low-light environments.
3. Significantly reduces installation time and effort “Easy installation packaging” and adopts electric zoom.
• i-PRO EXTREME U Series
|
Indoor / Outdoor
|
Indoor
|
|
|---|---|---|
|
Image sensor
|
1/2.7 CMOS
|
|
|
Min. Illumination Color (lx)
|
0.3
|
|
|
Min. Illumination B/W (lx)
|
0.12 / 0 (w/IR-LED)
|
|
|
Maximum Resolution
|
4MP (2,560 x 1,440)
|
|
|
Maximum FPS
|
30
|
|
|
Super Dynamic
|
Yes
|
|
|
Image compensation
|
Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
|
|
|
Color/BW
|
ICR
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
Auto Focus
|
|
|
IR LED
|
Yes
|
|
|
Image Stabilizer
|
–
|
|
|
Corridor Mode
|
Yes
|
|
|
Privacy Zone
|
8
|
|
|
iA (Intelligent Auto)
|
Yes
|
|
|
Intelligent VMD (i-VMD)
|
–
|
|
|
Focal length
|
f=2.9 – 7.25 mm {1/8 – 9/32 inches}, F2.0 Motorized
|
|
|
Zoom ratio
|
2.5x (Motorized zoom / Motorized focus)
|
|
|
Angular field of view (16:9)
|
H: 44-102 deg. V: 25-57 deg.
|
|
|
Angular field of view (4:3)
|
–
|
|
|
Panning Range
|
-250 – +110 deg.
|
|
|
Tilting Range
|
-30 – +85 deg.
|
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
|
Video Codec
|
H.265, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
Yes
|
|
|
Audio Support
|
–
|
|
|
Built-in microphone
|
–
|
|
|
Microphone/Line Input
|
–
|
|
|
Audio Output
|
–
|
|
|
SD memory Card Slot
|
microSDXC
|
|
|
External I/O Terminals
|
–
|
|
|
Ambient Operating Humidity
|
10 – 90
|
|
|
Vandal Resistant
|
–
|
|
|
Water and Dust Resistance
|
–
|
|
|
ClearSight Coating / Rain Wash Coating
|
–
|
|
|
Dehumidification device
|
–
|
|
|
Temperature (degree, Celsius)
|
MAX |
50
|
| MIN |
-10
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
122
|
| MIN |
14
|
|
|
Power Source
|
PoE
|
|
|
ONVIF Profile
|
G, T
|
|
